KITO ER2 Series Disassembly And Reassembly Guide

28
Hub
Use a
cylindrical jig
Hammer it gently
with a plastic
hammer
Snap ring
Install after
positioning the hub.
NEW

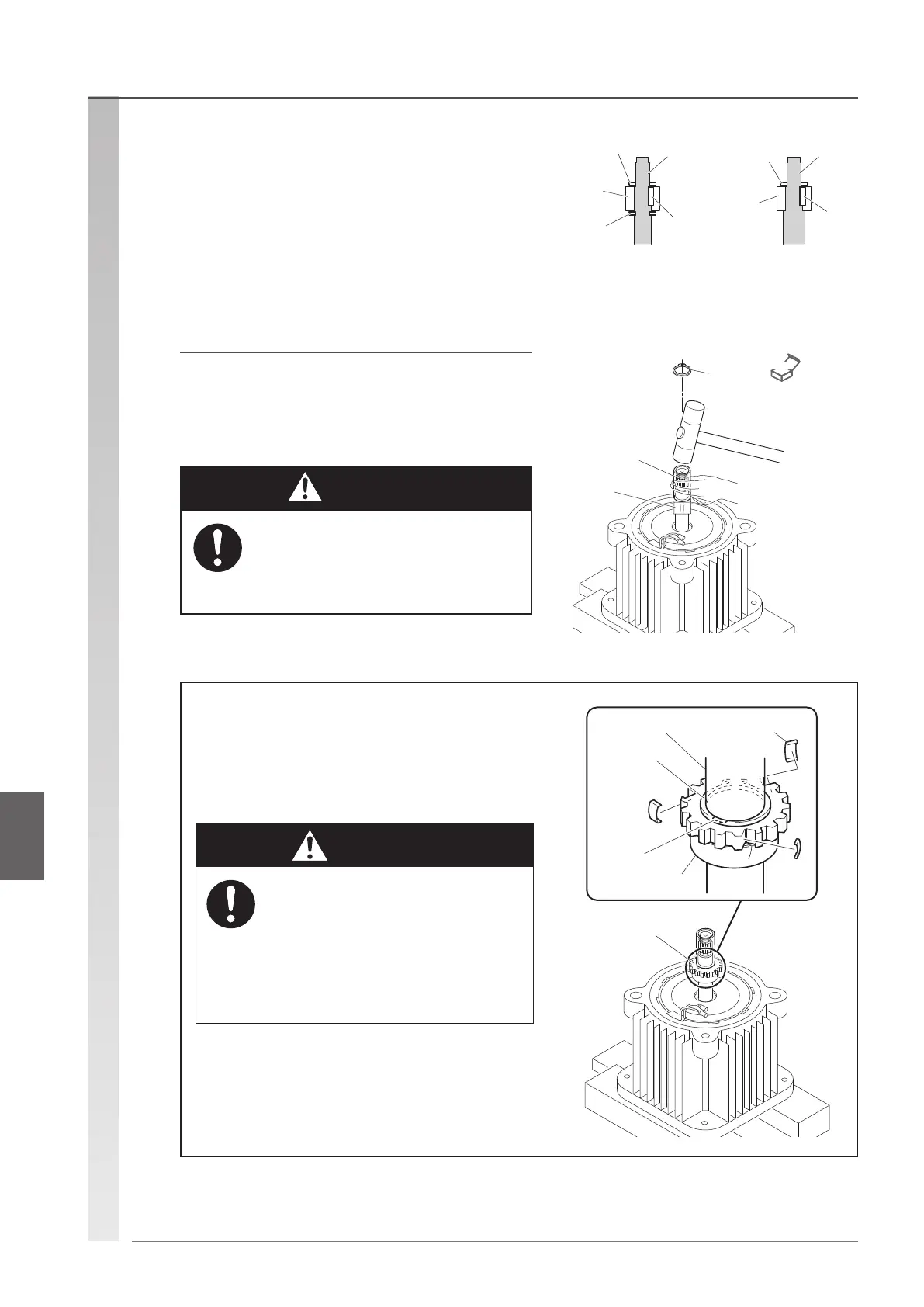

(6) Install the hub to the motor shaft.
•
If it is difcult to insert, hammer it gently with a plastic
hammer.
•
Press down until the slot to which a snap ring is mounted
is visible.
(7) Install a snap ring to the hub top.
•
Make sure that the snap ring rotates smoothly.
• Install the key and snap ring securely.
Failure to follow this instruction may
result in death or severe injury.
Motor
shaft
With snap ring
for hub bottom
Snap ring
Snap ring
(for hub
bottom)
Hub
Hub installation cross-sectional view
Key
Motor
shaft
Without snap ring
for hub bottom
Snap
ring
Hub
Key
Reassembly procedure (continued)

For Spline hub
•
After installing the spline hub to the motor shaft, install
the 3 hub springs to the correct positions as shown to the
right.
Motor shaft
Snap ring
Spline hub
Hub spring
Spline hub
Key slot
Mandatory
Mandatory
• Make sure that the hub spring is
installed to the spline hub correctly.
• Check the shape of the spline hub.
Failure to follow this instruction may
cause abnormal sound, vibration or
damage of property.
Danger
Caution
Reassembly procedure
Assembling the motor and electromagnetic brake

KITO ER2 Series Specifications

General

Control Voltage	24V
Duty Cycle	40% ED
Protection Class	IP55
Temperature Range	-20°C to +40°C
Type	Electric Chain Hoist
Frequency	50/60 Hz
Motor Insulation	Class F
Brake Type	Electromagnetic
Load Chain Grade	Grade 80
Ambient Temperature	-20°C to +40°C
Power Supply	3-phase
Lift Height	3 to 30 meters
Chain Falls	1 or 2
Voltage	200-240V, 380-480V
