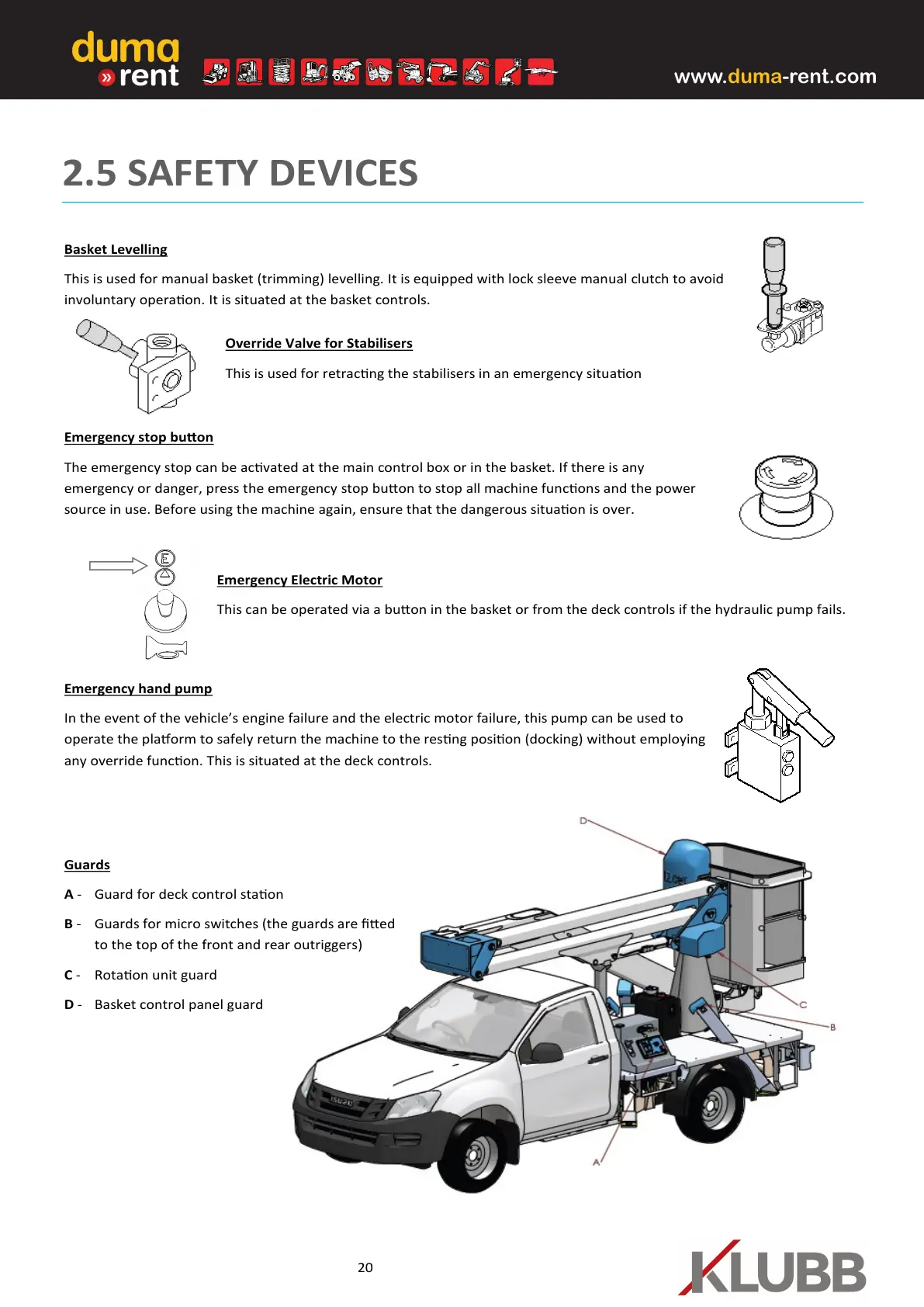

Basket Levelling
This is used for manual basket (trimming) levelling. It is equipped with lock sleeve manual clutch to avoid
involuntary operaon. It is situated at the basket controls.
Guards
A - Guard for deck control staon
B - Guards for micro switches (the guards are ed
to the top of the front and rear outriggers)
C - Rotaon unit guard
D - Basket control panel guard
Emergency stop buon
The emergency stop can be acvated at the main control box or in the basket. If there is any
emergency or danger, press the emergency stop buon to stop all machine funcons and the power
source in use. Before using the machine again, ensure that the dangerous situaon is over.
Override Valve for Stabilisers
This is used for retracng the stabilisers in an emergency situaon
Emergency hand pump
In the event of the vehicle’s engine failure and the electric motor failure, this pump can be used to
operate the plaorm to safely return the machine to the resng posion (docking) without employing
any override funcon. This is situated at the deck controls.
Emergency Electric Motor
This can be operated via a buon in the basket or from the deck controls if the hydraulic pump fails.
2.5 SAFETY DEVICES
