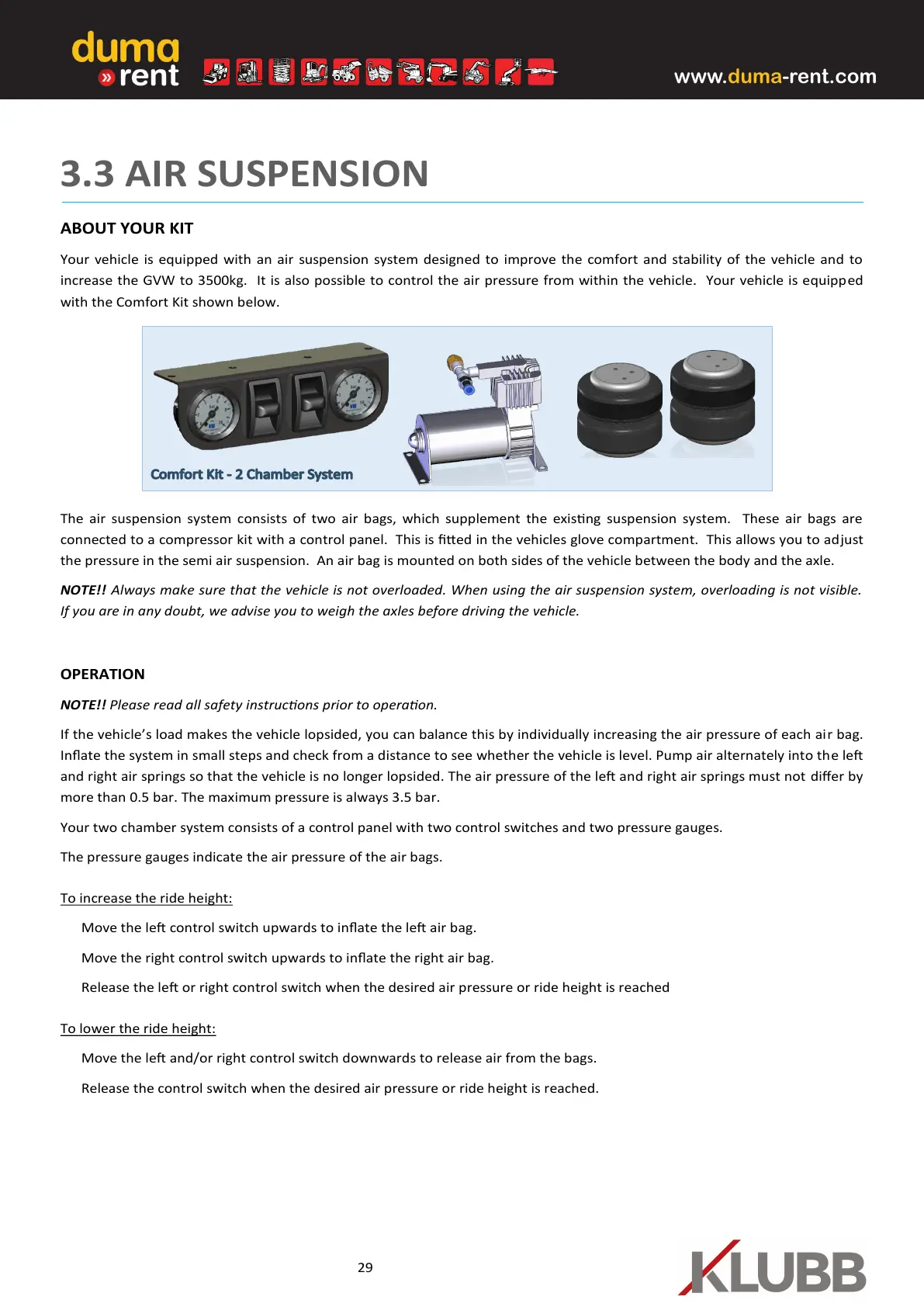

3.3 AIR SUSPENSION
ABOUT YOUR KIT
Your vehicle is equipped with an air suspension system designed to improve the comfort and stability of the vehicle and to
increase the GVW to 3500kg. It is also possible to control the air pressure from within the vehicle. Your vehicle is equipped
with the Comfort Kit shown below.
The air suspension system consists of two air bags, which supplement the exisng suspension system. These air bags are
connected to a compressor kit with a control panel. This is ed in the vehicles glove compartment. This allows you to adjust
the pressure in the semi air suspension. An air bag is mounted on both sides of the vehicle between the body and the axle.
NOTE!! Always make sure that the vehicle is not overloaded. When using the air suspension system, overloading is not visible.
If you are in any doubt, we advise you to weigh the axles before driving the vehicle.
OPERATION
NOTE!! Please read all safety instrucons prior to operaon.
If the vehicle’s load makes the vehicle lopsided, you can balance this by individually increasing the air pressure of each air bag.
Inate the system in small steps and check from a distance to see whether the vehicle is level. Pump air alternately into the le
and right air springs so that the vehicle is no longer lopsided. The air pressure of the le and right air springs must not dier by
more than 0.5 bar. The maximum pressure is always 3.5 bar.
Your two chamber system consists of a control panel with two control switches and two pressure gauges.
The pressure gauges indicate the air pressure of the air bags.
To increase the ride height:
Move the le control switch upwards to inate the le air bag.
Move the right control switch upwards to inate the right air bag.
Release the le or right control switch when the desired air pressure or ride height is reached
To lower the ride height:
Move the le and/or right control switch downwards to release air from the bags.
Release the control switch when the desired air pressure or ride height is reached.
