30
SAFETY INSTRUCTIONS
NOTE!! Modifying the suspension system can seriously damage the air suspension. The vehicle may behave in unexpected
ways, thereby causing dangerous situaons which may result in accidents.
• The maximum air pressure for the system is always 3.5 bar. Make sure that the air bags always have at least the
minimum pressure of 0.5 bar. Without this air pressure, the air bags may be damaged while driving.
• The air pressure of the le and right air bags must not dier by more than 0.5 bar. Never pump too much air into the air
bags. Driving with excessive air pressure in the air bags can damage the vehicle.
• Only use the air suspension system to raise and lower the vehicle when staonary. Before raising or lowering the vehicle,
always secure the vehicle against rolling away and make sure there is no possibility of injury or damage to people and
property.
• Do not depress the brake pedal (if possible) while raising or lowering the vehicle. This is advisable to relieve the brake and
avoid tension in the chassis.
• Always use a jack or hydraulic ramp to change a wheel or carry out servicing work.
• Do not use the air suspension system when raising one or more axles with a jack or hydraulic ramp.
• The air suspension must not be used to li wheels from the ground during servicing work (e.g. to change a wheel)
• Errors and/or faults in the air suspension system can have an undesirable eect on driving stability. This may cause the
vehicle to sway and/or swing.
In case of damage or faults that cannot be reced, contact KLUBB immediately.
If this happens, drive with extra cauon at a much lower speed.
TROUBLESHOOTING
Malfuncons can be diagnosed using the table below. If you cannot correct the fault, contact KLUBB.
MAINTENANCE
The air bags, air tubes and compressor must be checked for operaon, wear, leaks and damage during servicing. The pressure
of the system may fall gradually if it is not used for long periods. To avoid permanent deformaon and damage to the air
springs:
- The vehicle should be supported with axle stands when not in use for long periods of me
- The air bags should be re-inated with compressed air once a week
- Soap soluon, ethanol, methanol and isopropyl alcohol are permied as cleaning agents

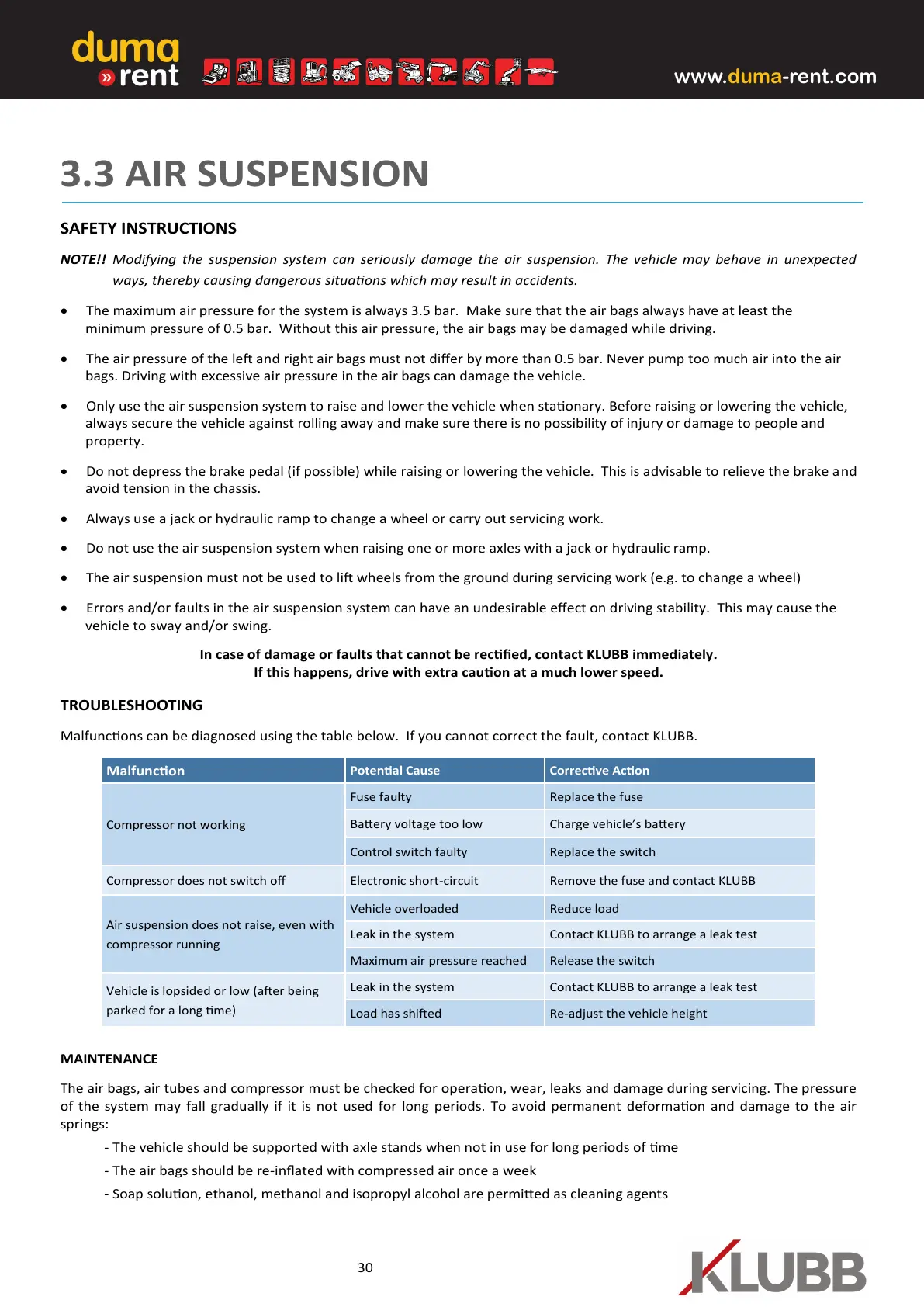

3.3 AIR SUSPENSION
Malfuncon
Potenal Cause Correcve Acon
Compressor not working
Fuse faulty Replace the fuse
Baery voltage too low Charge vehicle’s baery
Control switch faulty Replace the switch
Compressor does not switch o Electronic short-circuit Remove the fuse and contact KLUBB
Air suspension does not raise, even with
compressor running
Vehicle overloaded Reduce load
Leak in the system Contact KLUBB to arrange a leak test
Maximum air pressure reached Release the switch
Vehicle is lopsided or low (aer being
parked for a long me)
Leak in the system Contact KLUBB to arrange a leak test
Load has shied Re-adjust the vehicle height
