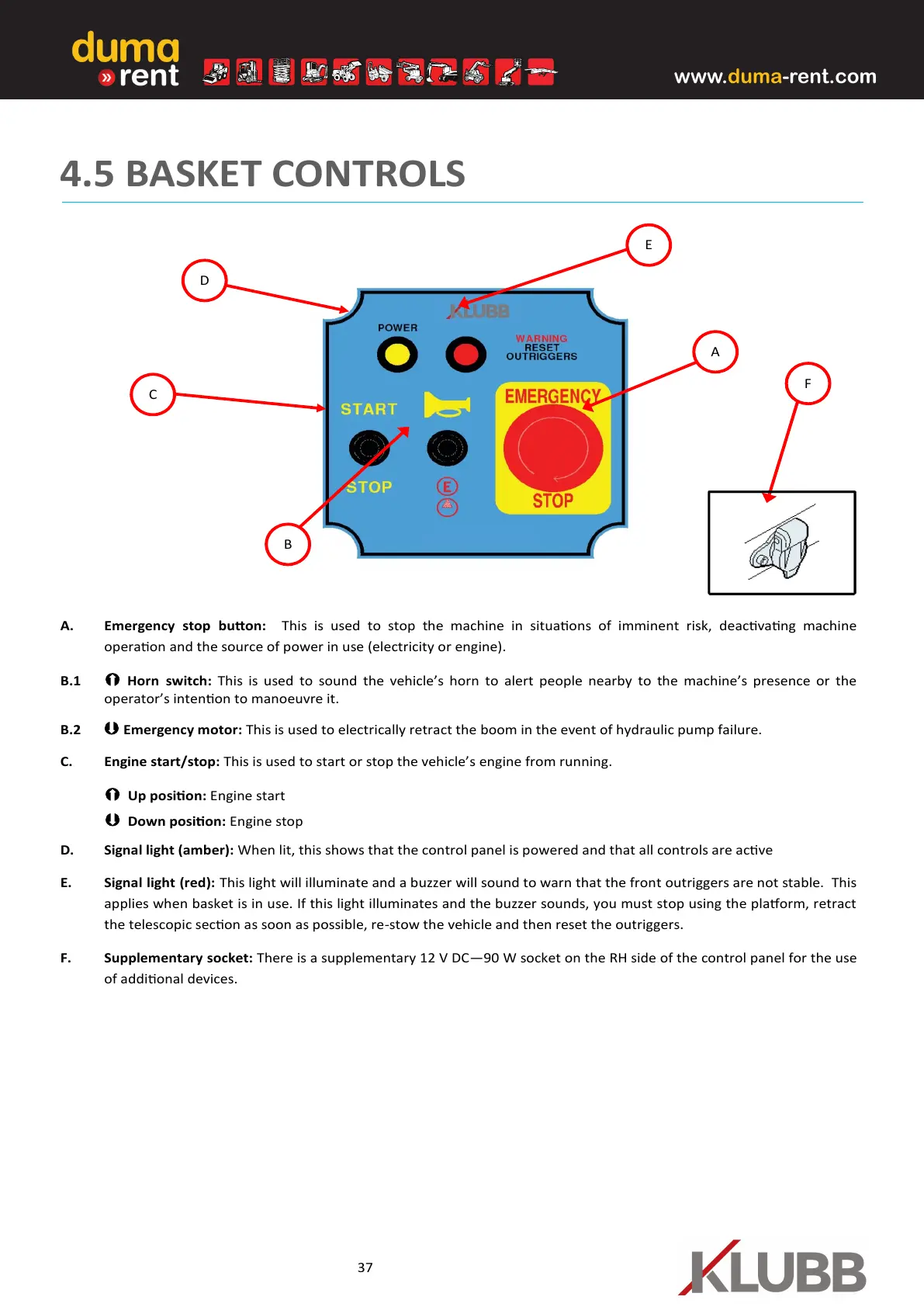

4.5 BASKET CONTROLS
A. Emergency stop buon: This is used to stop the machine in situaons of imminent risk, deacvang machine
operaon and the source of power in use (electricity or engine).
B.1  Horn switch: This is used to sound the vehicle’s horn to alert people nearby to the machine’s presence or the
operator’s intenon to manoeuvre it.
B.2  Emergency motor: This is used to electrically retract the boom in the event of hydraulic pump failure.
C. Engine start/stop: This is used to start or stop the vehicle’s engine from running.
 Up posion: Engine start
 Down posion: Engine stop
D. Signal light (amber): When lit, this shows that the control panel is powered and that all controls are acve
E. Signal light (red): This light will illuminate and a buzzer will sound to warn that the front outriggers are not stable. This
applies when basket is in use. If this light illuminates and the buzzer sounds, you must stop using the plaorm, retract
the telescopic secon as soon as possible, re-stow the vehicle and then reset the outriggers.
F. Supplementary socket: There is a supplementary 12 V DC—90 W socket on the RH side of the control panel for the use
of addional devices.
