KLUBB KAT 42 - Section 4.3: Main Control Box

35
A. Emergency stop buon: This is used to stop the machine in situaons of imminent risk, deacvang machine operaon
and the source of power in use (electricity or engine).
B. Three-posion changeover switch: This is used to set the operaon mode.
Posion (1): This acvates the outrigger controls
Posion (2): This acvates the upper controls (basket) controls
Posion (3): This acvates the lower controls
C. Engine start/stop: This is used to start or stop the vehicles engine.
 Up posion: Engine start
 Down posion: Engine stop
D.1  Horn switch: This is used to sound the vehicle’s horn to alert people nearby to the machine’s presence or the
operator’s intenon to manoeuvre it.
D.2  Emergency pump: This is used to electrically retract the boom in the event of hydraulic pump failure.
Note!! The machine cannot be started from the control panel on the ground if the machine has not been stabilised
(it can only be switched o).
E. Warning outriggers reset light: This light will illuminate and a buzzer will sound to warn that the front outriggers are not
stable when basket is in operaon. If this light illuminates and the buzzer sounds, you must reset the outriggers.
F. Outriggers un-stowed light: When the outriggers are out of the rest posion, this light will illuminate.
G. Signal lights (green): When lit permanently, this shows that the associated outrigger is resng correctly on the ground.
Signal light 1: LH front outrigger
Signal light 2: RH front outrigger
Signal light 3: RH rear outrigger
Signal light 4: LH rear outrigger
If any of these lights are o, it means that the associated outrigger(s) is not resng properly on the ground.
1
C

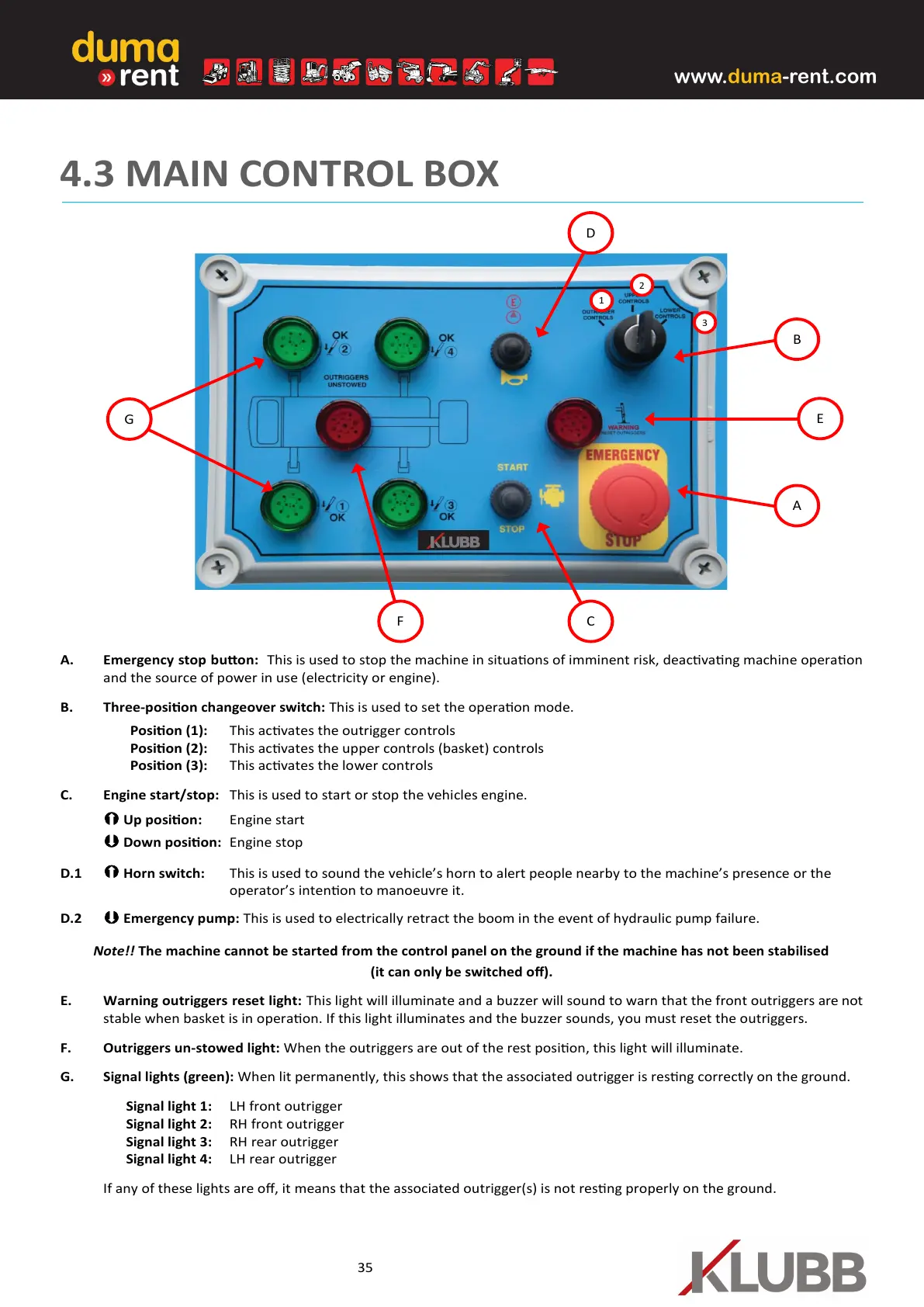

4.3 MAIN CONTROL BOX
B
A
2
3
D
E
F
G
