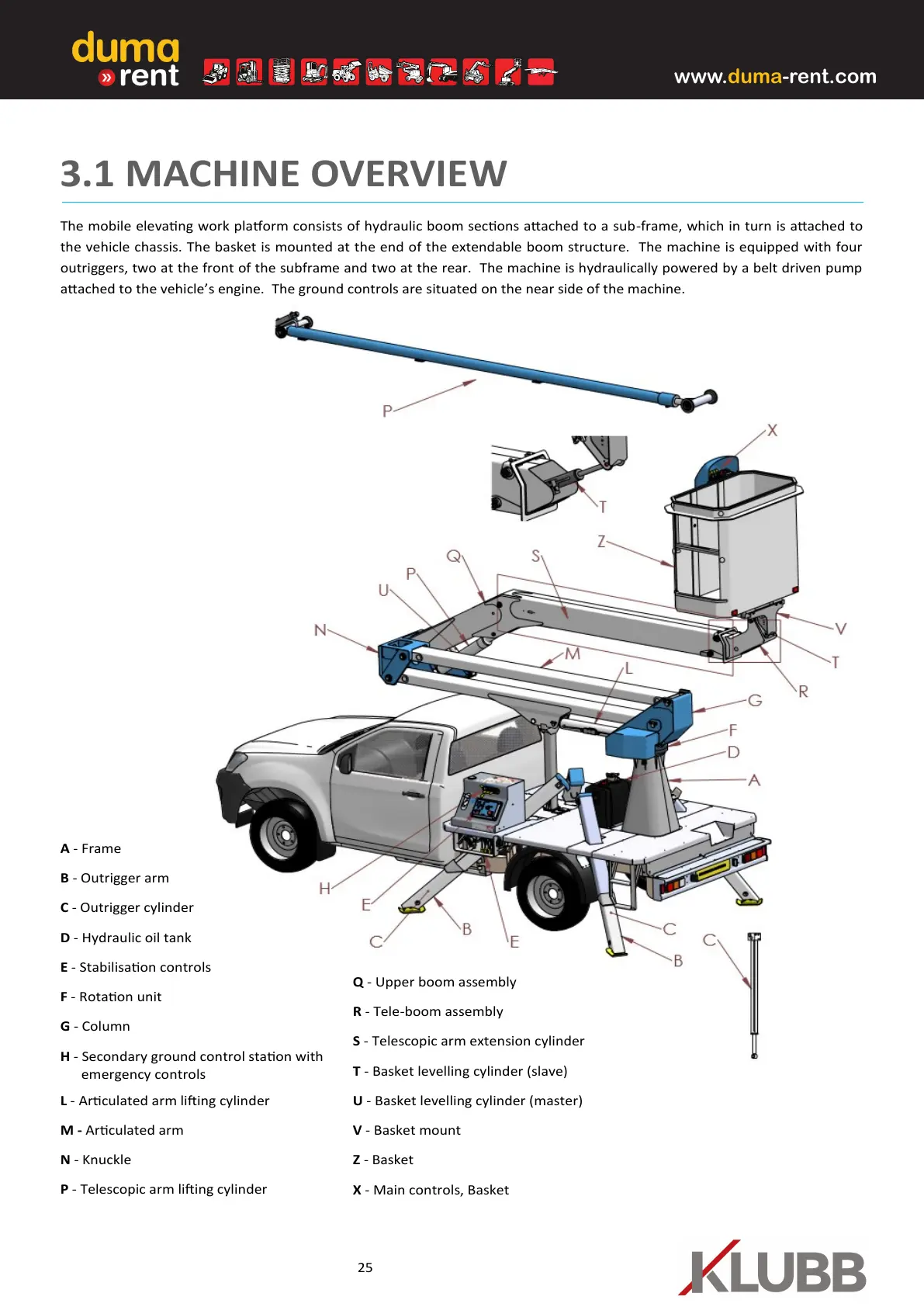

3.1 MACHINE OVERVIEW
The mobile elevang work plaorm consists of hydraulic boom secons aached to a sub-frame, which in turn is aached to
the vehicle chassis. The basket is mounted at the end of the extendable boom structure. The machine is equipped with four
outriggers, two at the front of the subframe and two at the rear. The machine is hydraulically powered by a belt driven pump
aached to the vehicle’s engine. The ground controls are situated on the near side of the machine.
A - Frame
B - Outrigger arm
C - Outrigger cylinder
D - Hydraulic oil tank
E - Stabilisaon controls
F - Rotaon unit
G - Column
H - Secondary ground control staon with
emergency controls
L - Arculated arm liing cylinder
M - Arculated arm
N - Knuckle
P - Telescopic arm liing cylinder
Q - Upper boom assembly
R - Tele-boom assembly
S - Telescopic arm extension cylinder
T - Basket levelling cylinder (slave)
U - Basket levelling cylinder (master)
V - Basket mount
Z - Basket
X - Main controls, Basket
