KLUBB KAT 42 - Section 4.8: Closing the Platform

41

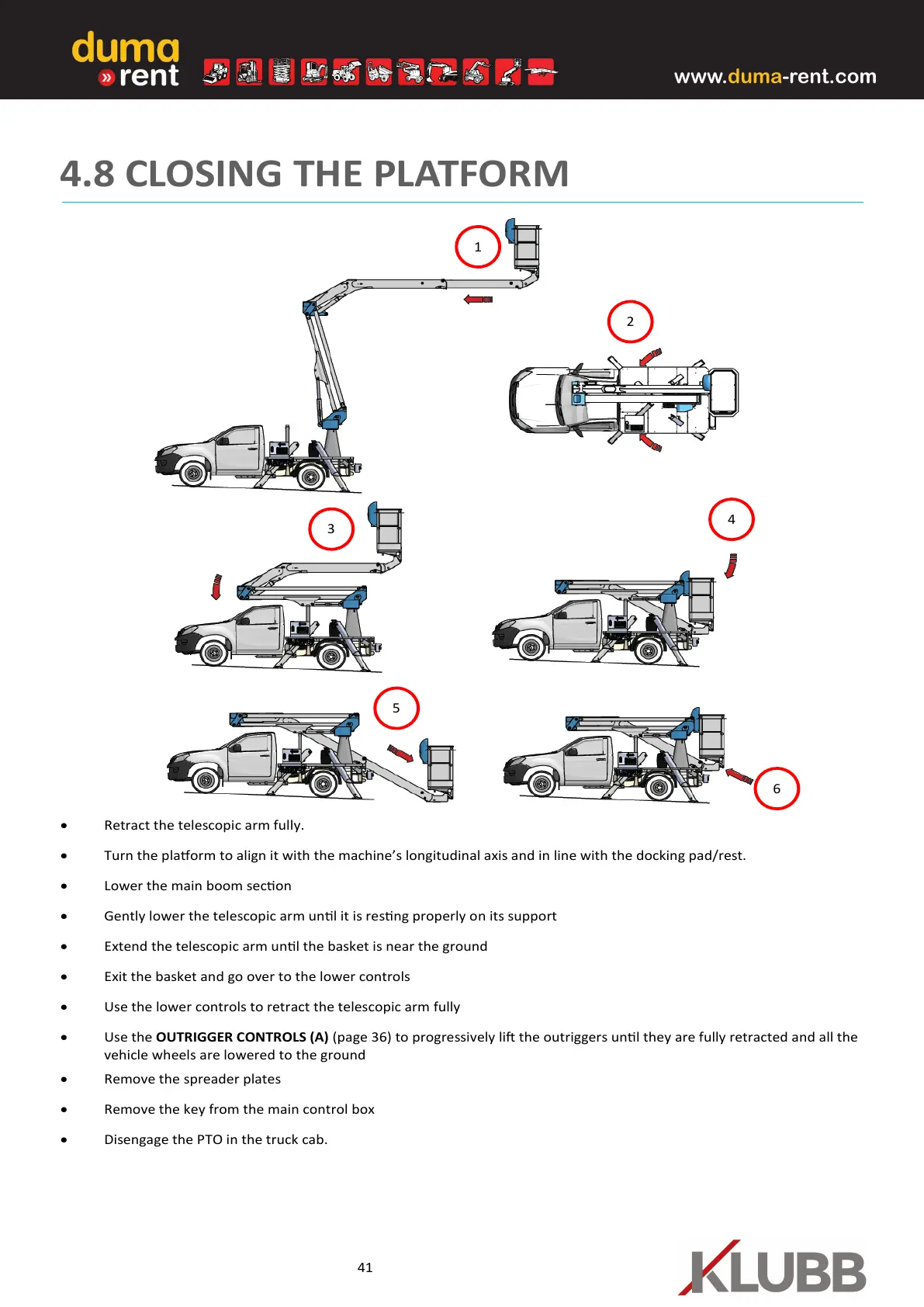

4.8 CLOSING THE PLATFORM
• Retract the telescopic arm fully.
• Turn the plaorm to align it with the machine’s longitudinal axis and in line with the docking pad/rest.
• Lower the main boom secon
• Gently lower the telescopic arm unl it is resng properly on its support
• Extend the telescopic arm unl the basket is near the ground
• Exit the basket and go over to the lower controls
• Use the lower controls to retract the telescopic arm fully
• Use the OUTRIGGER CONTROLS (A) (page 36) to progressively li the outriggers unl they are fully retracted and all the
vehicle wheels are lowered to the ground
• Remove the spreader plates
• Remove the key from the main control box
• Disengage the PTO in the truck cab.
1
2
3
4
5
6
