KLUBB KAT 42 - Section 4.4: Deck Controls

36

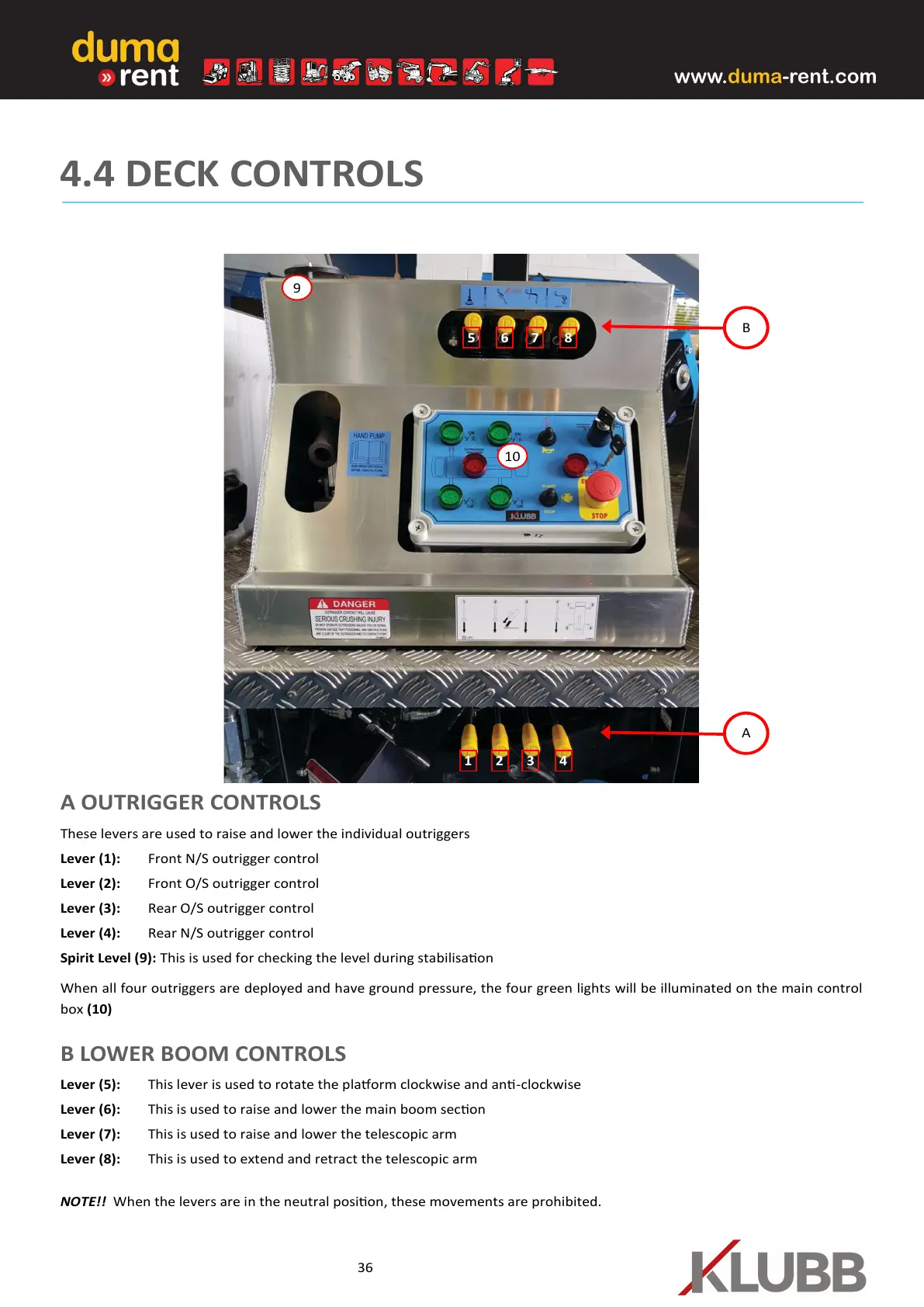

4.4 DECK CONTROLS
A OUTRIGGER CONTROLS
These levers are used to raise and lower the individual outriggers
Lever (1): Front N/S outrigger control
Lever (2): Front O/S outrigger control
Lever (3): Rear O/S outrigger control
Lever (4): Rear N/S outrigger control
Spirit Level (9): This is used for checking the level during stabilisaon
When all four outriggers are deployed and have ground pressure, the four green lights will be illuminated on the main control
box (10)
B LOWER BOOM CONTROLS
Lever (5): This lever is used to rotate the plaorm clockwise and an-clockwise
Lever (6): This is used to raise and lower the main boom secon
Lever (7): This is used to raise and lower the telescopic arm
Lever (8): This is used to extend and retract the telescopic arm
NOTE!! When the levers are in the neutral posion, these movements are prohibited.
A
1 2 3 4
5 6 7 8
9
10
B
