34
NOTE!! If the vehicle is a Euro 5 Specicaon then the Cab Controls will be as follows
1. Signal light (green): When lit, this shows that the control panel is engaged.
2. Signal light (amber): When lit, this shows that the PTO is engaged.
3. Signal light (red): When lit, this shows that one or more outriggers is not in the stowed posion.
4. Signal light (green): When lit, this shows that the boom is fully stowed and safe for driving.
5. Display: This shows the number of hours of operaon undergone by the machine’s electrical system whether the
power sources (engine or electric pump) are on or o.
6. PTO switch: Push buon in, when blue ring light illuminates, the PTO is ready to operate.
7. Beacon switch: Push buon in, when amber ring light illuminates, the beacons are switched on.
8. Work light switch: Push buon in, when green ring light illuminates, the work light is switched on.
Audible Warning Buzzer: This signals the release of the handbrake when the PTO is engaged.

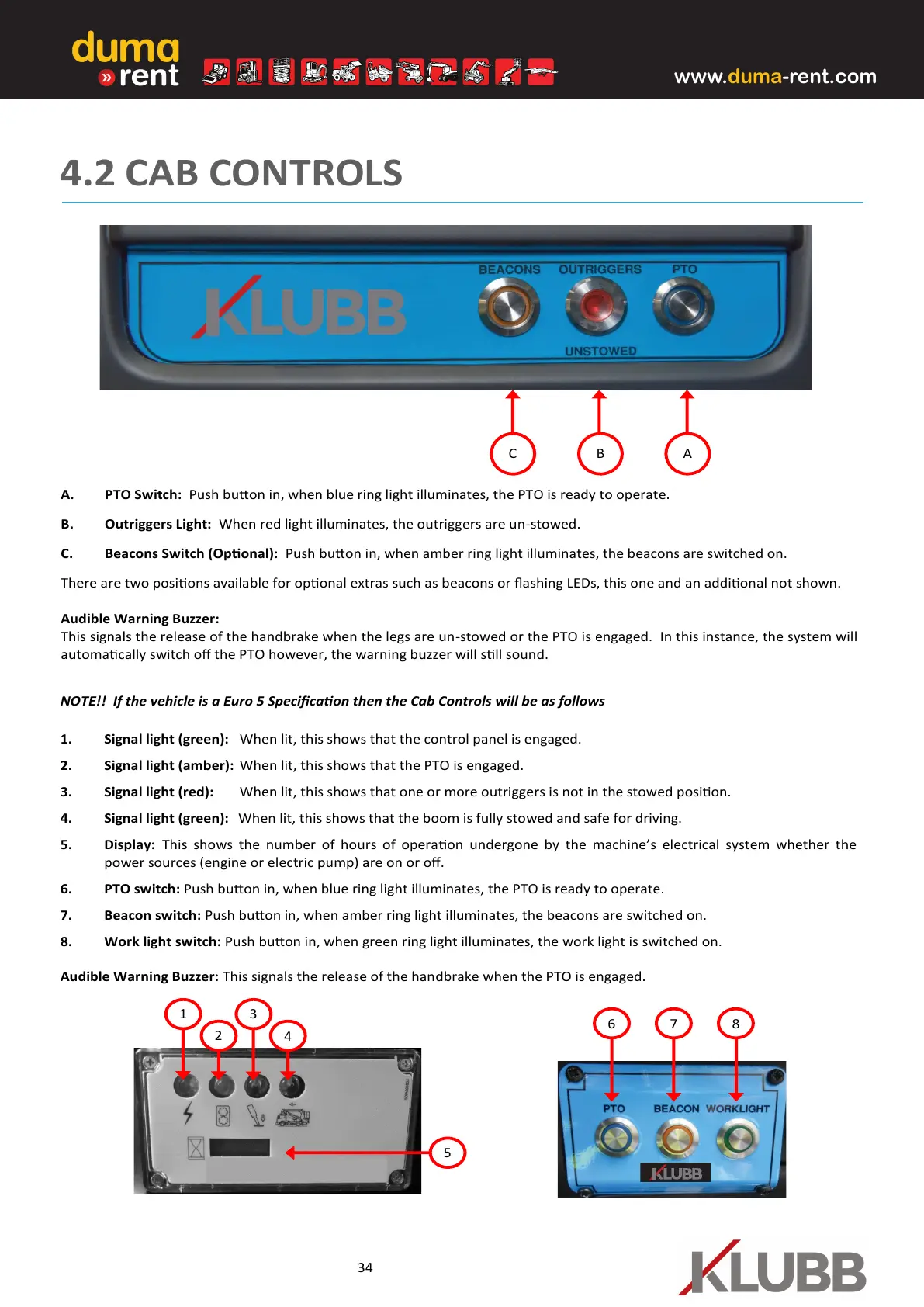

4.2 CAB CONTROLS
B C A
A. PTO Switch: Push buon in, when blue ring light illuminates, the PTO is ready to operate.
B. Outriggers Light: When red light illuminates, the outriggers are un-stowed.
C. Beacons Switch (Oponal): Push buon in, when amber ring light illuminates, the beacons are switched on.
There are two posions available for oponal extras such as beacons or ashing LEDs, this one and an addional not shown.
Audible Warning Buzzer:
This signals the release of the handbrake when the legs are un-stowed or the PTO is engaged. In this instance, the system will
automacally switch o the PTO however, the warning buzzer will sll sound.
1
7 8 6
2
3
4
5
