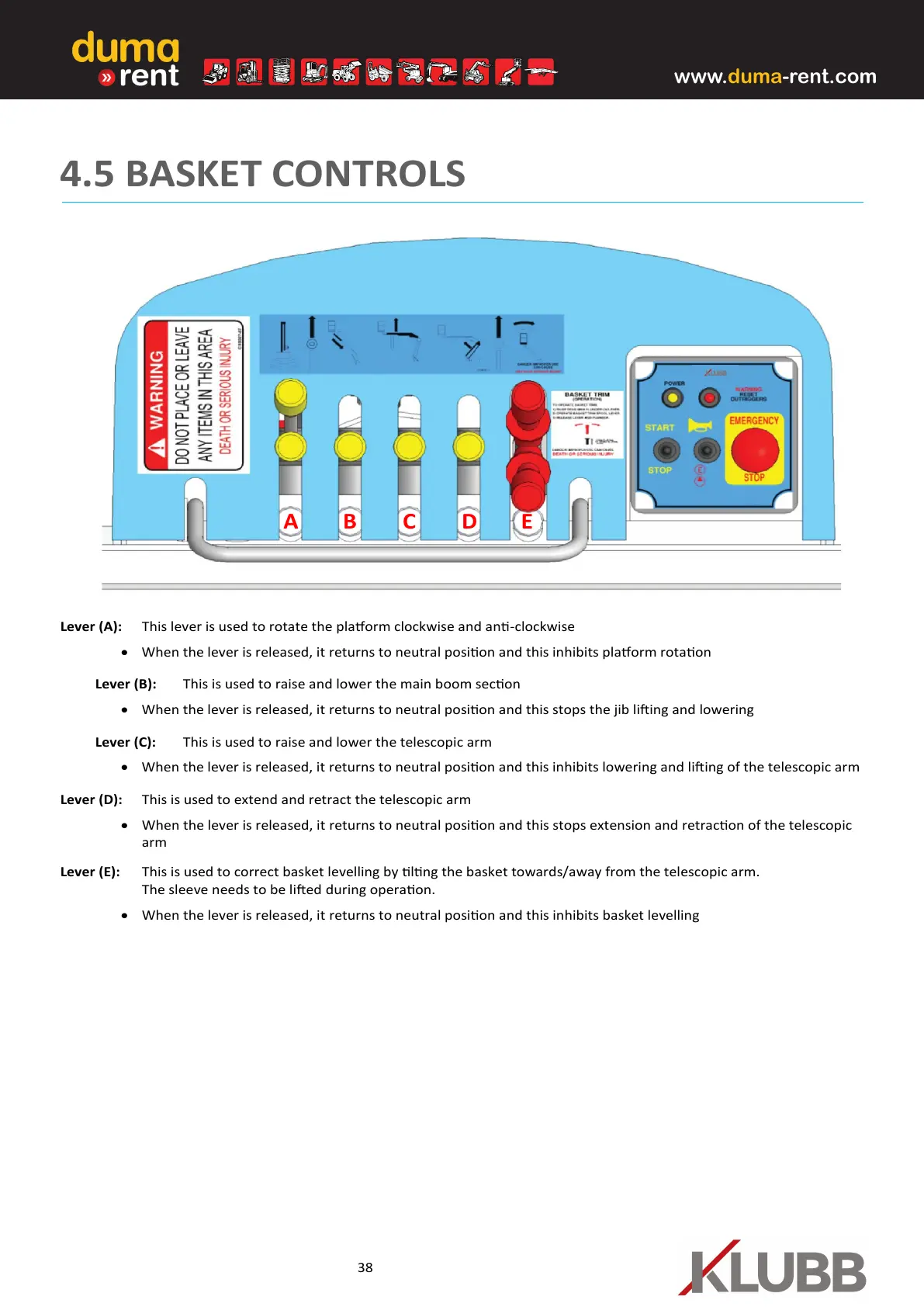

4.5 BASKET CONTROLS

Lever (A): This lever is used to rotate the plaorm clockwise and an-clockwise

• When the lever is released, it returns to neutral posion and this inhibits plaorm rotaon

Lever (B): This is used to raise and lower the main boom secon

• When the lever is released, it returns to neutral posion and this stops the jib liing and lowering

Lever (C): This is used to raise and lower the telescopic arm

• When the lever is released, it returns to neutral posion and this inhibits lowering and liing of the telescopic arm

Lever (D): This is used to extend and retract the telescopic arm

• When the lever is released, it returns to neutral posion and this stops extension and retracon of the telescopic

arm

Lever (E): This is used to correct basket levelling by lng the basket towards/away from the telescopic arm.

The sleeve needs to be lied during operaon.

• When the lever is released, it returns to neutral posion and this inhibits basket levelling

A B C D E
