28
No. PART NAME QTY
1 PTO pump 1
2 Spool valve, boom controls in plaorm 1
3 Delivery line lter 1
4 Hydraulic oil tank 1
5 Oil tank drainage cap 1
6 Return lter 1
7 Tap 1
8 Hand pump 1
9 Maximum pressure and closure valve for levelling circuit 1
10 Spool controls, outrigger controls 1
11 Rear outrigger cylinder 2
12 Front outrigger cylinder 2
13 Outrigger lock valves 4
14 Lock valve for plaorm levelling cylinder 1
15 Slew rotaon motor 1
16 Switch for unloading rotaon unit at stroke limit 1
17 Electric valve 1
18 Spool valve, boom controls and decking 1
19 Plaorm levelling master cylinder 1
20 Cylinder manoeuvring for pantograph unit + arm extension 1+1
21 Lock valve for pantograph unit cylinder 1
22 Telescopic arm manoeuvring cylinder 1
23 Lock valve for telescopic arm manoeuvring jack 1
24 Plaorm levelling slave cylinder 1
25 Telescopic arm extension cylinder
1
26 Lock valve for telescopic arm cylinder 1

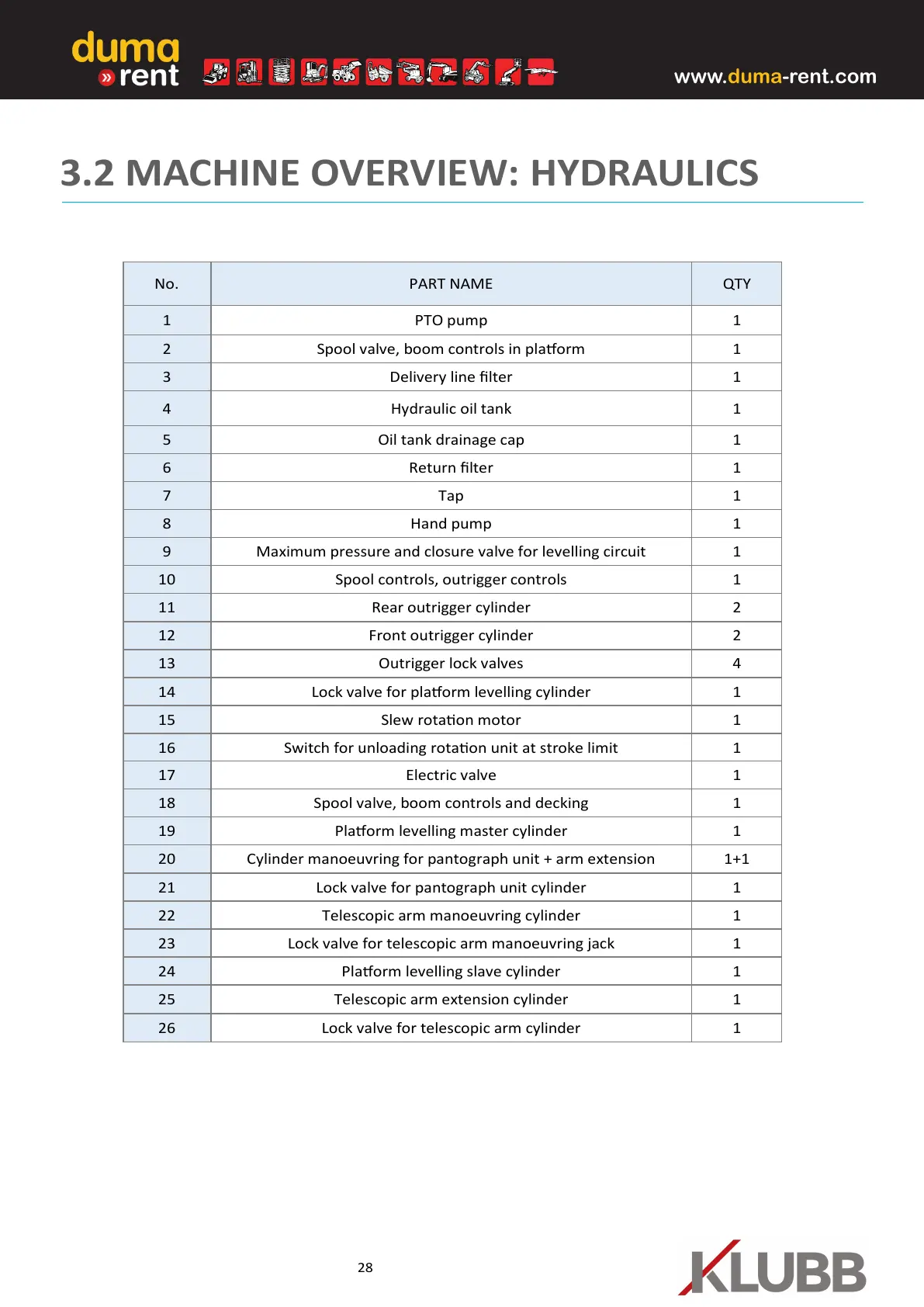

3.2 MACHINE OVERVIEW: HYDRAULICS
