Novar 1xxx KMB systems
17

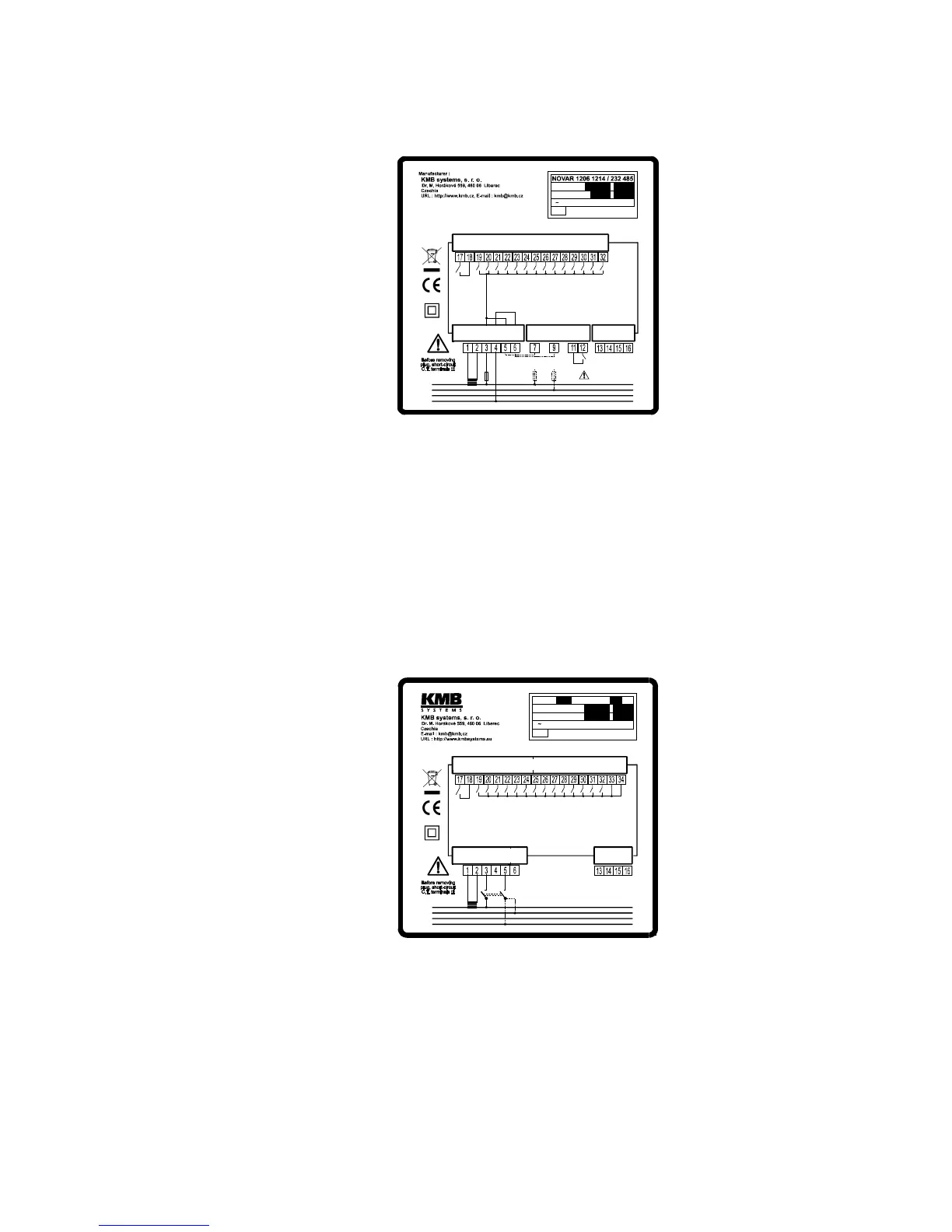

Fig. 2.2 : Novar1214 Controller – Connectors
L1
L2
L3
N
1 2 3 4 5 6 7 8 9
10
11
12
13
14
ALARM
5A
(1A)
max.
10A
100÷275 VAC
k l L N
RS 232/485
Rx
TR A B GND
Tx GND
Made in Czech Republic
/
/
Serial / vers.:
Product. date :
IP 4X
U 100 275 VAC, 7VA, ÷ ÷ 43 67 Hz
SUPPLY
LOAD
58÷690 VAC
N L L/NL
max. 6A
max. 6A
2. TARIF
2.2.1.2 “/S400” Version Controllers
Controllers of the “/S400” version can be supplied with higher voltage – up to 500 V, either AC or DC.
The power demand is the same as those of standard version.
The supply voltage connects to terminals 3 (L1) and 5 (L2/N). In case of DC supply voltage the
polarity of connection is generally free, but for maximum electromagnetic compatibility grounded pole
should be connected to the terminal 5 (L2/N); see connection examples below.
Power supply voltage needs to be externally protected ( see following chapter).
Despite of standard version, power supply terminal 3 (L) is not internally connected to the common
pole of output relays. Terminals 4 and 6 are not used.
Fig. 2.3 : Novar1114/S400 Controller – Connectors
L1
L2
L3
N
1 2 3 4 5 6 7 8 9
10
11
12
13
14
ALARM
5A
(1A)
max.
500
VAC
L2/N
RS 232/485
Rx
TR A B GND
Tx GND
Made in Czech Republic
/
/
NOVAR 1106 1114 / S400 / 232 485
Serial No / Fw. vers.:
Production date :
IP 4X
U 75 500 V AC, 7 VA, ÷ ÷ 43 67 Hz
SUPPLY
LOAD
k
l
1A
L1
2.2.1.3 Novar 1005 / 1007 Controllers
The supply voltage connects to terminals 4 (L1) and 3 (N). Power supply voltage needs to be
externally protected ( see chapter Protection below ).
Power supply terminal 4 ( L1 ) is internally connected to the common pole of output relays. It is
necessary to dimension the power supply protection in consideration of output contactors’ power as
well.
