Chapter 3 installation method MDC-7000/7900 Series
3-26 0092669002-07

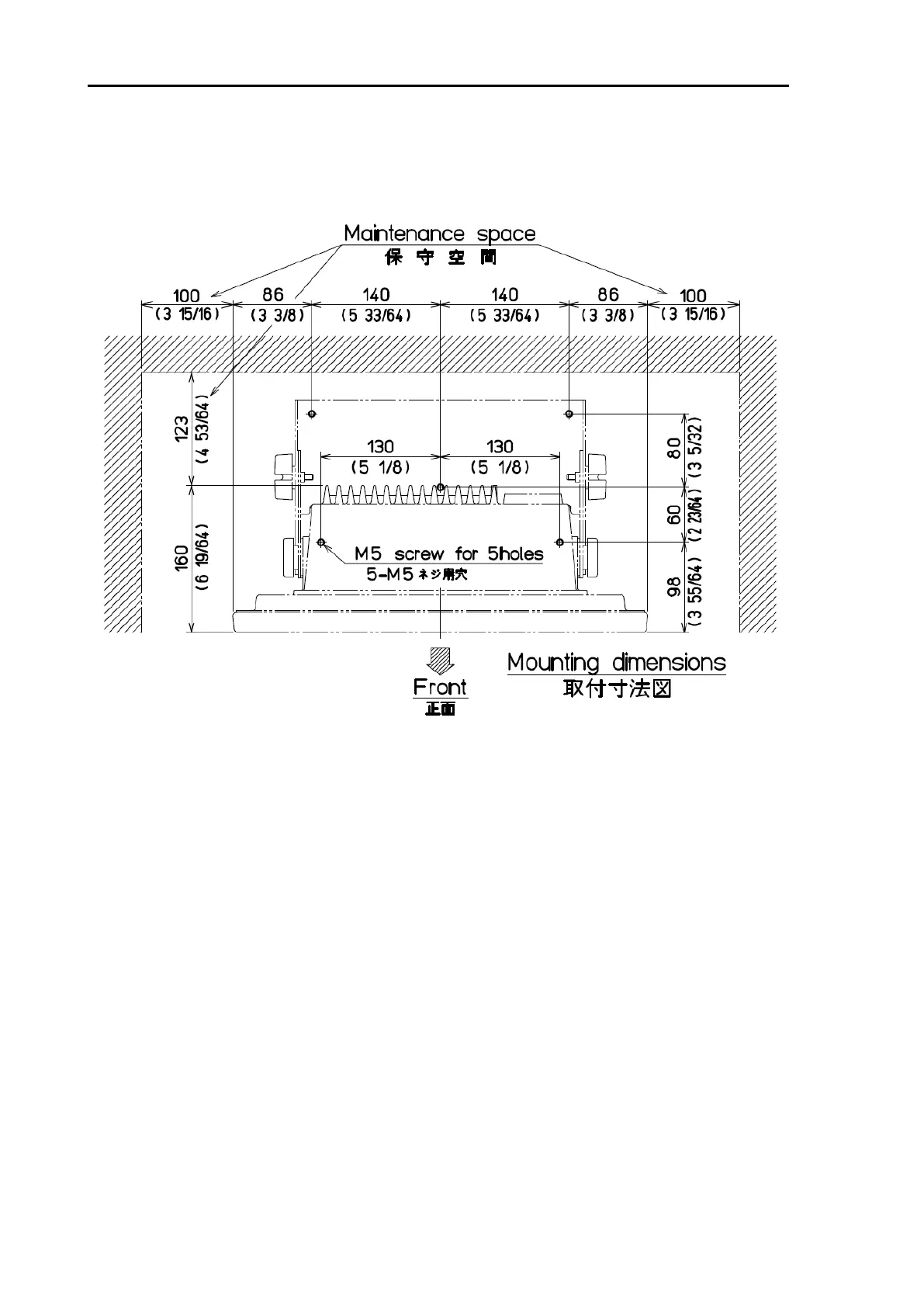

Figure 3.6 Maintenance space necessary for tabletop display
Note: In Tabletop mounting position, some maintenance space is required for cabling, connector
access, fuse replacement, fastening of bolts, etc. as shown in the following figure.
