Koden MDC-7012 - Cable Connections to Display Unit

Chapter 3 installation method MDC-7000/7900 Series
3-32 0092669002-07
Operation unit
Power cable
CW-259-2M
Standard length: 2 m
AC Power cable,
(Ordered goods)
3.4 Cable connection to a Display unit
3.4.1 Cable connection for MRD-108
Attach cables from an Antenna-Scanner unit, power source and Operation unit, to corresponding
receptacles as shown in Figure 3.14.
View of CW-259 connector
Power cable pin assignment
No.
Wire color
Signal name
1
Black
DC Main power (-)
2
White
DC Main power (+)
3
Grey
Ground
1
2
3
Connecting cable
CW-845-15M
Standard length: 15 m
AC/DC Rectifier
PS-010
or
VL-PSG001

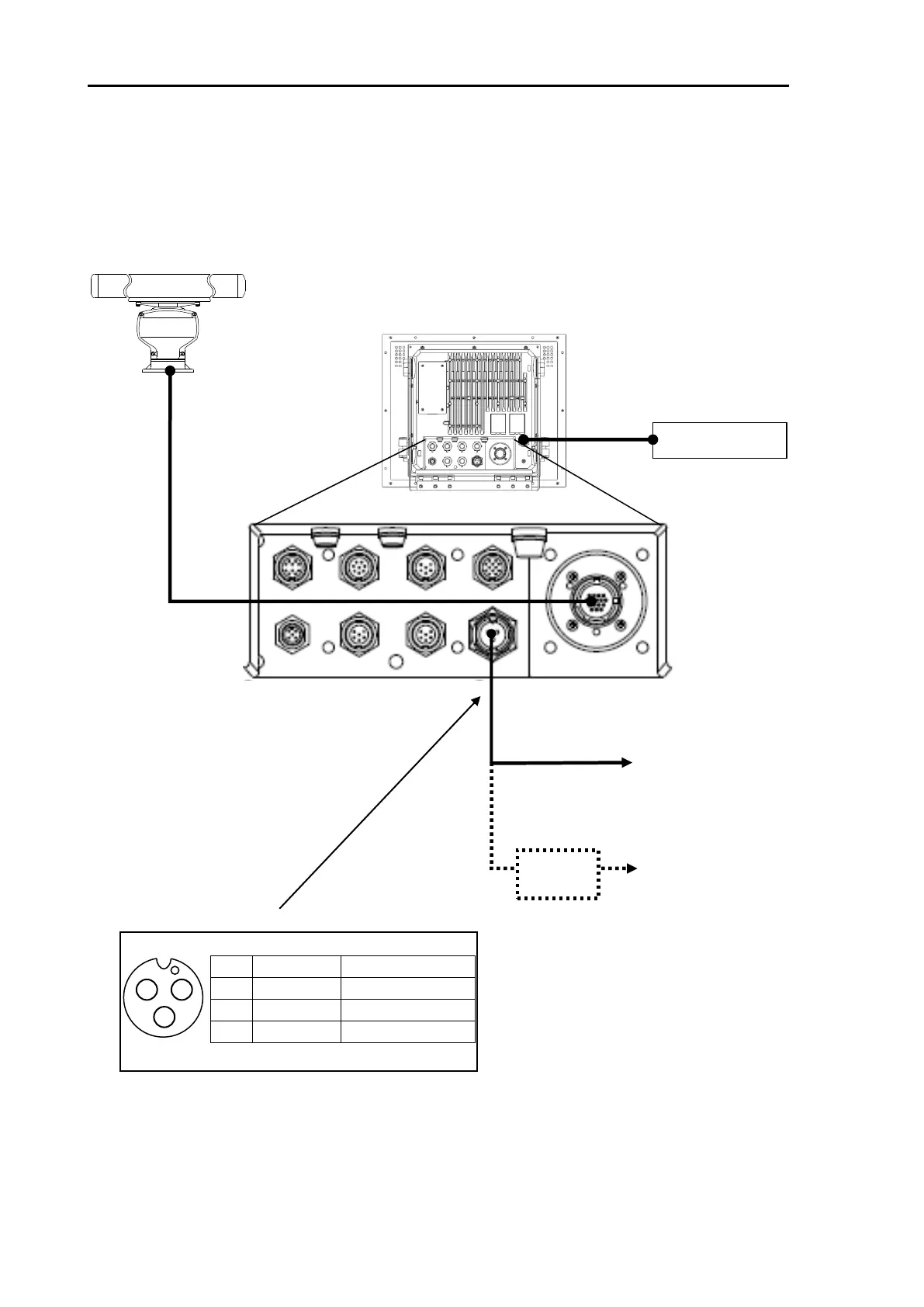

Figure 3.14 Cable connections for standard configuration of MRD-108 Display unit
Display unit
Antenna-Scanner unit
DC Power supply
21.6 to 41.6 VDC
