MDC-7000/7900 Series Chapter 3 Installation method
0092669002-07 3-33
3.4.2 Connecting an External monitor
3.4.3 Connecting a VDR or External monitor & Failure alarm output
VDR
or
External monitor
CW-576-0.5M
Failure alarm contact
output from the radar.
Contact will close in case
of failure.
Switching voltage: 30V
Max current capacity: 1A
White
Black
Monitor cable
J1

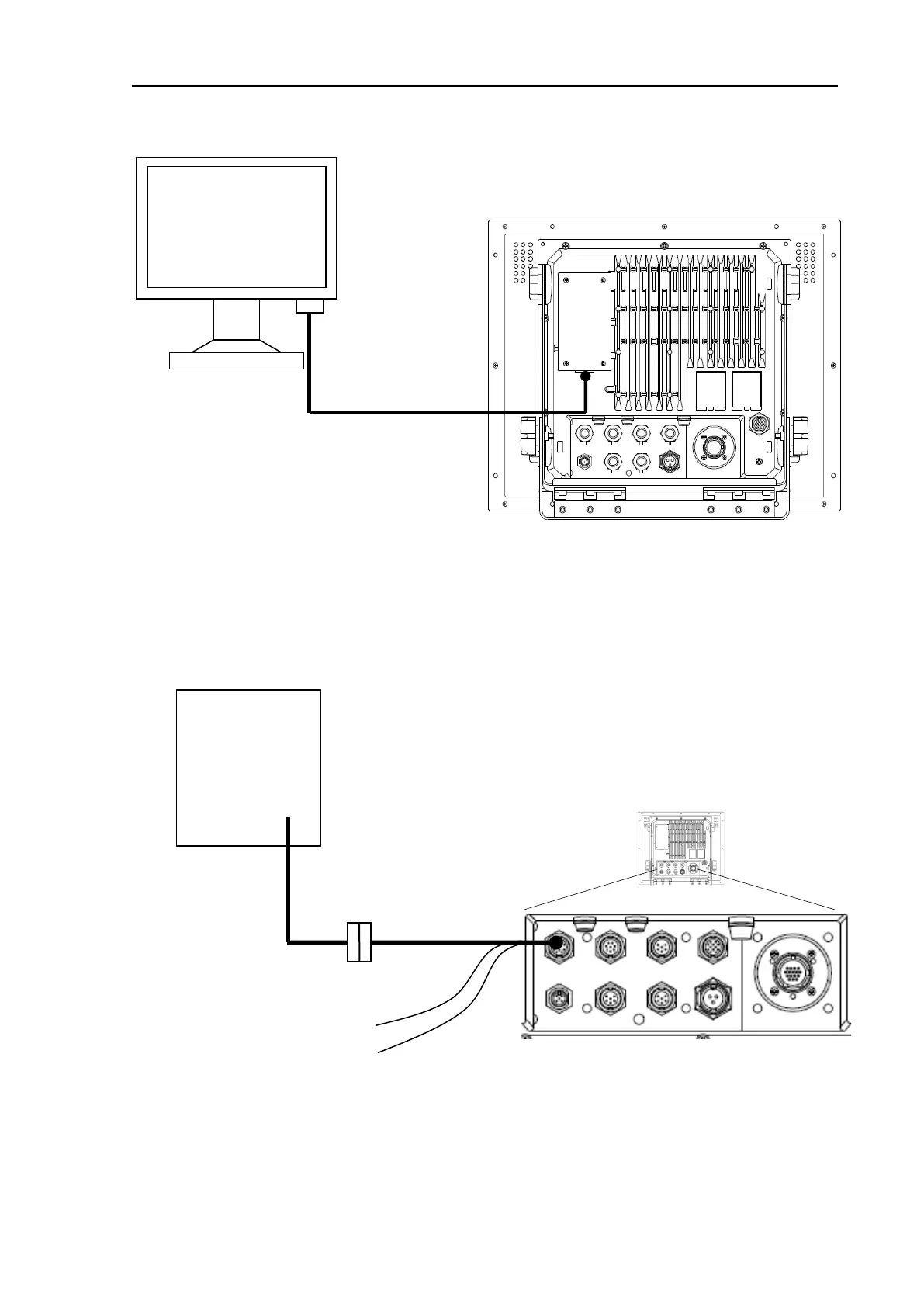

Figure 3.16 Cable connection of Display unit to VDR and Alarm output
Analog RGB cable
SXGA Monitor
Analog RGB input
Figure 3.15 Cable connection of Display unit to ext. monitor
