Disassembly/Reassembly 8-3TP-5606 6/02

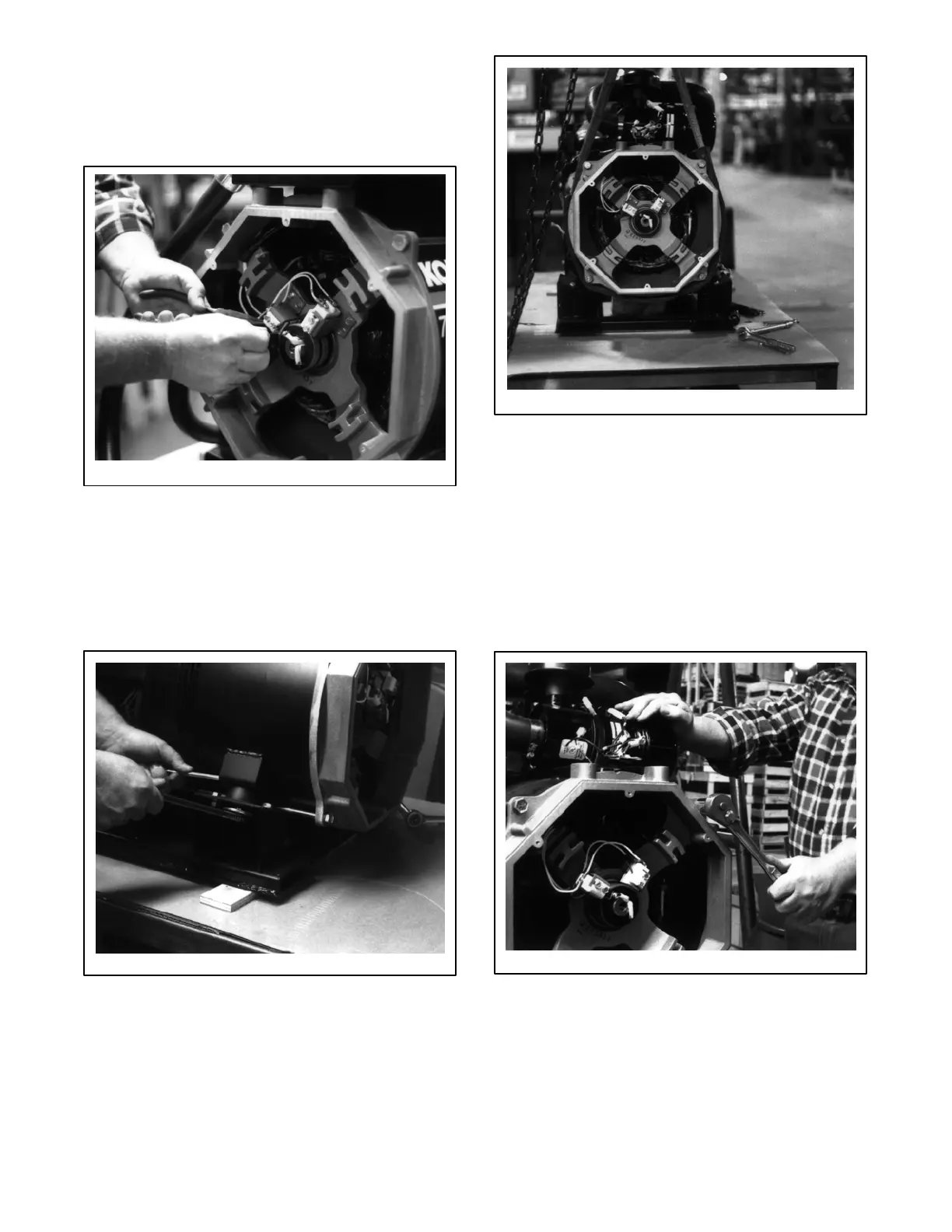

14. Raise brushes in holders (two sets) by pushing
leads upward in the slots. Retain brushes by
inserting a length of wire or a paper clip. See
Figure 8-6.
1-932
Figure 8-6. Raising Brushes
15. Remove the bolts from the two generator
vibromounts using a 1/2-inch wrench. See
Figure 8-7.
1-932
Figure 8-7. Removing the Vibromounts
16. Place the hoist hook into the generator hoisting eye
and raise generator end, see Figure 8-8. Place a
wood block under flywheel housing and lower
generator until housing is supported by block. See
Figure 8-8.
1-932
Figure 8-8. Using Hoist to Raise Generator Set
NOTE
Hoist capacity should be rated at one-half ton or
greater.
17. Remove the four overbolts securing the end
bracket using a 17-mm ratchet. See Figure 8-9.
1-932
Figure 8-9. Removing the Overbolts
18. Pull the brush lead harness (containing leads 9 and
20) through hole in stator.
19. Remove the end bracket by bumping with a soft
rubber mallet on end bracket flanges. See
Figure 8-10.
