9

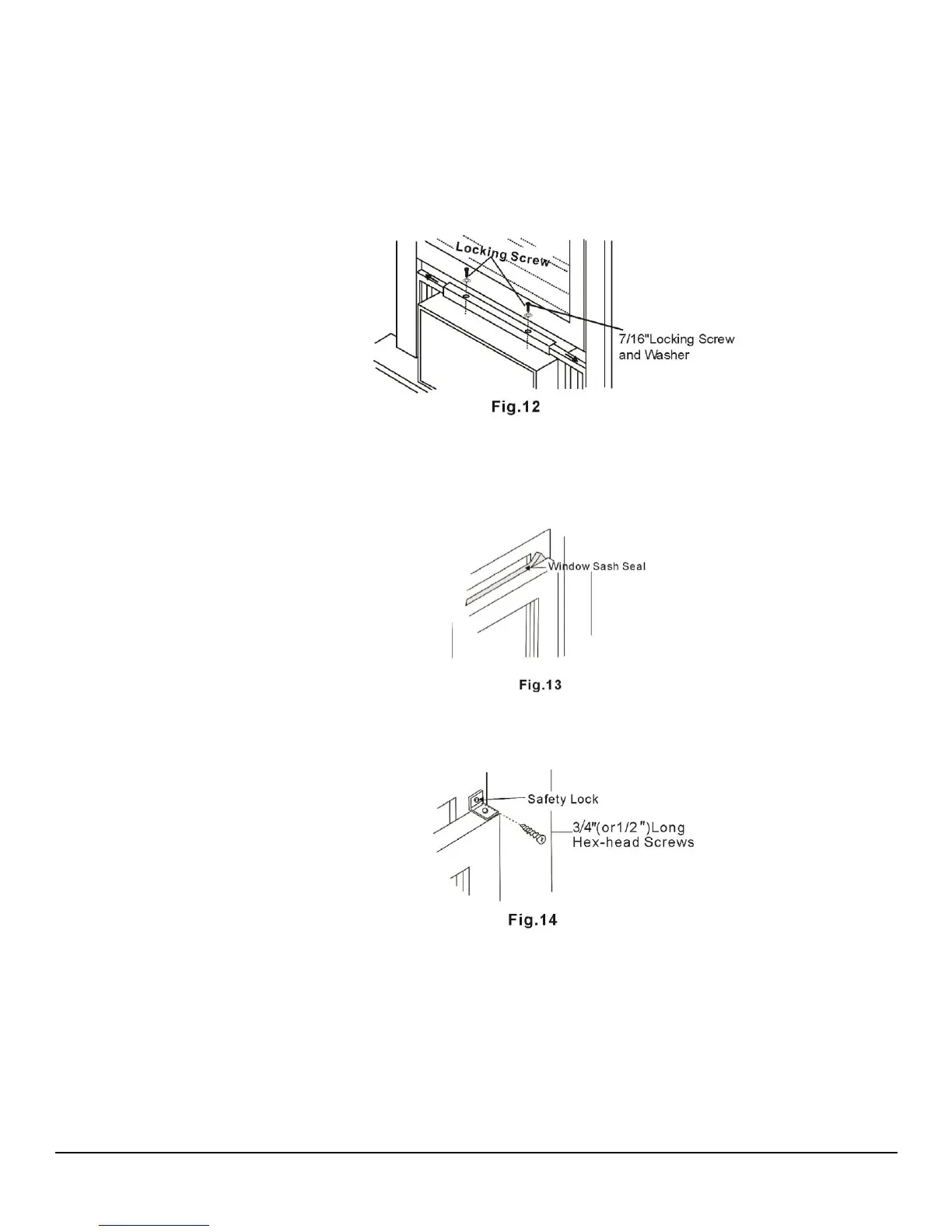

Extend Side Curtains to Window Frame
1. Carefully raise the window to expose the window curtain panel
locking screws. Loosen the screws so the curtains slide easily.
2. Extend the panels to fill the window opening completely. Tighten
the locking screws on top. (Figure 12)
3. Close the window behind the top angle.
Completing Installation
1. Trim the sash seal to fit the window width. Insert the seal into the
space between the upper and lower sashes, as seen below.
2. Attach the right safety lock. (Figure 14)
3. What goes here?
4. Lift the air conditioner and carefully slide it into the cabinet leaving 6
inches protruding.
5. DO NOT push on the controls or finned coils. Be sure that the
chassis is firmly seated towards the rear of the cabinet.
6. To reattach the front of the unit reversing the steps in Removing the
Front.
7. Plug into a grounded 3-prong outlet and press “Reset” on power
cord supply. Lastly, press the on/off button to power on the unit.
