Koldfront WAC25001W User Manual

Koldfront Window Air Conditioner 4
Window Installation Instructions

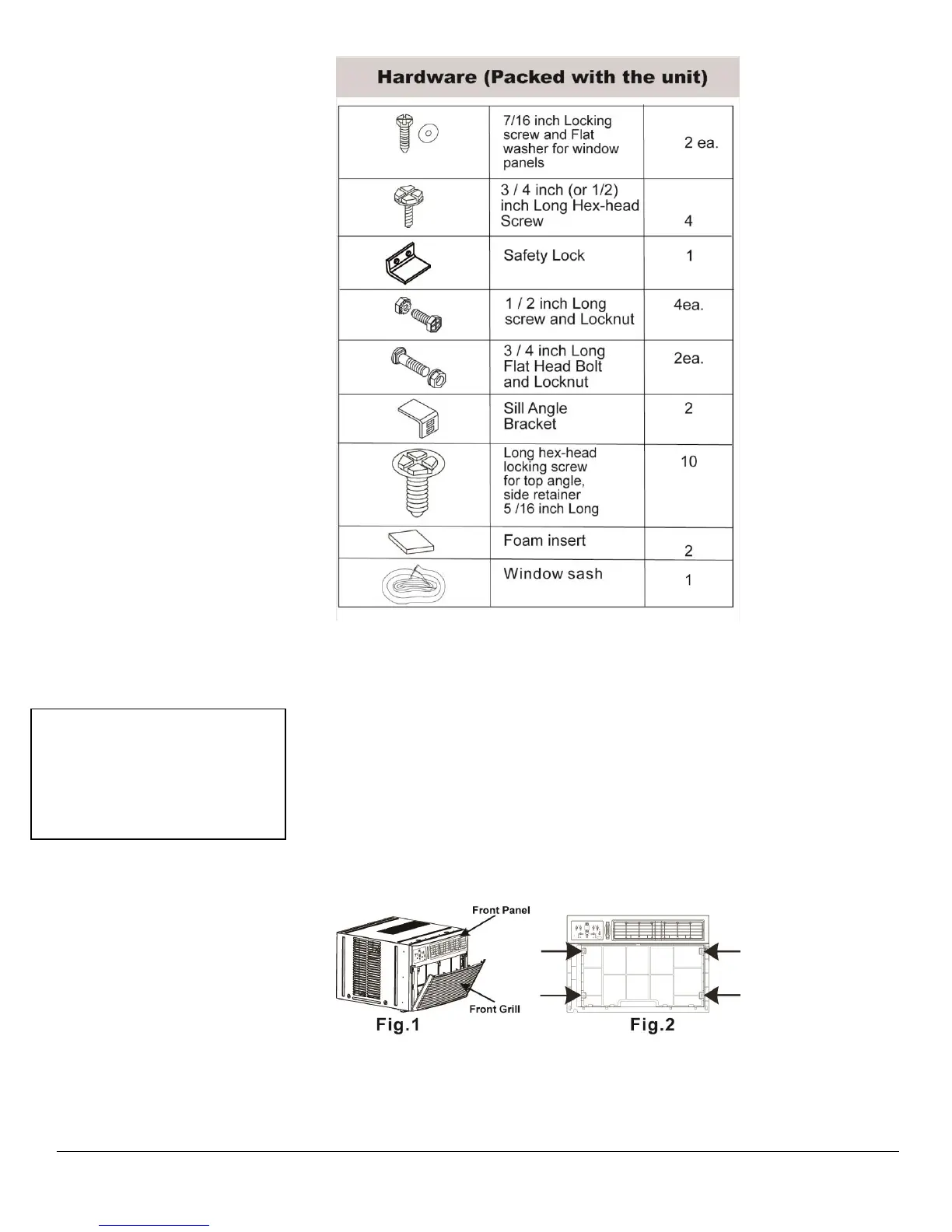

Preparing the unit for window Installation
Remove the Air Conditioner unit from Cabinet
1. Pull down the front grill and remove the filter. (Figure 1)
2. Lift the front grill upwards to remove and place to the side.
3. Remove the four front screws. These will be needed to re-
install the front panel. (Figure 2)
4. Push both sides of the metal cabinet to release the plastic
tabs on each side of the front panel. (See Figure 3)
5. Lift the front panel off of the unit. (Figure 3A)
NOTE: When choosing
your window make sure
power supply cord is within
4 feet of a grounded
3-prong outlet

Koldfront WAC25001W Specifications

General

Description of product	Window Air Conditioner and Heater
Model	WAC25001W
Color	White
Voltage/Frequency	208-230V / 60Hz
Current (Cooling / Heating)	11.3 / 22.5A
BTUs (Cooling / Heating)	25, 000 / 16, 000
Coolant	R410A, 36.7 oz.
Timer	24 Hour

Weight and Dimensions

Dimensions W x D x H	26.5” x 26.5” x 18.6”
Weight	131 lbs.
