5
6. Disconnect the plug of the display panel from the unit and

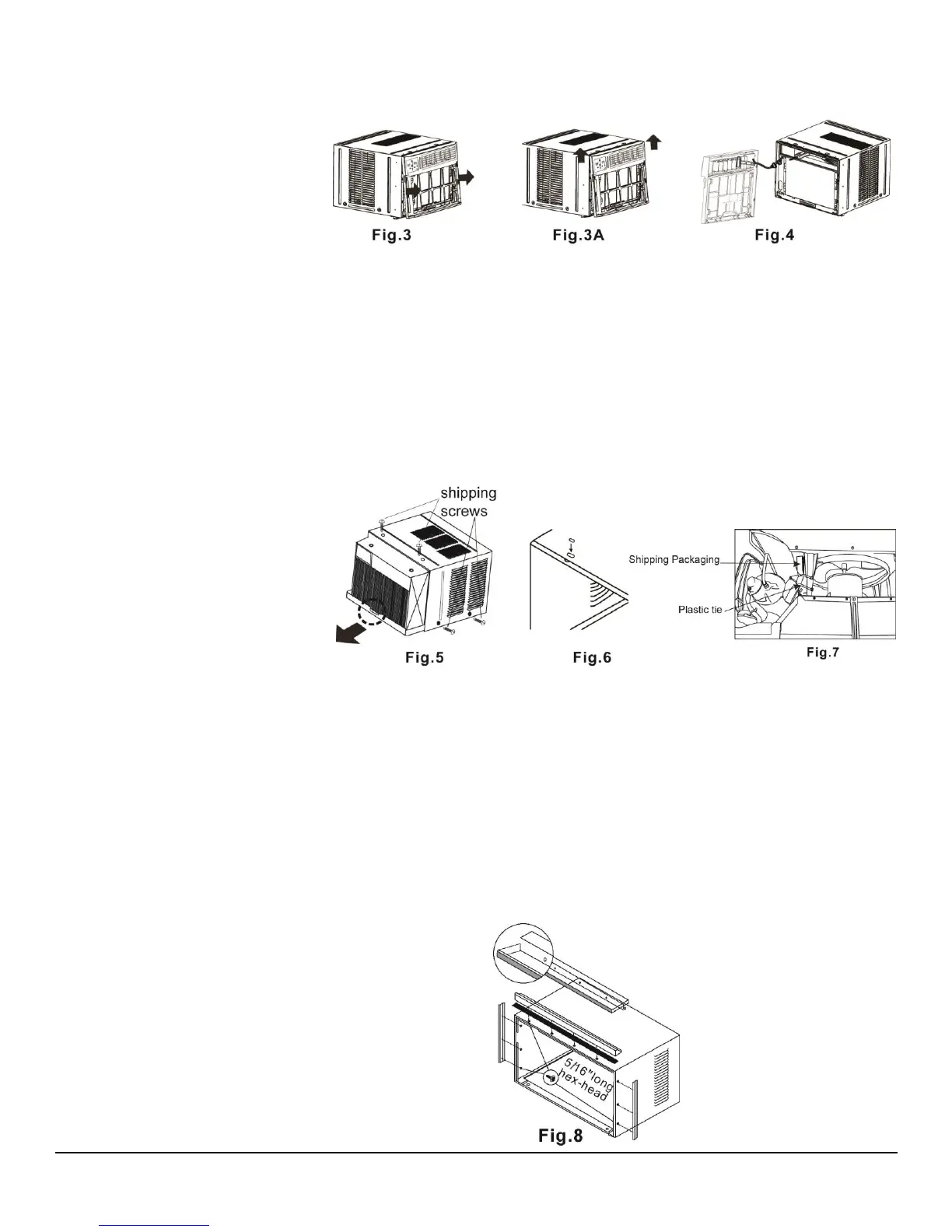

place the front panel to the side. (Figure 4)
7. Take out the shipping screws from the top and sides of
the unit. (Figure 5)
8. Hold the cabinet while pulling on the base pan handle,
and carefully remove the unit.
9. Add two foam inserts to the holes where the shipping
screws were removed at the top of the unit. (Figure 6)
10. If the unit comes with internal packaging it must be
removed prior to installing the air conditioner back into the
cabinet. (Figure 7)
Attaching the Top Channel and Side Curtains
Make sure to attach the top channel and side curtains prior to
installing the cabinet into the window.
1. Attach the foam gasket to the top channel above the holes as
shown in Figure 8.
2. Install the side curtains and top channel with the 10 (5/16”)
screws provided.
To Next Page
