S300 Safety Guide | 2 English

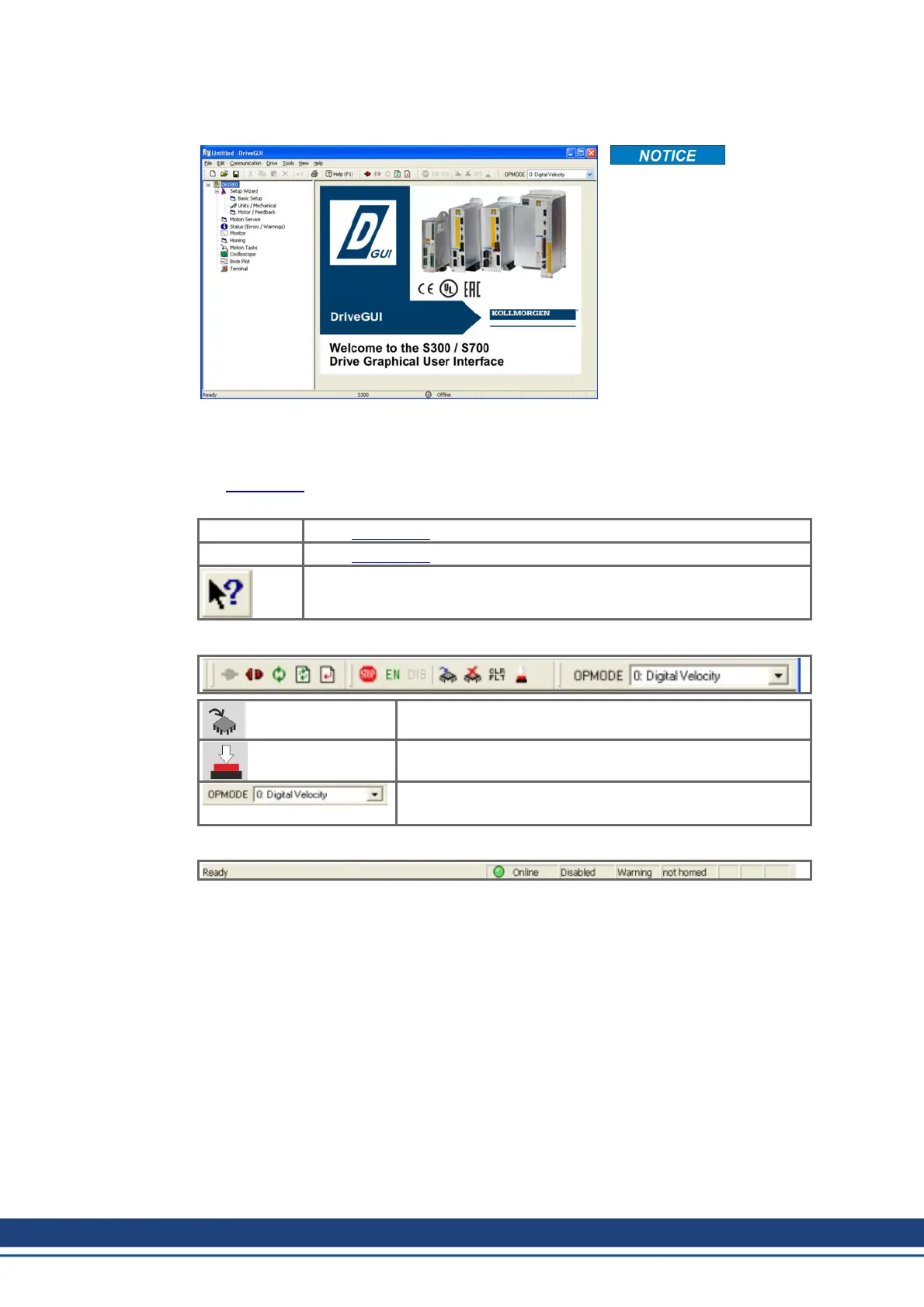

If communication works, you see the start screen. Select "Setup Wizard" in the navigation
frame.
Make sure, that the amplifier
is disabled (Input Enable con-
nector X3 pin 12 must be 0 V
or open)!
2.6.3.5 Important Screen Elements
Help Function
The Online Help gives detailed information to all parameters the servo amplifier can work
with.
Key F1 Starts Online Help for the actual screen page.
Menu Bar ? Starts Online Help with the table of contents page.
Context Help. Click the help symbol first. Then click the function for which you
need help.
Tool Bar
Save to EEPROM, required if you changed parameters.
Reset, required if you changed configuration parameters.
Operation Mode, use "0: Digital Velocity" mode for drive test-
ing.
Status Bar
The status bar shows a green Online symbol, indicating that the communication works.
2.6.3.6 Setup Wizzard
The Setup Wizard leads you through the necessary steps for configuring your servo amp-
lifier. Depending on the selected application, only the active screen pages are necessary.
More setup information see Instructions Manual.
56 Kollmorgen | wiki-kollmorgen.eu | December 2015
