Komatsu Galeo PC800-8 User Manual

50 Disassembly and assembly SEN01057-01
PC800, 850-8
29

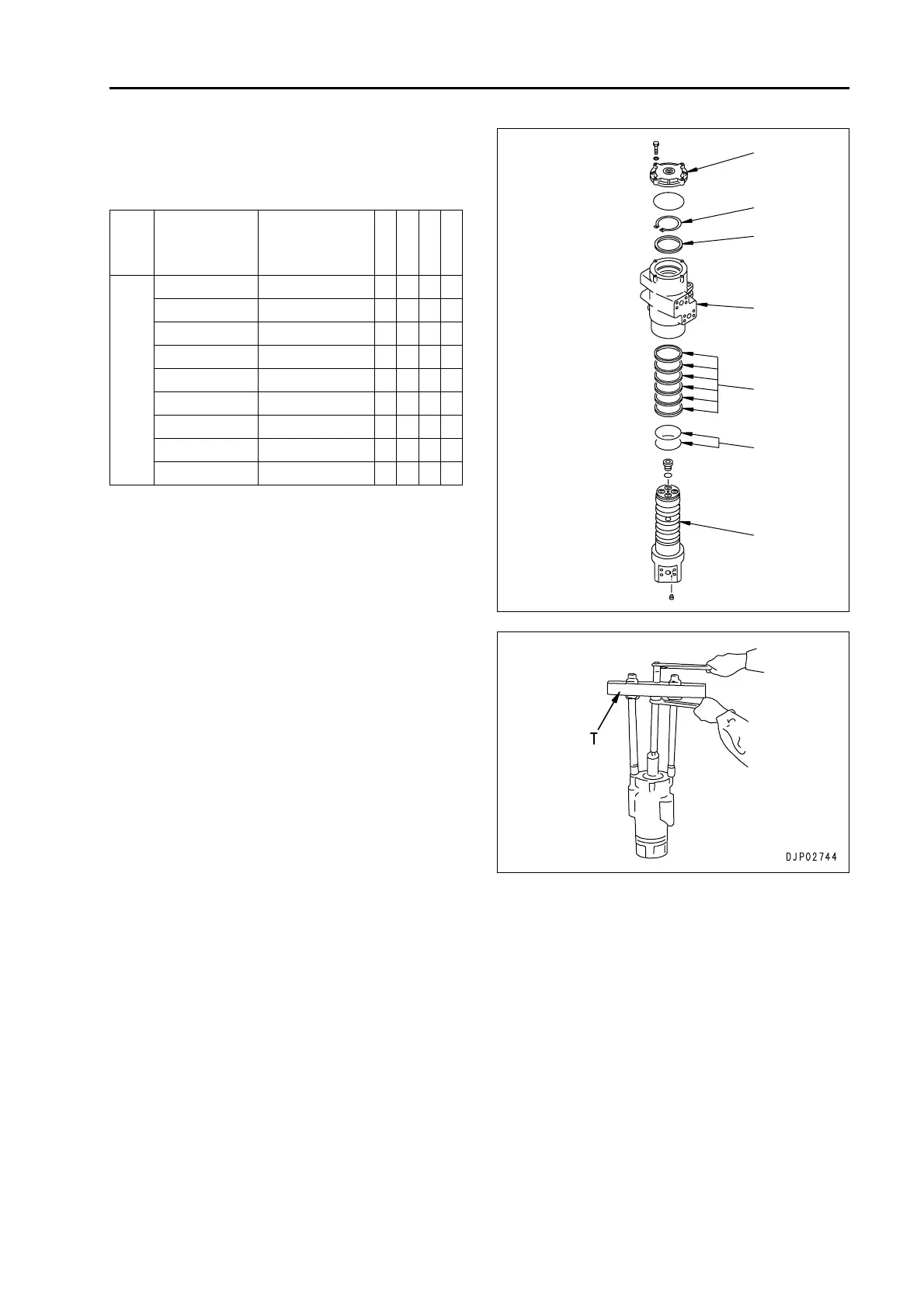

Disassembly and assembly of
center swivel joint assembly 1
Special tools
Disassembly
1. Remove cover (1).
2. Remove snap ring (2).
3. Using push-puller (T), pull out swivel rotor (4)
and ring (3) from swivel shaft (5).
4. Remove O-rings (6) and slipper seals (7) from
swivel rotor (4).
Symbol
Part number Part name
Necessity
Q’ty
N/R
Sketch
T
790-101-2501 Push-puller t 1
790-101-2510 • Block t 1
790-101-2520 • Screw t 1
791-112-1180 • Nut t 1
790-101-2540 • Washer t 1
790-101-2630 • Leg t 2
790-101-2570 • Plate t 2
790-101-2560 • Nut t 2
790-101-2660 • Adapter t 2
CEP00381
5
6
7
4
3
2
1
