SEN01056-01 50 Disassembly and assembly
12 PC800, 850-8
Disassembly and assembly of
idler adjustment cylinder
assembly 1
Disassembly

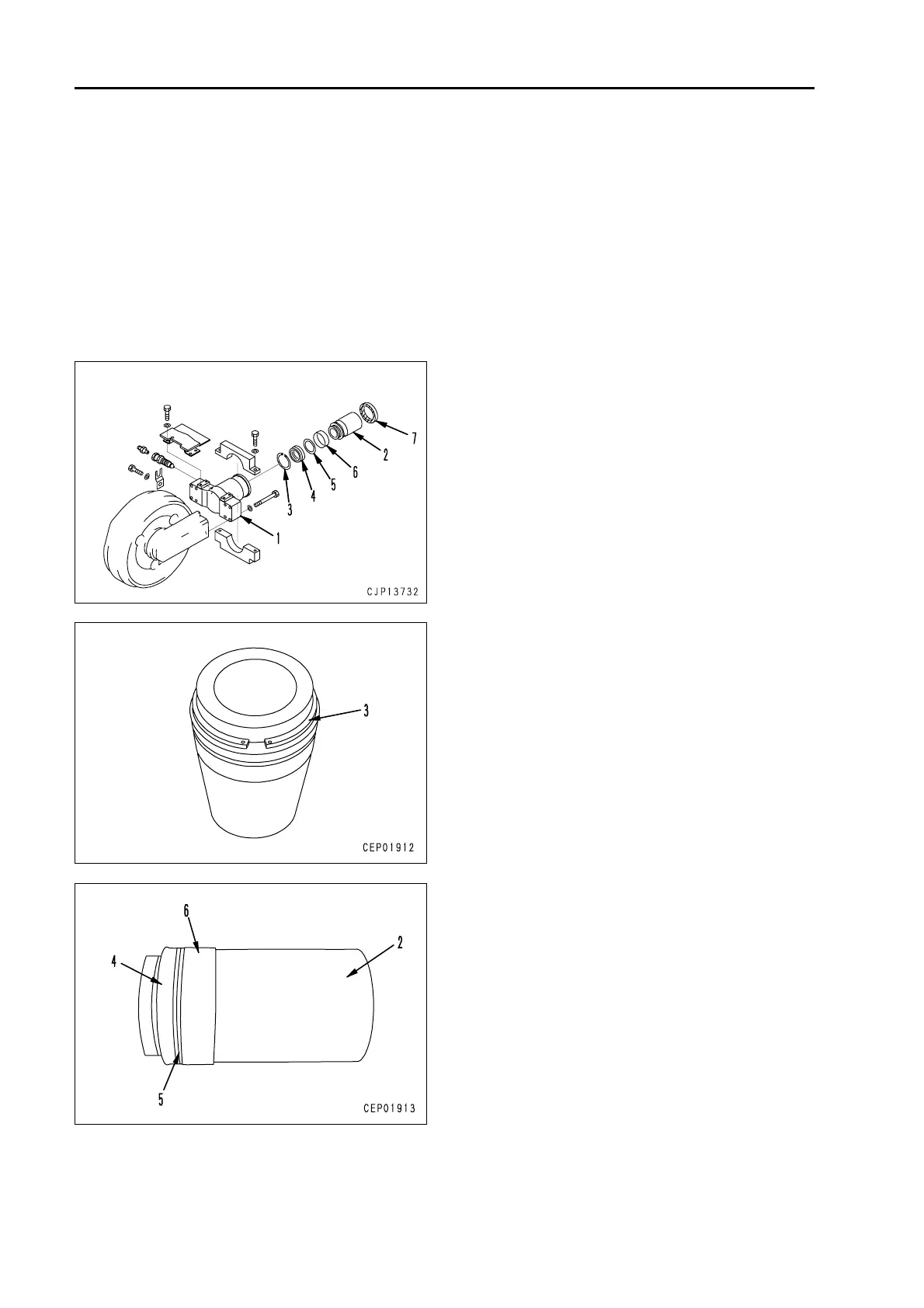

1. Remove plunger (2) from yoke (1).
2. Remove snap ring (3) from plunger (2) and
then remove packing (4), backup ring (5), and
wear ring (6).
3. Remove dust seal (7) from yoke (1).
Assembly
1. Install wear ring (6) to plunger (2).
2. Assemble backup ring (5) and packing (4) to
plunger (2), and install snap ring (3).
3. Fill inside with grease (G2-LI), then assemble
plunger (2) into yoke (1).
4. Install dust seal (7).
