46 PC800, 850-8
SEN00384-02 10 Structure, function and maintenance standard

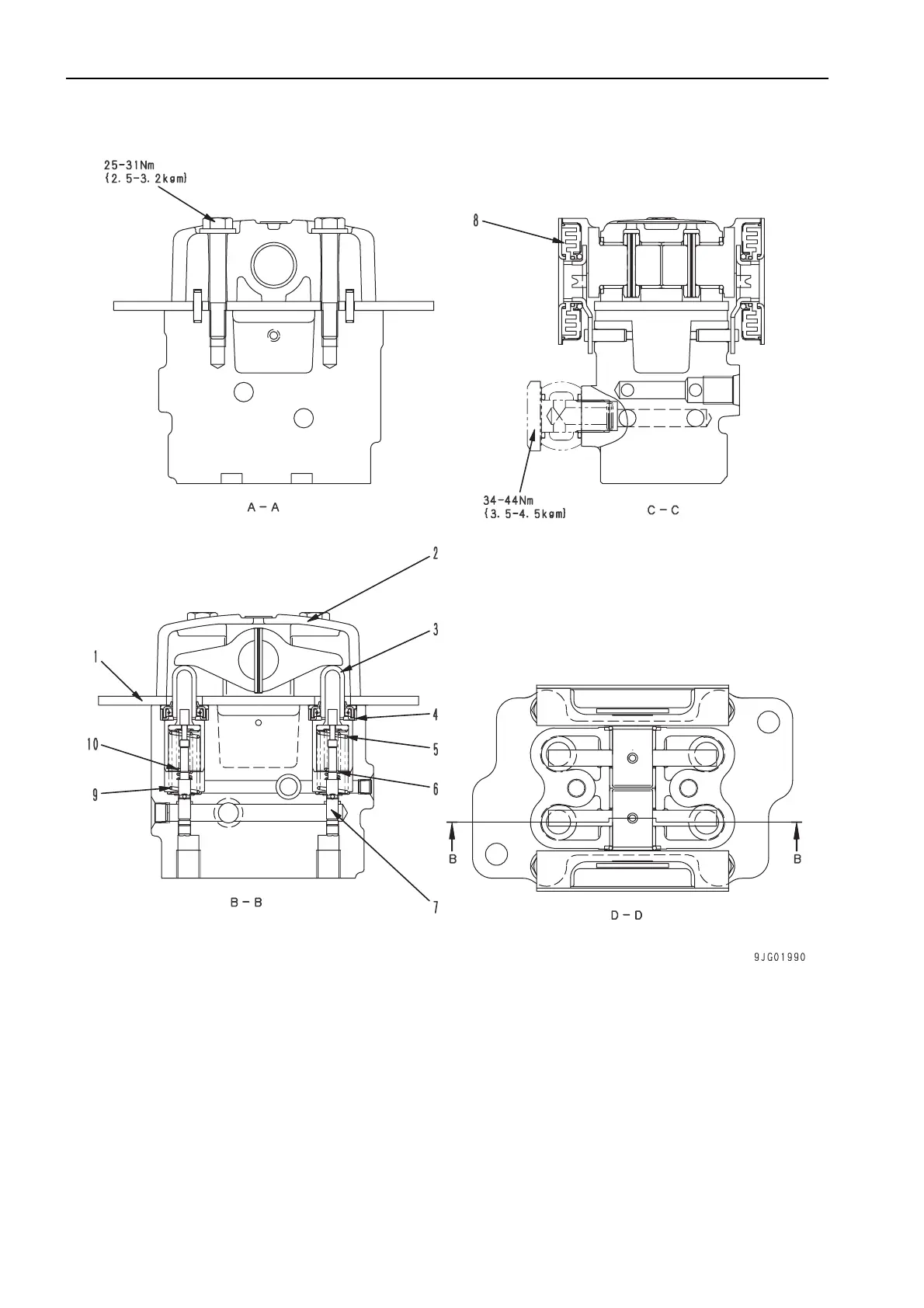

Travel PPC valve
1. Plate 5. Centering spring
2. Body 6. Metering spring
3. Piston 7. Valve
4. Collar 8. Bolt
