8 PC800, 850-8
SEN00381-01 10 Structure, function and maintenance standard
Final drive

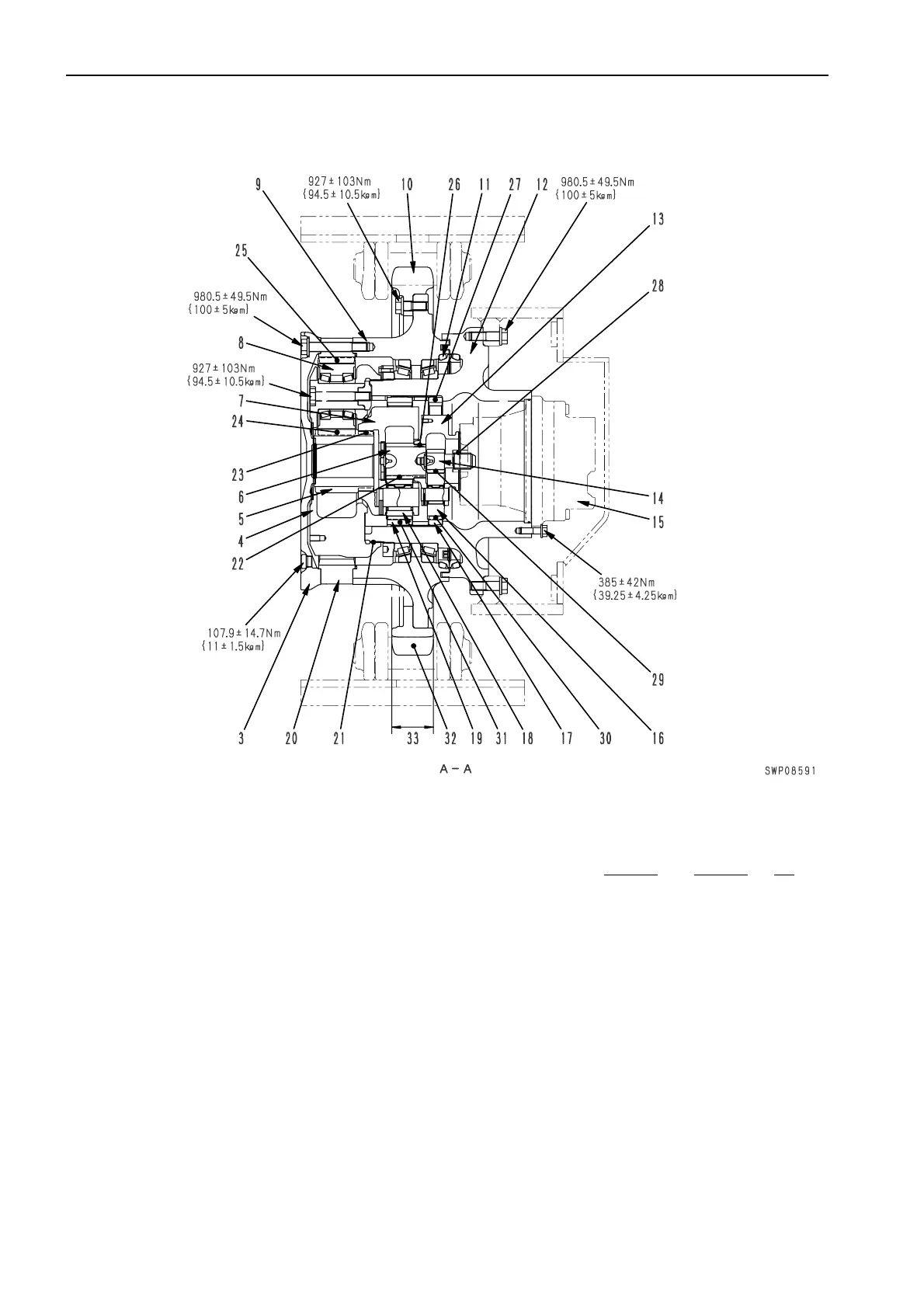

Specifications
Reduction ratio: – × ×
= –104.802
1. Level plug
2. Drain plug
3. Cover
4. No. 2 planetary carrier
5. No. 2 sun gear (No. of teeth: 19)
6. Drive gear (No. of teeth: 19)
7. No. 1 planetary carrier
8. No. 2 planet gear (No. of teeth: 24)
9. Hub
10. Sprocket
11. Floating seal
12. Case
13. Coupling
14. No. 1 sun gear (No. of teeth: 13)
15. Travel motor
16. Idler gear (No. of teeth: 27)
17. No. 1 ring gear (No. of teeth: 68)
18. No. 1 planet gear (No. of teeth: 24)
19. Driven gear (No. of teeth: 69)
20. No. 2 ring gear (No. of teeth: 69)
13 + 68
13
()
19 + 69
19
()
69
19
