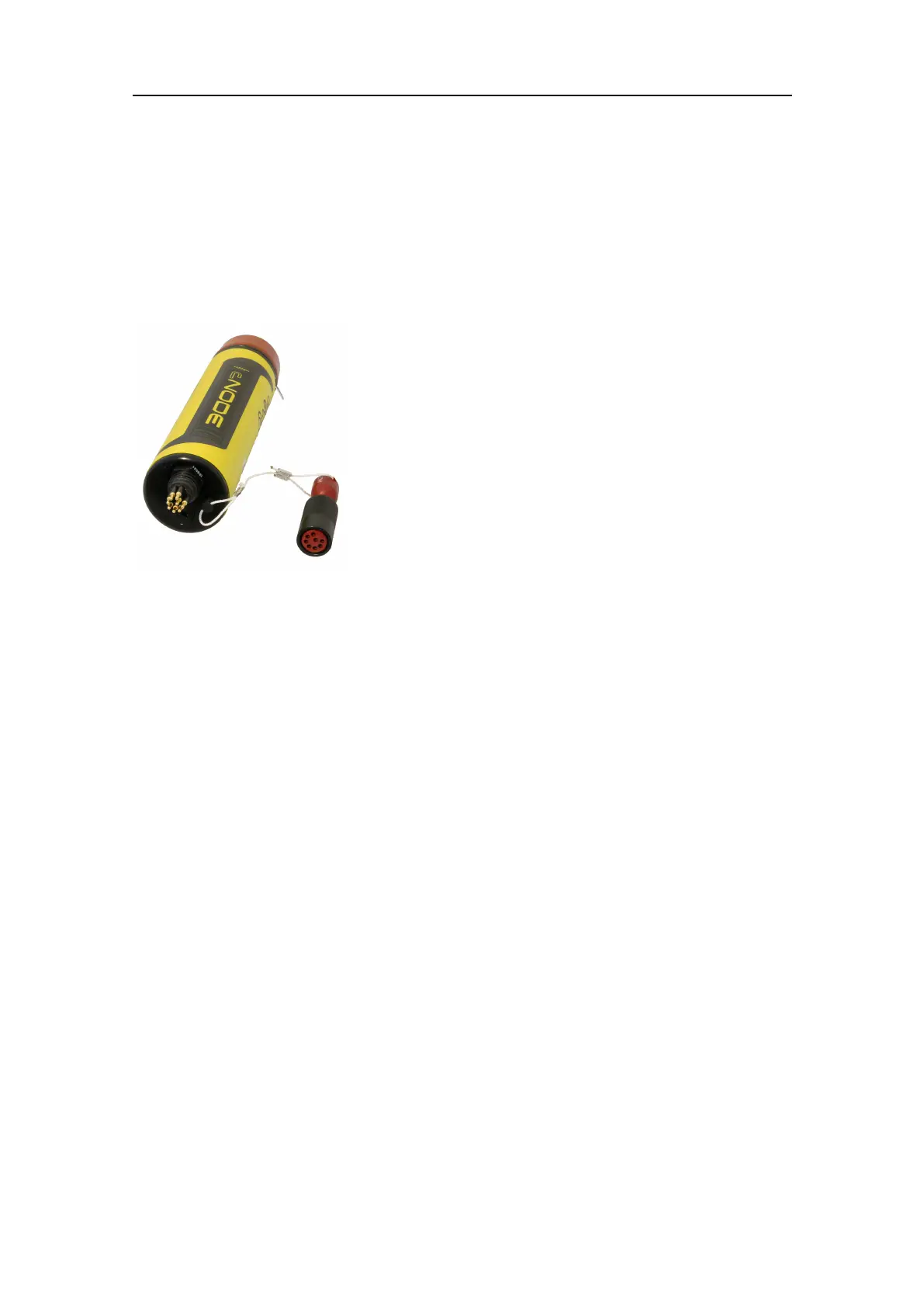

Poweringupthetransponder

Thetransponderisdesignedforoperationinwateronly.However,thetranspondermay

beoperatedinairfortestpurposesoverashortperiodoftime.

Procedure

1Connecttheon/offplugtotheendcapconnector.

2Tightenthelockingsleevetotheendcapconnector.

Result

Abuzzcanbeheardwithin25secondsasaconrmationthatthetransponderisactivated.

Furtherrequirements

ItisrecommendedtotestthetransponderwiththeTestandCongurationTest(TTC)

unittomakesurethetransponderisworkingproperlybeforeoperation.
