8.3 Place of installation of display unit
The display unit can be installed on desktop, wall surface, or ceiling. Determine
the place to install the display unit that is convenient for navigation and general
operation after considering the following suggestions:
- a place where you can see the ship’s bow when you raise your eyes from the
display.
- a place where there is limited exposure to direct sunlight – see environment
temperature limits in 8.11 Specifications.
- a place where there is good ventilation and minimum vibration.
- a place where the minimum distance to a magnetic compass is 500mm (20”).
8.4 Installation of Dual Station DS40/50
The DS40/50 is a remote control unit for the CP40/50 DGPS Chartplotter.
The units DS40 and CP40 are identical in size, and so are the units DS50 and
CP50, so the same installation guides can be used when performing the
installation. The dual station unit does not have to match the main unit in size, as
all the mentioned units are compatible.
CP40/50 color DS40(color/B&W) / DS50(color)
Power
Ground 15 meters of cable (not extendable) Power
Ground

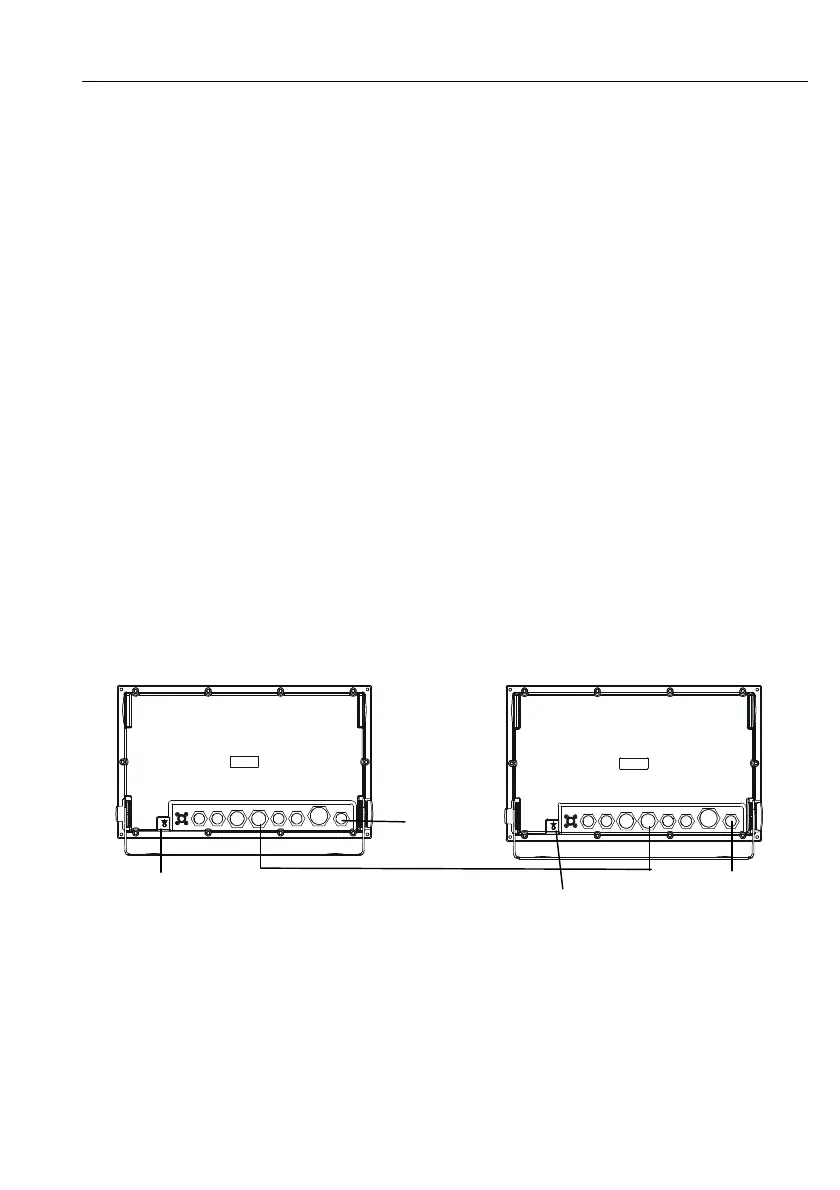

A special connection cable of 15 meters with two male plugs is supplied with the
DS40/50. Push one of the male plugs into the receptacle marked NMEA1 on
the back of the CP40/50 and the second into the DS40/50. The NMEA1 interface
from the main unit is transferred to the dual station via the connection cable and
is available on the dual station’s NMEA2 receptacle.
F Refer to section 8.6 for details on pin numbers.
ANT WIND ALARM NMEA2 NMEA1 ECHO1 ECHO2 RADAR PWR
ANT WIND ALARM NMEA2 NMEA1 ECHO1 ECHO2 RADAR PWR
