Application function
s
7
C550
7-6
“Red” parameter
This parameter can be used to adjust
the degree of red in the image to
one
of 19 levels.
For details on the setting pro
cedure, refer to page
7-57.

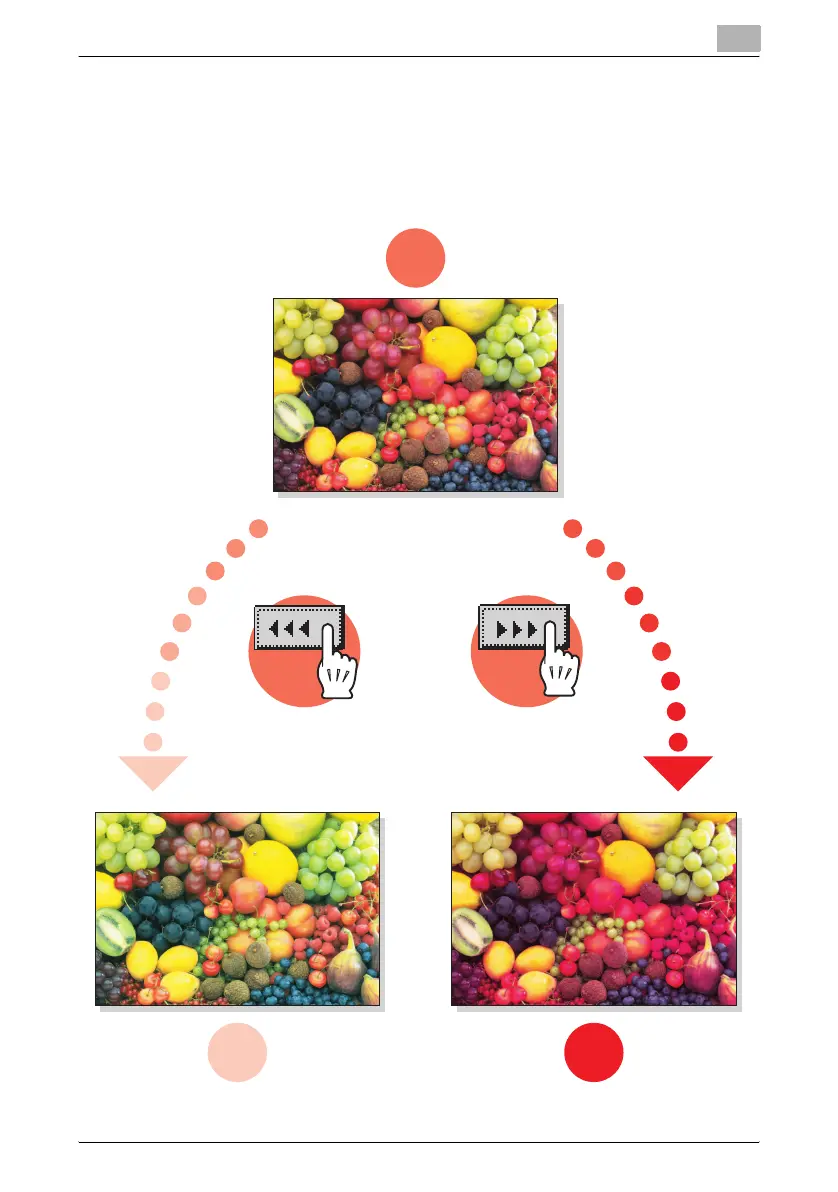

Sample images
+
3
Original
–
3
421
423
