Before making copies
1
C550 1-23

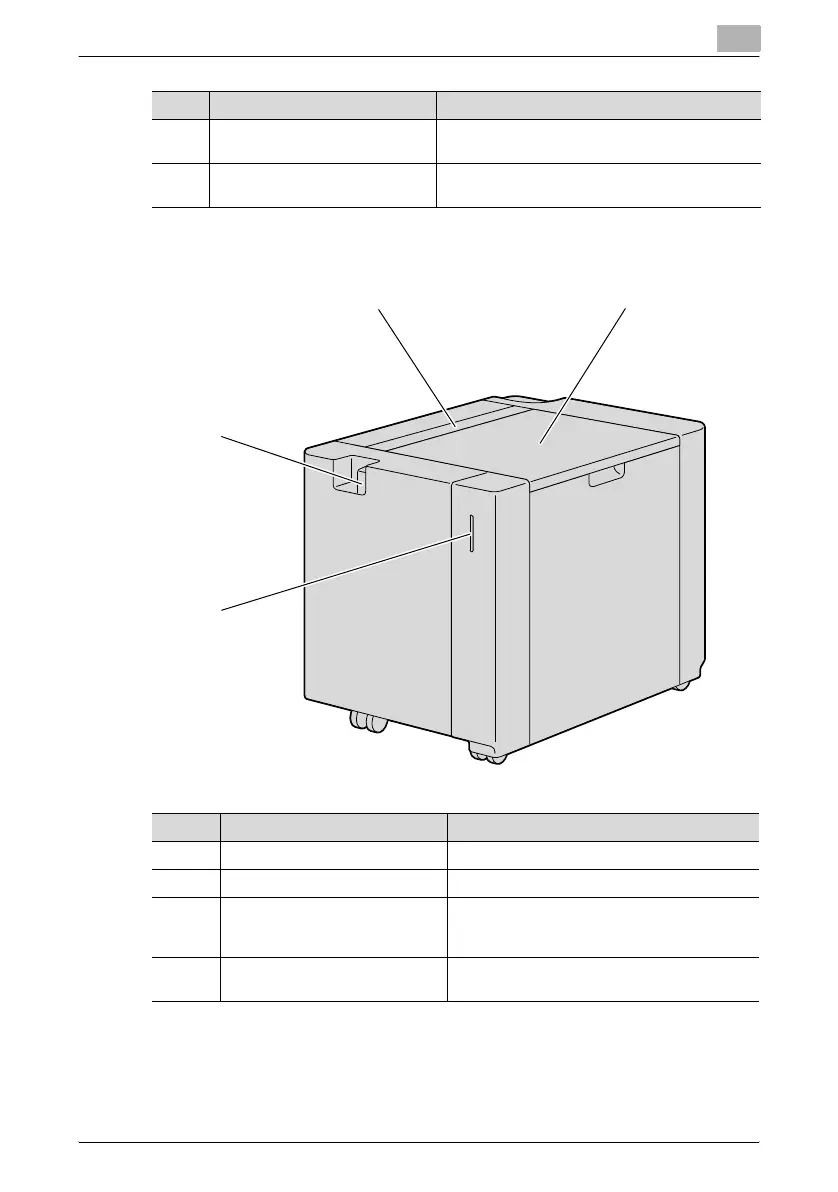

Large capacity unit LU-301
5 Upper tray paper guide Slide to fit the size of paper being loaded when
loading with cover sheets.
6 Upper unit release lever Raised to slide the upper unit to the left when
clearing paper misfeeds.
No. Part name Description
No. Part name Description
1 Misfeed-clearing cover Opened when clearing paper misfeeds.
2 Upper door Opened when loading paper.
3 Paper-empty indicator Flashes in orange when very few pages remain
in the paper tray, and lights up when the tray is
empty.
4 Large capacity unit release lever Used to slide the large capacity unit away from
the machine.
1
2
4
3
