1.1 Preparations for Installation
1-3
1.1.2 Checking Maintenance Space
Check that maintenance space shown below can be secured at the installation location.

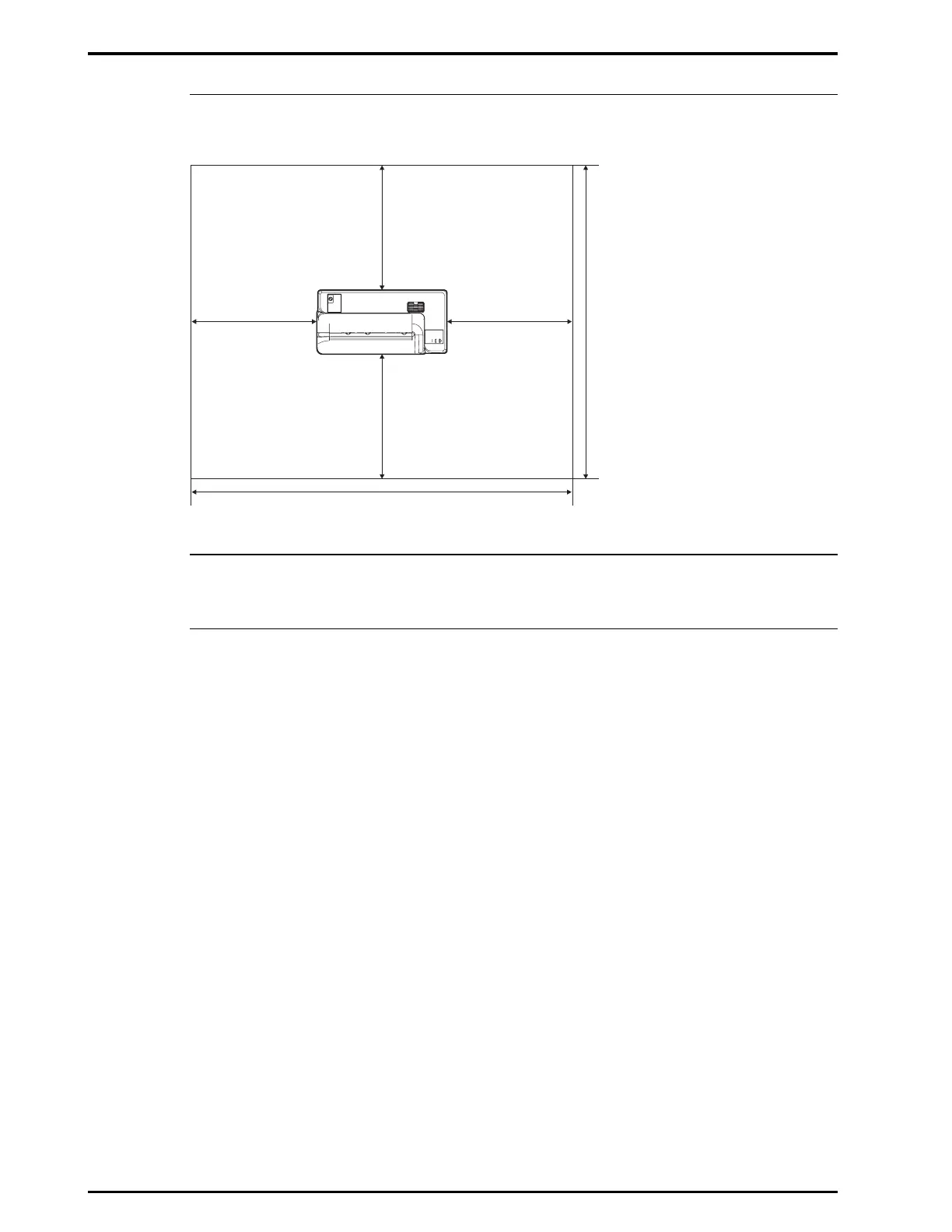

Maintenance Space
1.1.3 Checking Power Requirements
Check that the wall outlet that meets the requirements is provided in the installation location.
1.1.4 Checking Route for Power Cable and Network Cable
Check with a person in charge of the facility on the following points .
• Position of the hub to which the unit is connected, route for Ethernet cable, and the necessary cable
length.
• Position of the wall outlet (3P) into which the unit is to be plugged into, the route for the power cable,
and the length of the requird power cable. Furthermore, check that the power cable can be safely
laid, for example, so that it will not be routed over the passage.
600mm minimum 600mm minimum
600mm minimum
600mm minimun
1940mm minimum
1565mm
miminum
