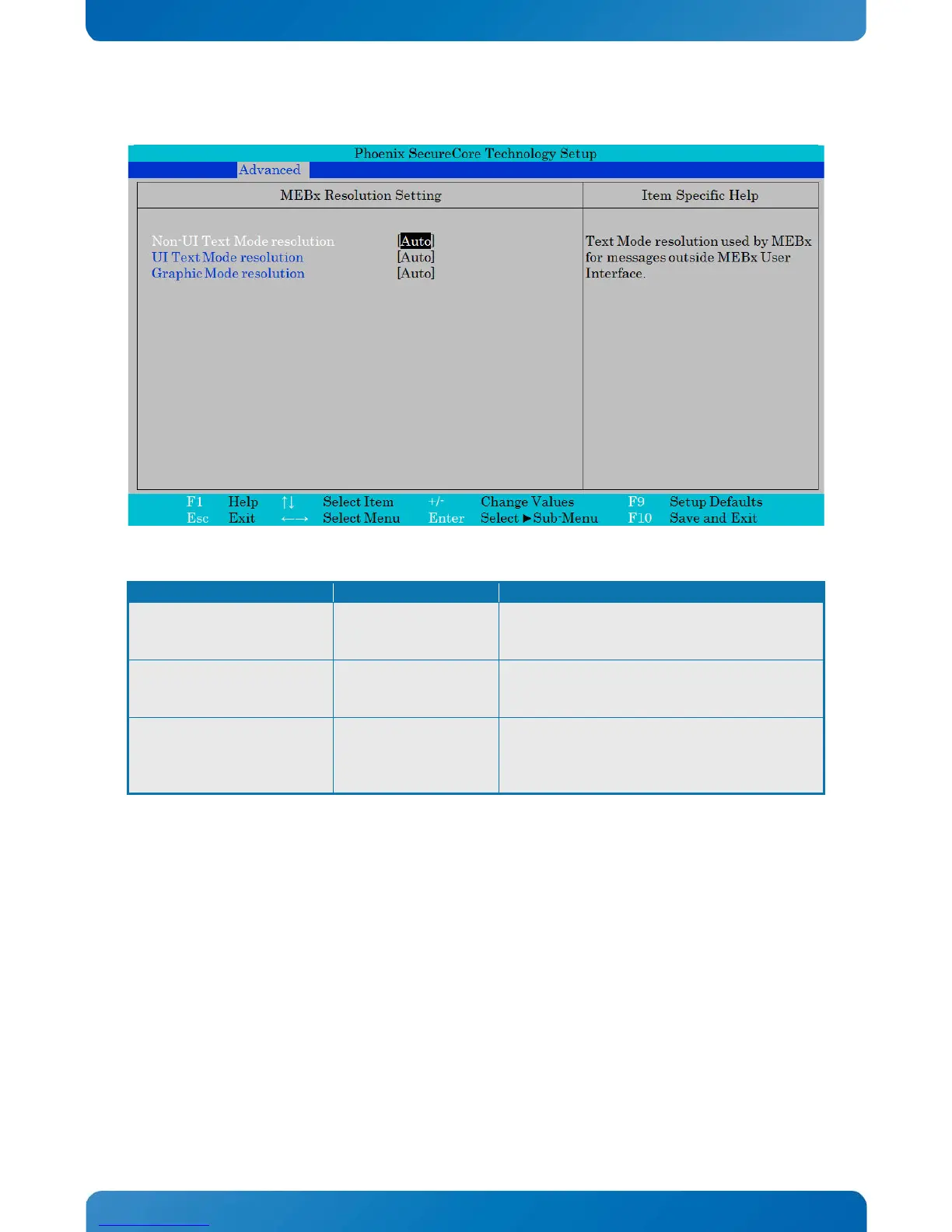

MEBx Resolution Setting
Phoenix SecureCore Technology Setup
Advanced
MEBx Resolution Setting Item Specific Help
Non-UI Text Mode resolution
UI Text Mode resolution
Graphic Mode resolution
[Auto]
[Auto]
[Auto]
Text Mode resolution used by MEBx
for messages outside MEBx User
Interface.
F1
Help
↑↓
Select Item
+/-
Change Values
F9
Setup Defaults
Esc
Exit
←→
Select Menu
Enter
Select ►Sub-Menu
F10
Save and Exit
Function
Selection
Description
Non-UI Text Mode resolution
Auto
80X25
100X31
Text Mode resolution used by MEBx for messages
outside MEBx User Interface.
UI Text Mode resolution
Auto
80X25
100X31
Text Mode resolution used by MEBx to display
the User Interface forms.
Graphic Mode resolution
Auto
640X480
800X600
1024X768
Graphic Mode resolution used by MEBx to display
boxes like consent sprite.
