4.2. Connector Panel Side

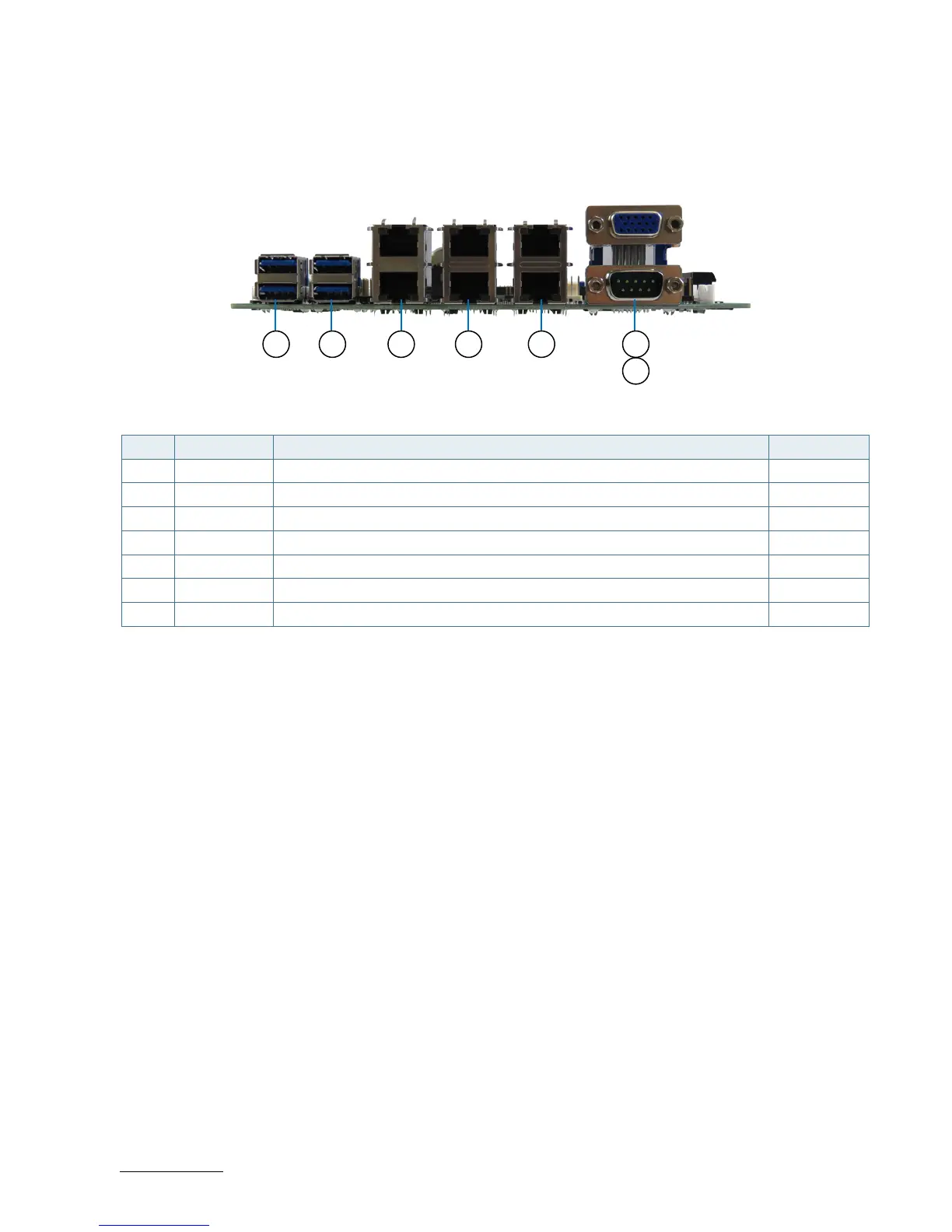

Figure 3: Connector Panel Side
Table 10: Connector Panel Side Connector List
Item Designation Description See Chapter
1 CN18 GbE LAN1, 2 RJ45 Connector 6.2
2 CN19 GbE LAN3, 4 RJ45 Connector 6.2
3 CN20 GbE LAN5, 6 RJ45 Connector 6.2
4 CN22 USB 3.0 Port 3, 4 Connector 6.3
5 CN23 USB 3.0 Port 1, 2 Connector 6.3
6 CN24 VGA Connector 6.1
7 CN26 RS232/422/485 COM1 Connector 6.4
1 2 5 4 3 6
7
