7.8. PS/2 Keyboard and Mouse Wafer (CN21)
Attachment of a PS/2 keyboard / mouse can be done through the pinrow connector CN21. Both interfaces utilize
open-drain signalling with on-board pull-up.

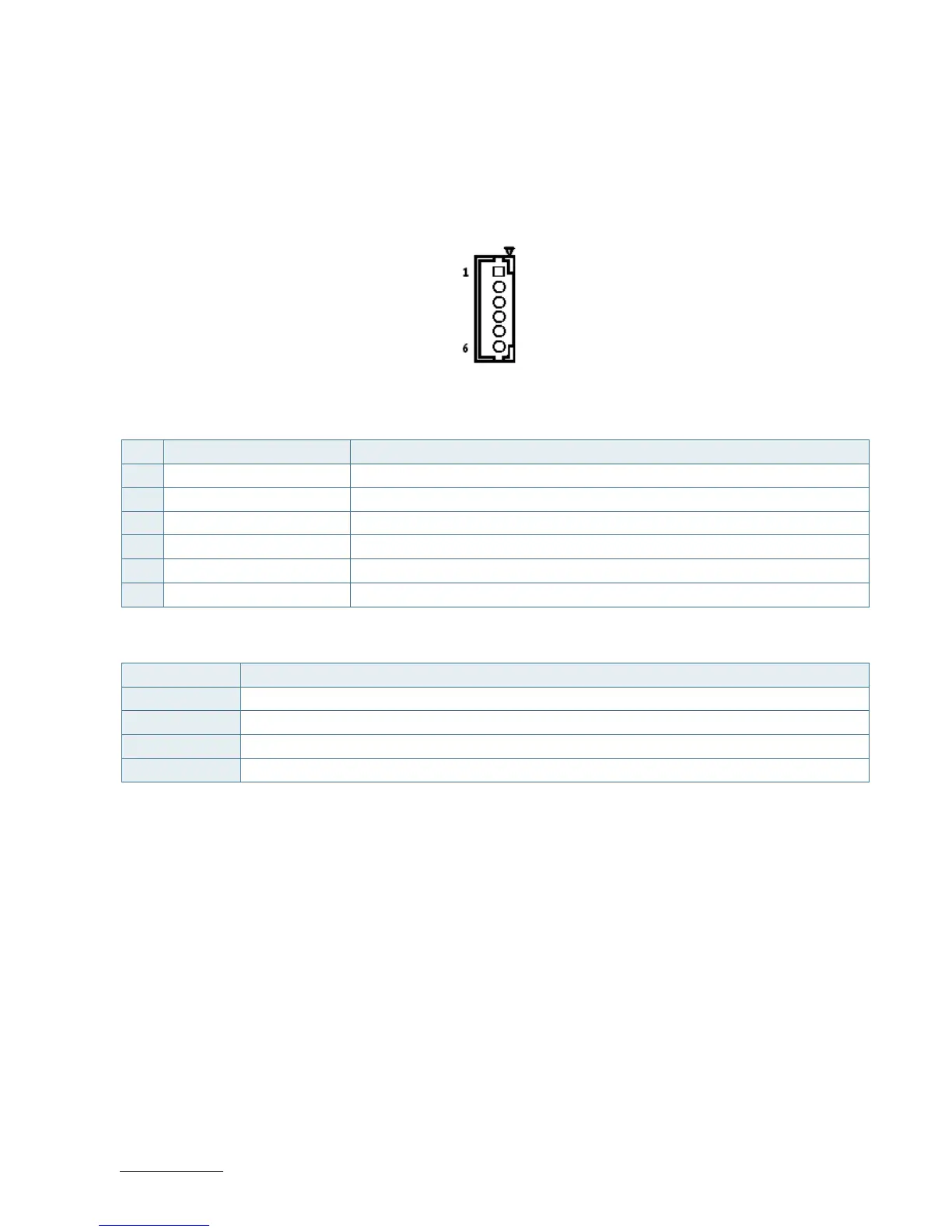

Figure 18: PS/2 Keyboard / Mouse Wafer CN21
Table 33: Pin Assignment CN21
Pin Signal Note
1 MSCLK
2 VCC
3 MSDAT
4 KBDAT
5 GND
6 KBCLK
Table 34: Signal Description
Signal Description
MSCLK Bi-directional clock signal used to strobe data/commands from/to the PS/2 mouse.
MSDAT Bi-directional serial data line used to transfer data from or commands to the PS/2 mouse.
KBCLK Bi-directional clock signal used to strobe data/commands from/to the PC-AT keyboard.
KBDAT Bi-directional serial data line used to transfer data from or commands to the PC-AT keyboard.
