7.7. Digital Input / Output Wafer (CN15)

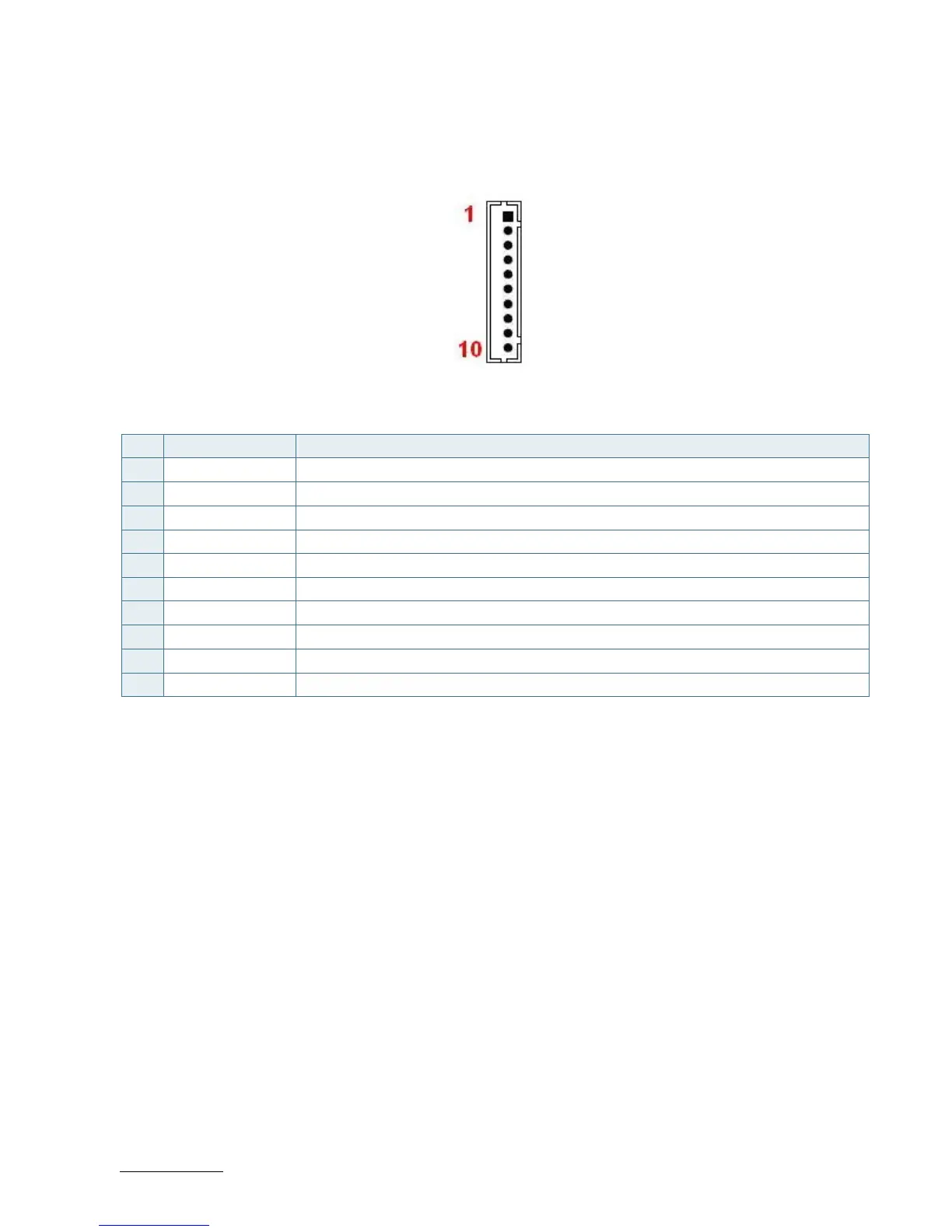

Figure 17: Digital Input / Output Wafer CN15
Table 32: Pin Assignment CN15
Pin Signal Note
1 +5V
2 DIO_0
3 DIO_1
4 DIO_2
5 DIO_3
6 DIO_4
7 DIO_5
8 DIO_6
9 DIO_7
10 GND
