6/ I/O-Area Connectors
6.1. VGA Connector (CN24)
The external I/O connector panel supports one DB-15 VGA female port.

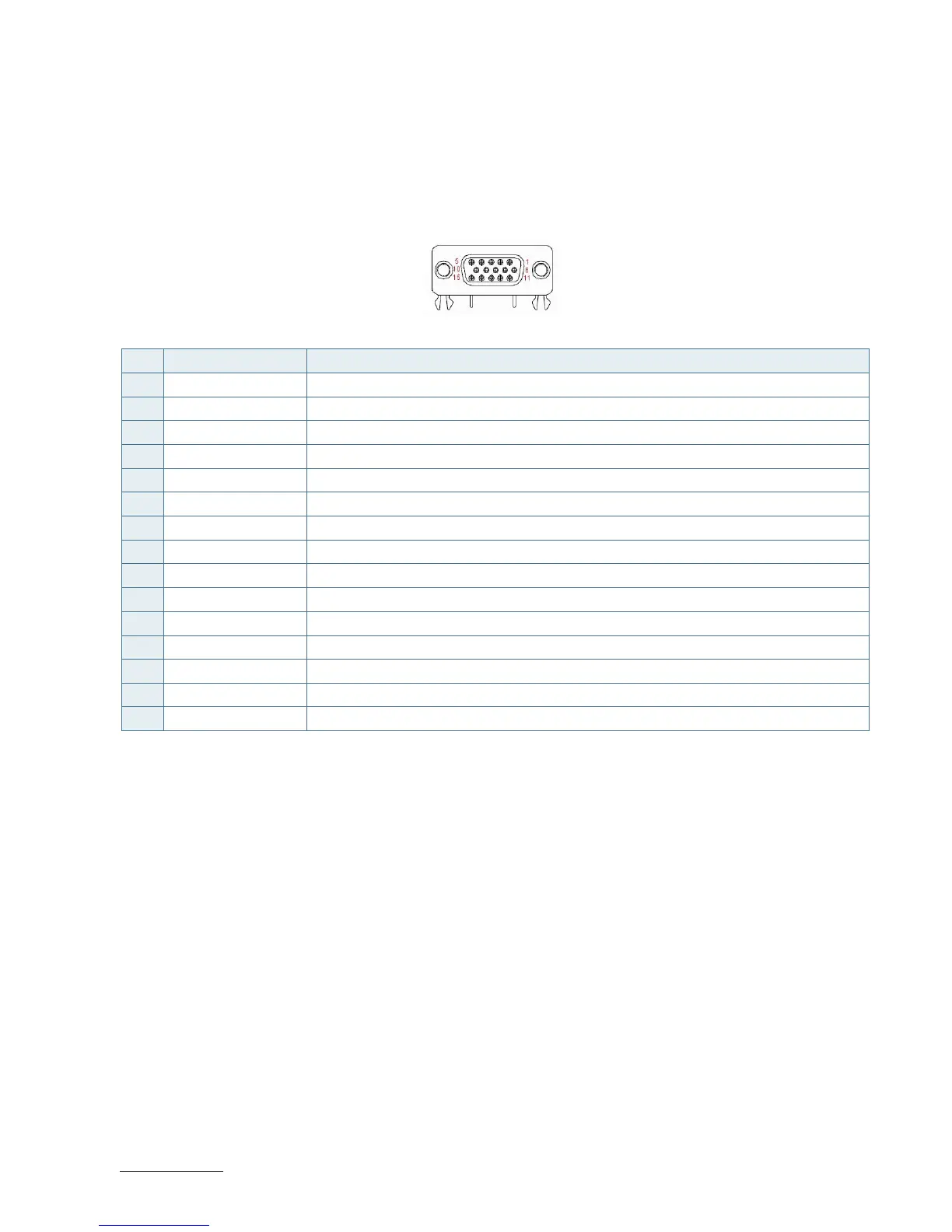

Figure 4: VGA Connector CN24
Table 11: Pin Assignment VGA Connector CN24
Pin Signal Description
1 Red Analogue output carrying the red colour values. (75 Ohm cable impedance).
2 Green Analogue output carrying the green colour values. (75 Ohm cable impedance).
3 Blue Analogue output carrying the blue colour values. (75 Ohm cable impedance).
4 NC No Connection
5 GND Ground
6 GND Ground
7 GND Ground
8 GND Ground
9 VCC 5V supply input
10 GND Ground
11 NC No Connection
12 DDC data Display Data Channel Data. Used as data signal to/from monitors with DDC interface.
13 HSYNC CRT horizontal synchronization output.
14 VSYNC CRT vertical synchronization output.
15 DDC clock Display Data Channel Clock. Used as clock signal to/from monitors with DDC interface.
