7.9. M.2 Key-B SSD Slot (M2B1)
The mITX-DNV supports M.2 modules in format 2242 with Key B. The M.2 specification enables one SATA3.0 (6 Gb/s)
SSD socket to be exposed.

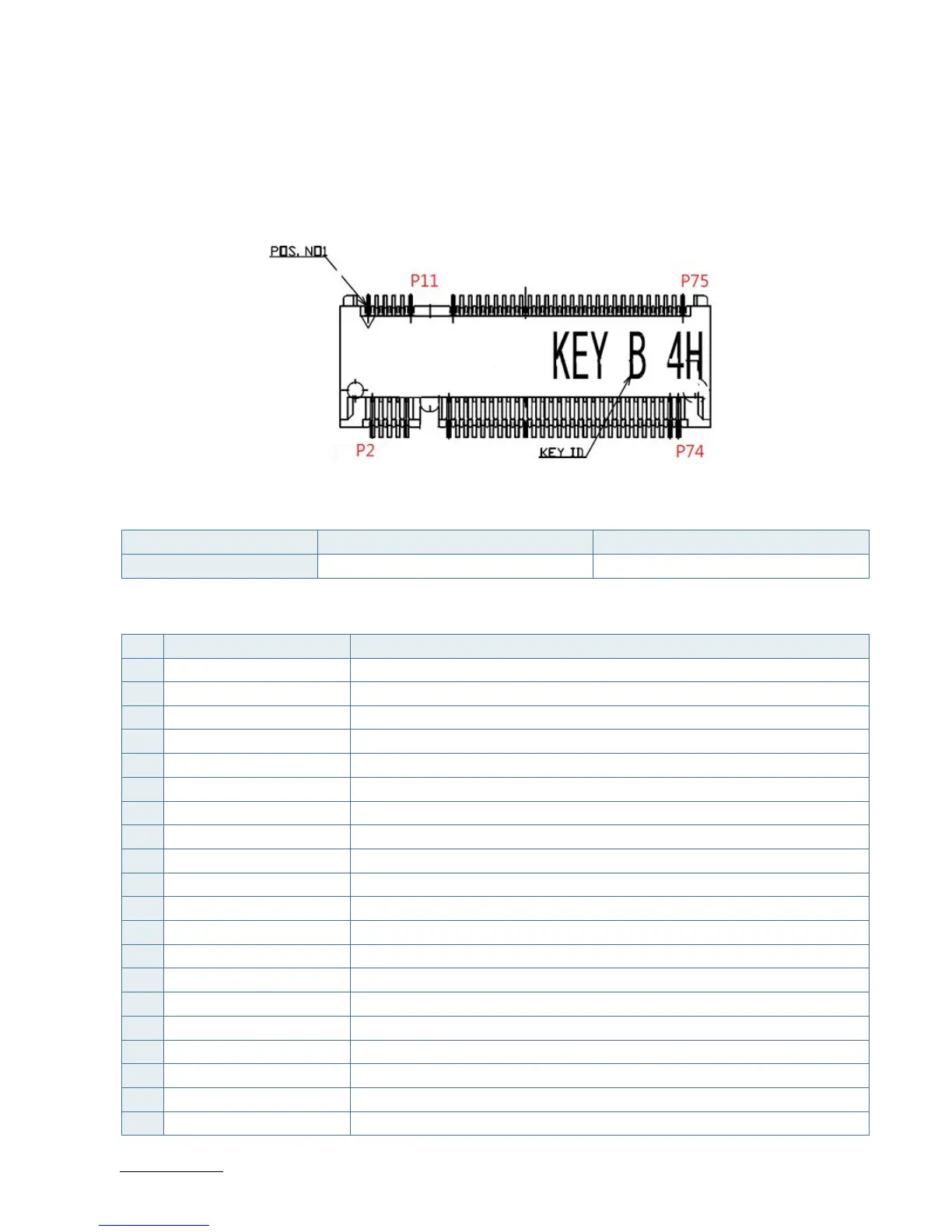

Figure 19: M.2 Key-B SSD Slot M2B1
SATA M.2 requires the following BIOS depending on the class code options below.
M.2 SSD Boot Storage
SATA M.2 SSD Supported Supported
Table 35: Pin Assignment CON1
Pin Signal Note
1 -
2 +3.3V
3 GND
4 +3.3V
5 GND
6 -
7 -
8 -
9 -
10 -
11 GND
12 KEY B
13 KEY B
14 KEY B
15 KEY B
16 KEY B
17 KEY B
18 KEY B
19 KEY B
20 -
