7.10. mPCIe / mSATA Socket (MPCIE1)
Full-sized Mini-PCI Express V1.2 socket (MPCIE1). Socket MPCIE1 supports mPCIe, mSATA, USB2.0 and SIM-card socket.
The SIM-card socket makes it possible to use a 3G/4G-wireless modem in this mPCIe slot. The USB does support
WAKE function.

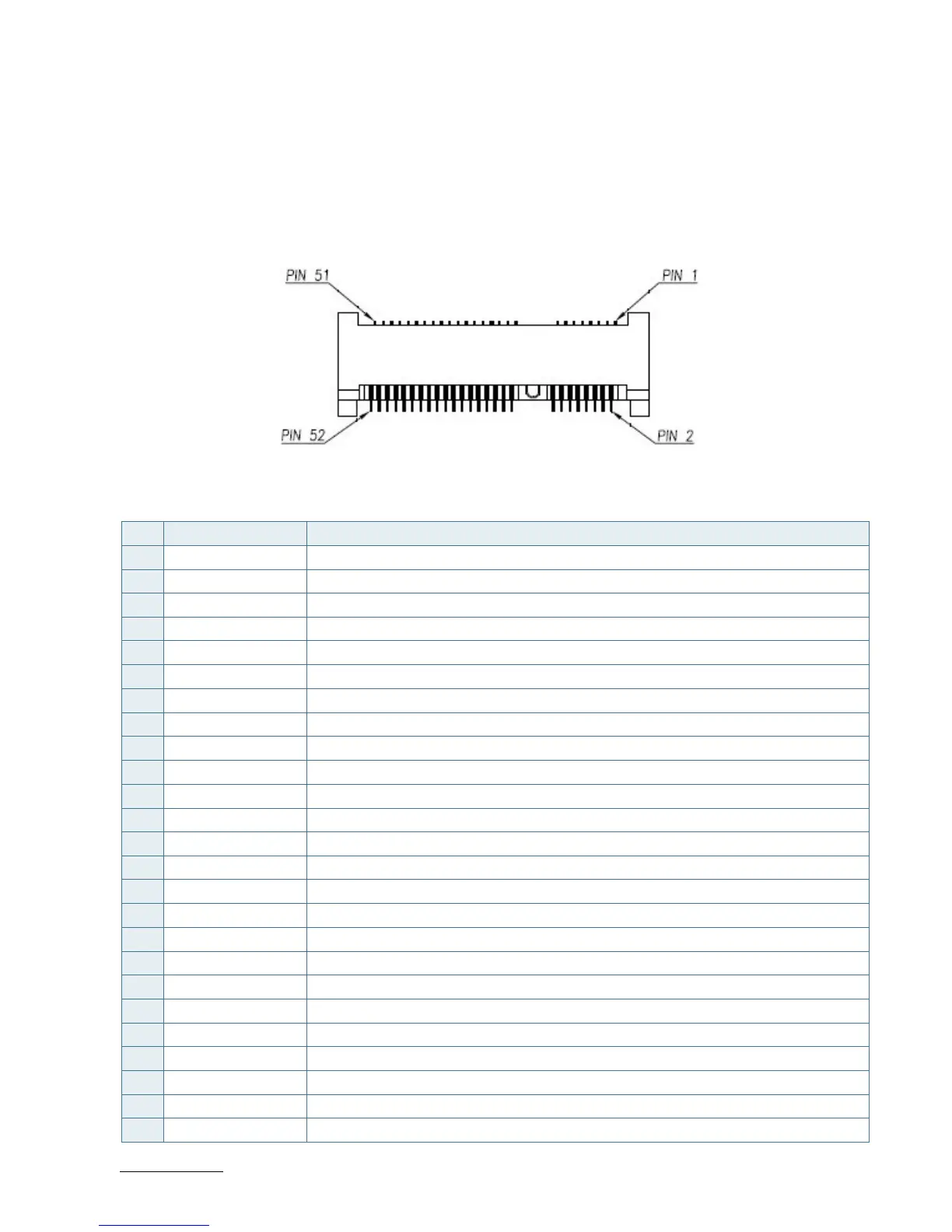

Figure 20: mPCIe Socket MPCIE1
Table 36: Pin Assignment MPCIE1
Pin Signal Note
1 WAKE#
2 +3.3VSB / +3.3V*
3 Reserved
4 Ground
5 Reserved
6 +1.5V
7 CLKREQ#
8 UIM_PWR**
9 Ground
10 UIM_DATA**
11 REFCLK-
12 UIM_CLK**
13 REFCLK+
14 UIM_RESET**
15 Ground
16 UIM_VPP**
17 Reserved
18 Ground
19 Reserved
20 W_Disable#
21 Ground
22 PERST#
23 PERn0 / SATA_RX+*
24 +3.3VSB / +3.3V*
25 PERp0 / SATA_RX-*
