Connecting the damper pedal |15
02 Setting up the
accessories
Connecting the damper pedal
Use the PEDAL connector to connect the supplied Korg DS2H damper pedal.
This pedal supports all the nuances of half-pedaling on some Grand Piano
sounds. You can experiment how it works by gradually pressing it down, and
gradually releasing it, while playing one of the Grand Piano RX Sounds.
Connecting the headphones
Connect a pair of headphones to the PHONES/AUDIO OUT connector. You
can use headphones with an impedance of 16-200 Ohms (50 Ohms sug-
gested). When connecting the headphones, the speakers are automatically
deactivated.
Adjust the output level with the VOLUME knob.

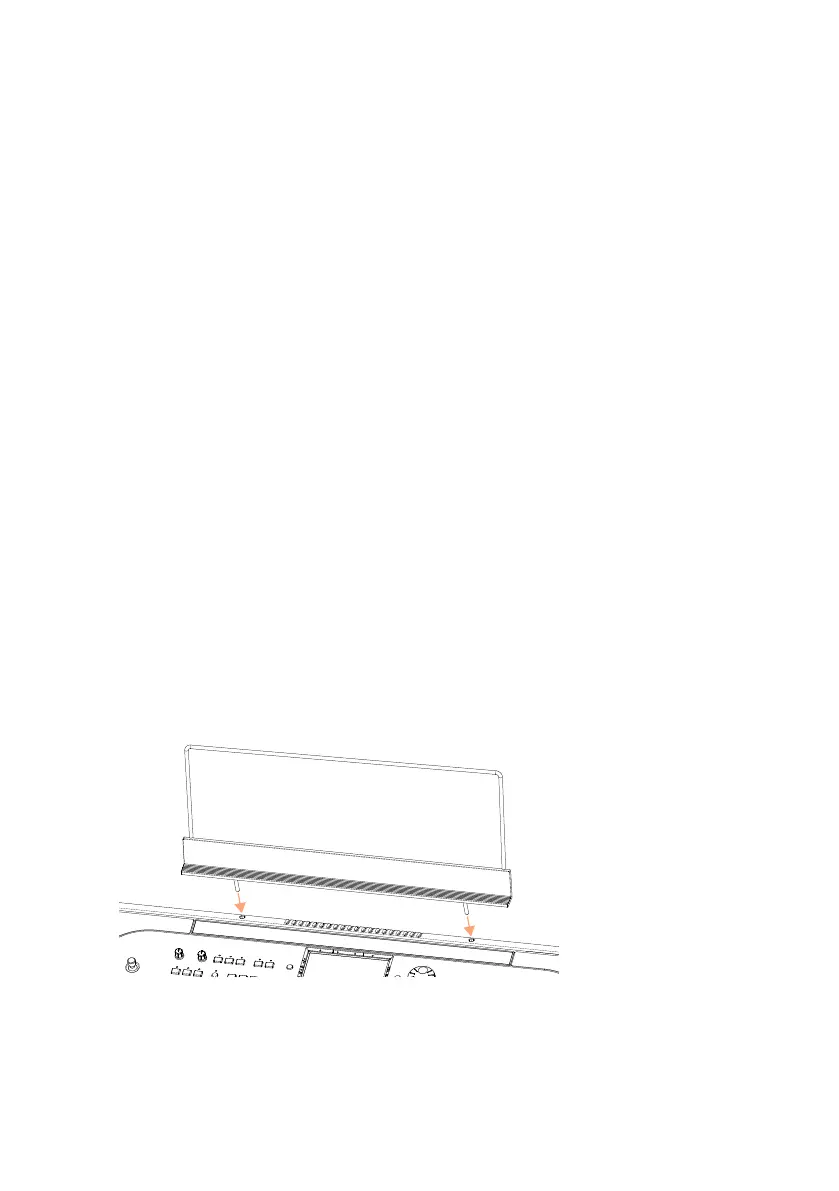

Assembling the music stand
To assemble the music stand, insert its legs into the dedicated holes on the
back of the instrument.
