Korg PA4X User Manual

Choosing the Sound sets |39

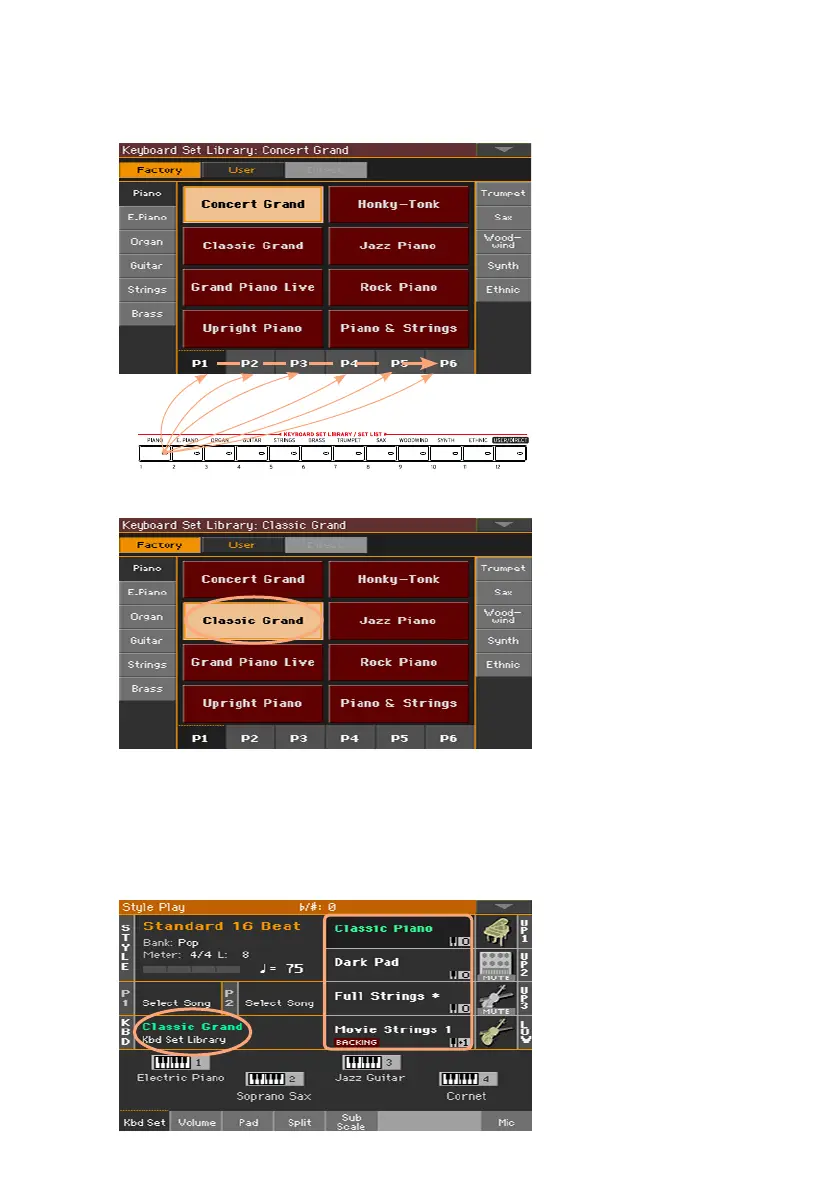

press the button of the selected group of Keyboard Sets in the KEYBOARD
SET LIBRARY section of the control panel.
4 Touch the name of the Keyboard Set you want to choose.
5 If you want to close the Keyboard Set Library Select window (and it does
not close by itself), press the EXIT button.
In the end, you will see the name of the selected Keyboard Set in the dedi-
cated area of the Main page. The Sounds assigned to the keyboard (shown in
the right half of the display) will change.

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
