Korg PA4X User Manual

Choosing different Sounds |47
Choosing different Sounds
Choosing Sounds
You can assign different Sounds to the keyboard. The new combination of
Sounds can then be written into a Keyboard Set.
Open the Sound Select window from the control panel
▪ Press the KEYBOARD SOUNDS > SELECT button corresponding to the
Sound you want to change.
Open the Sound Select window from the display
1 Be sure to be in the main page of the Style Play or Song Play mode. If you
are not there, press either the STYLE PLAY or the SONG PLAY buttons in
the control panel.
2 Touch the name of the Sound you want to change to select it.
3 Touch a second time the name of the Sound you want to change.

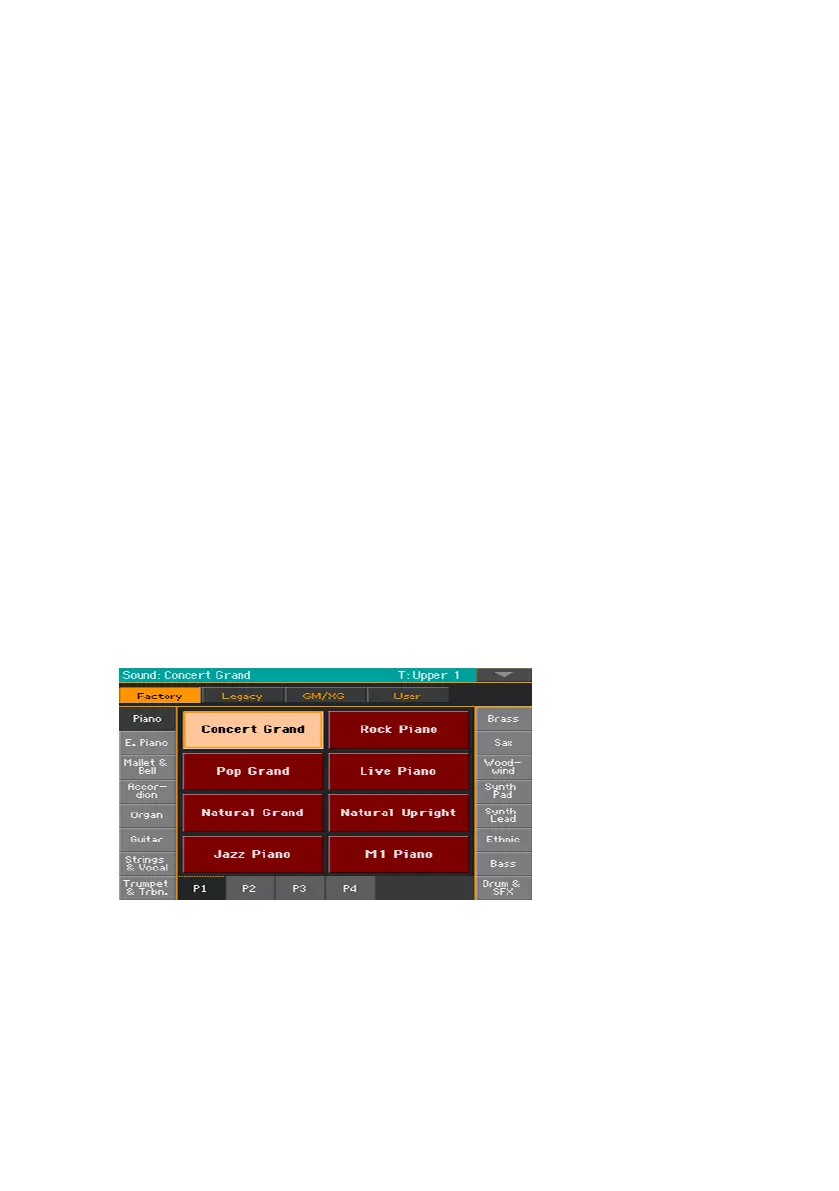

Choose a Sound
1 Browse through the Sounds in the Sound Select window.

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
