Korg PA4X User Manual

Choosing different Sounds |49

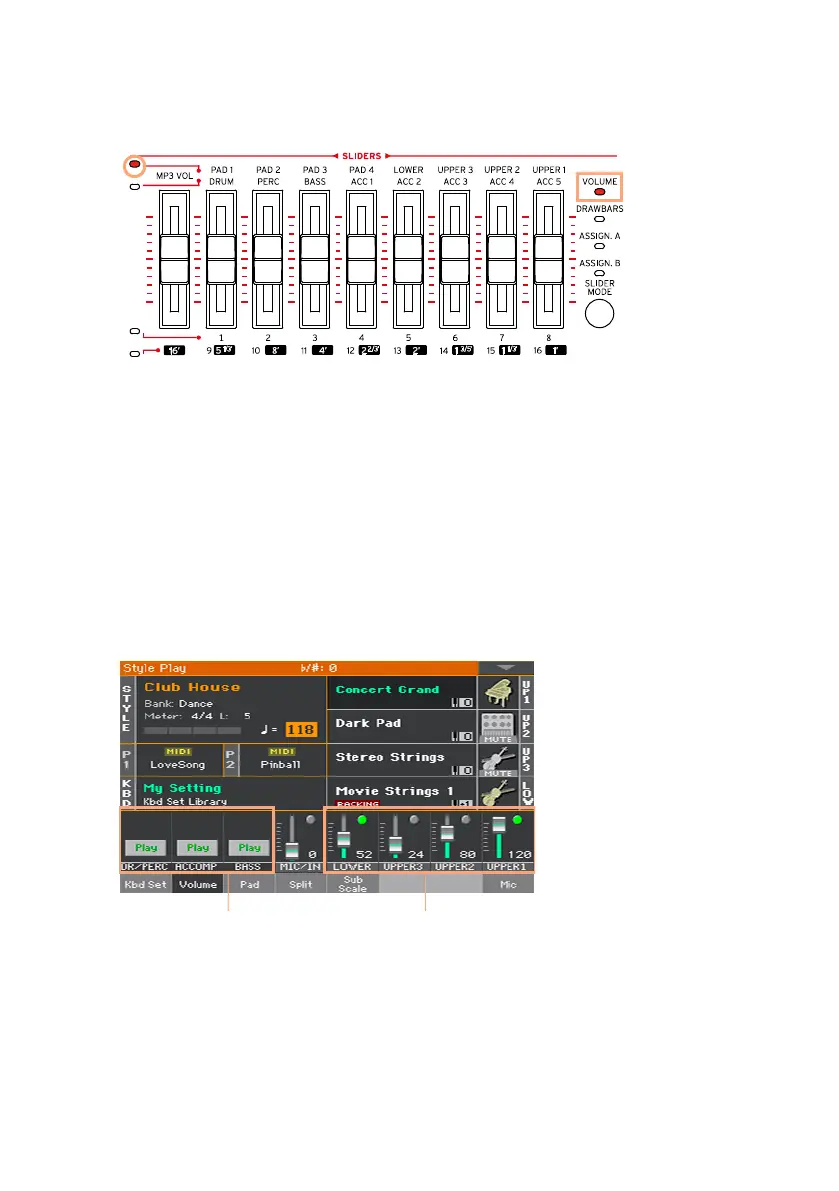

2 Be sure the upper SLIDER indicator (PAD1 … UPPER 1) indicator is turned on,
otherwise press the TRACK SELECT button to turn it on.
3 Use the sliders to adjust the volume of the corresponding Sounds.
4 Keep the SHIFT button pressed, and move any of the sliders to proportion-
ally change the volume of all similar Sounds.
For example, moving any of the UPPER sliders proportionally changes the
volume of all the Upper Sounds; moving one of the sliders corresponding
to an Accompaniment Sound proportionally changes the volume of all the
Accompaniment Sounds.
Adjust a Sound’s volume from the display
1 While in the Main page, touch the Volume tab to select the Volume pane.
Accompaniment
Groups
Keyboard Sounds
2 Touch the mixer channel whose volume level you want to change.
3 Keep the virtual volume slider held on the screen, and drag it to the desired
level.
As an alternative, use the VALUE controls to change the volume level of the
selected channel.

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
