Korg SGPROX User Manual

45
Performance Edit mode
LAYER SPLIT VEL SW GM_A GM_B RESET
BANK(MSB) (–) – (–) – (–) – 056 000 000
BANK(LSB) (–) – (–) – (–) – 000 000 000
PROGRAM (–) – (–) – (–) – (1) 000 (1) 000 (1) 000
SW/CHANNEL (ON) – (ON) – (ON) – (ON) TimbNo (ON) TimbNo (ON) TimbNo
LEVEL (–) – (–) – (–) – 100(100) 100(100) (127) 127
TRANSPOSE (–) – (–) – (–) – (00) 00 (00) 00 (00) 00
TUNE (–) – (–) – (–) – (00) 00 (00) 00 (00) 00
PANPOT (–) – (–) – (–) – (CNT) 64 (CNT) 64 (CNT) 64
RANDOM PAN – – – --- --- ---
KEY BOTTOM (C–1) C–1 (Divide) Divide (C–1) C–1 (C–1) C–1 (C–1) C–1 (C–1) C–1
KEY TOP (G9) G9 (Divide) Divide (G9) G9 (G9) G9 (G9) G9 (G9) G9
VEL BOTTOM (1) 1 (1) 1 (Divide) Divide (1) 1 (1) 1 (1) 1
VEL TOP 127 (127) 127 (127) (Divide) Divide (127) 127 (127) 127 (127) 127
A.WHEEL 1 FILT – – – ENA ENA ENA
A.WHEEL 2 FILT – – – ENA ENA ENA
A.CONT 1 FILT – – – ENA ENA ENA
A.CONT 2 FILT – – – ENA ENA ENA
A.CONT 3 FILT – – – ENA ENA ENA
A.CONT 4 FILT – – – ENA ENA ENA
A.PEDAL FILT – – – ENA ENA ENA
A.PEDAL SW FIL – – – ENA ENA ENA
DAMPER FILT (–) – (–) – (–) – (ENA) ENA (ENA) ENA (ENA) ENA
AFT TOUCH FILT – – – ENA ENA ENA
CONTROLLER FILT (–) (–) (–) (ENA) (ENA) (ENA)
FX1 ROUTING (–) (–) (–) (USE) (USE) (USE)
Procedure
1) Use the 〈CURSOR〉 switches to select “[” and make it
blink.
2) Use the 〈VALUE〉 switches to move it between 6 and 7.
3) Use the 〈CURSOR〉 switches to select “]” and make it blink.
4) Use the 〈VALUE〉 switches to move it between A and B.
5) Use the 〈CURSOR〉 switches to select “123456” to make it blink.
6) Use the 〈VALUE〉 switches to turn the display to “......”
7) Use the 〈CURSOR〉 switches to make Type blink.
8) Use the 〈VALUE〉 switches to select “SPLIT.”
9) Use the 〈CURSOR〉 switches to make “OK?” blink.
10) Press 〈+1/YES〉 to get the “Are You Sure OK?” display.
11) Press 〈+1/YES〉 to execute the setting and get the “Completed” display.
How the velocity range is divided by VEL SW
The locations at which the division will occur will depend on the number of timbres. Lower-numbered
timbres (in the order of 1 to 8, A, B) will be assigned to a lower velocity range.
Example:With a display of “AB[123]45678” if you selected VEL SW, the entire velocity range would be
divided into three ranges, with timbre 1 assigned to the low range (velocity 1 to 42), timbre 2 to the
middle range (velocity 43 to 84), and timbre 3 to the high range (velocity 85 to 127). In this case,
the settings of other timbres will not change.
Procedure
1) Use the 〈CURSOR〉 switches to select “[” and make it
blink.
2) Use the 〈VALUE〉 switches to move it between B and 1.
3) Use the 〈CURSOR〉 switches to select “]” and make it blink.
4) Use the 〈VALUE〉 switches to move it between 3 and 4.
5) Use the 〈CURSOR〉 switches to select “AB 45678” and make sure that they are blinking.
List of macro settings
Settings in ( ) are for timbres A and B — : The setting before macro execution will be maintained Divide : Divide the range by the specified number of timbres.
Timbre No. : Set to the same value as the number of each timbre (Timbre 1 to 8 only)

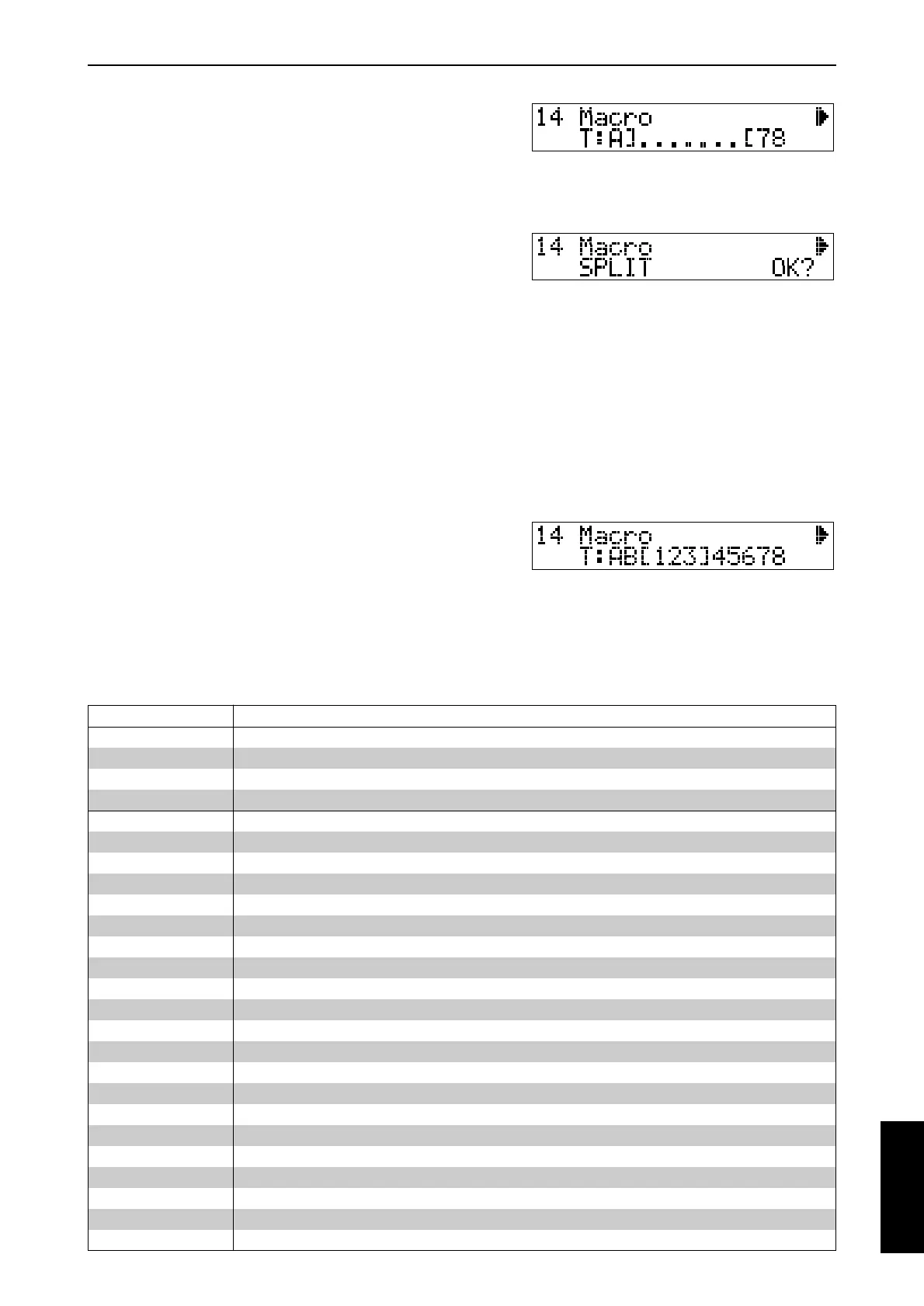

Resulting display after steps 7) through 9)
Resulting display after steps 1) through 5)
Resulting display after steps 1) through 6)
(A) (A) (A)
