48
Performance Edit mode
Timbre A
Press SS1 (Timbre) ...................................................... select TIMBRE A
Press SS2
(Program for internal tone generator timbre A).... select program A01
Press SS3 (Internal tone generator used/unused)..................... select ON
Press SS4 (Output level) ........................................................... set to 127
Press SS5 (Pitch)............................................. set Trans=+00, Tune=+00
Press SS6 (Panning).....................................................set to PROGRAM
Press SS7 (Note range) ....................................... set BTM=A0, TOP=B5
Press the CURSOR switch (Velocity Zone) ........ set BTM=1, TOP=127
Press SS8 (Damper/Sostenuto) ................................................ select DIS
Press the CURSOR switch (Controller) ................................select ENA
Press the CURSOR
switch (Effect Routing) .... send Timbre B through FX1
In the same way, make settings for timbre B. You could make the settings in the same way as you did for timbre
A, but since the settings will be essentially the same, you can speed things up by using the Timbre Copy function.
Press SS12 (Timbre Copy) ...... Copy the settings of timbre A to timbre B
Press SS1 (Timbre) ...................................................... select TIMBRE B
Press SS2
(Program for internal tone generator timbre B) .... select program A02
Next make settings for timbres 1 to 4.
In this example we will use timbres 1 and 2 for the external tone generators, and timbres 3 and 4 for the external
effect units.
Press SS1 (Timbre) ....................................................... select TIMBRE 1
Press SS2 (Synthesizer program).......... select BNK=000,000, PRG=000
Press SS3 (MIDI channel) ...................................................... select A-01
Press SS4 (Output level) ........................................................... set to 127
Press SS5 (Pitch)............................................. set Trans=+00, Tune=+00
Press SS6 (Panpot)....................................... set to “---” (not transmitted)
Press the CURSOR
switch (Panpot/Random) .....set to “---” (not transmitted)
Press SS7 (Key Zone) ......................................... set BTM=C5, TOP=C8
Press the CURSOR switch(Velocity Zone) ......... set BTM=1, TOP=127
Press SS8 (Controllers) ...................................................... set all to ENA
In the same way, make settings for timbre 2. You could make the settings in the same way as you did for timbre 1, but
since the settings will be essentially the same, you can speed things up by using the Timbre Copy function.
Press SS12 (Timbre Copy) ............................... copy the T1 settings to T2
Press SS1 (Timbre) ....................................................... select TIMBRE 2
Press SS2 (Sound module program) ..........set BNK=000,000, PRG=000
Press SS3 (MIDI channel) ...................................................... select A-02
Press SS7 (Key Zone) ......................................... set BTM=C5, TOP=C8
Press CURSOR switch (Velocity Zone) ............ set BTM=64, TOP=127
Next make settings for timbres 3 and 4
Press SS1 (Timbre) ....................................................... select TIMBRE 3
Press SS2 (Program of effect unit 1) .........set BNK=000,000, PRG=000
Press SS3 (MIDI channel) ...................................................... select B-01
Press SS4 (Output level) ............................. select “---” (not transmitted)
Press SS5 (Pitch)........................................................ setting not required
(ignored, since external device does not sound)
Press SS6 (Panpot)...................................... select “---” (not transmitted)
Press CURSOR switch (Panpot/Random) . select “---” (not transmitted)
Press SS7 (Key Zone) setting not required
......................(ignored, since external device does not sound)
Press CURSOR switch (Velocity Zone) ................... setting not required
(ignored, since external device does not sound)
Press SS8 (Controllers) ...................................................... set all to ENA
Press SS12 (Timbre Copy) ................................................. copy T3 T4
Press SS1 (Timbre) ....................................................... select TIMBRE 4
Press SS2 (Program of effect unit 2) .........set BNK=000,000, PRG=000
Press SS3 (MIDI channel) ...................................................... select B-02

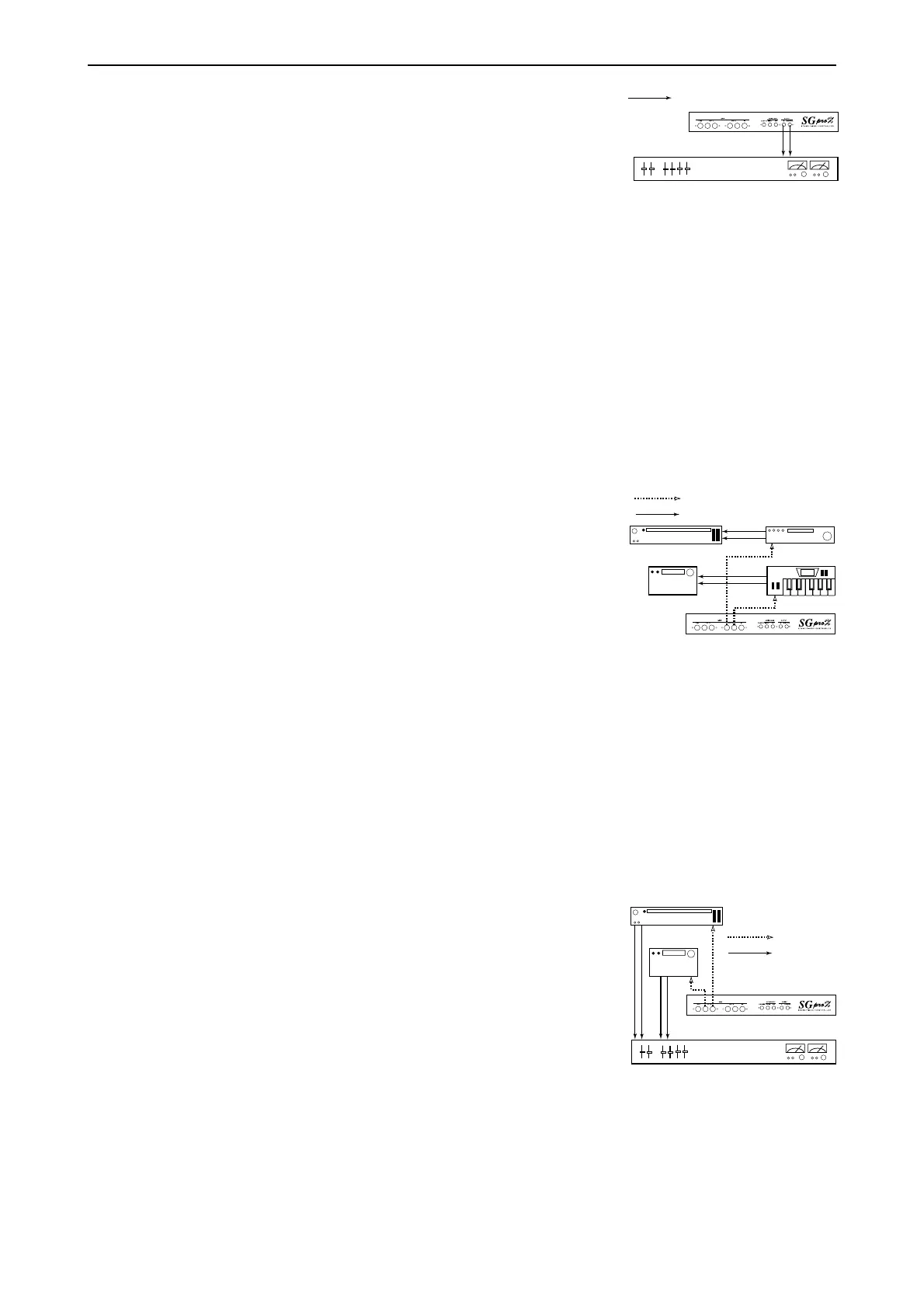

AUDIO LINE
Mixer, PA system etc.
MIDI LINE
AUDIO LINE
MIDI-compatible effect unit 2
MIDI-compatible
effect unit 1
Synthesizer
Tone generator module
MIDI LINE
AUDIO LINE
MIDI-compatible effect unit 2
MIDI-compatible
effect unit 1
Mixer, PA system etc.
