Editing effects and Valve Force
The TRITON Extreme provides five insert effects, two
master effects, and a three-band master EQ. For each
insert effect, you can choose from 102 types of effect
including filter, dynamics, pitch, modulation, delay, and
reverb. For each master effect you can choose from 89
types of effect.
By sending the signal through Valve Force (analog vac-
uum tube circuit) you can produce the rich overtones
and smooth distortion that are typical of vacuum tubes.
Working with the effect settings in
a program
1

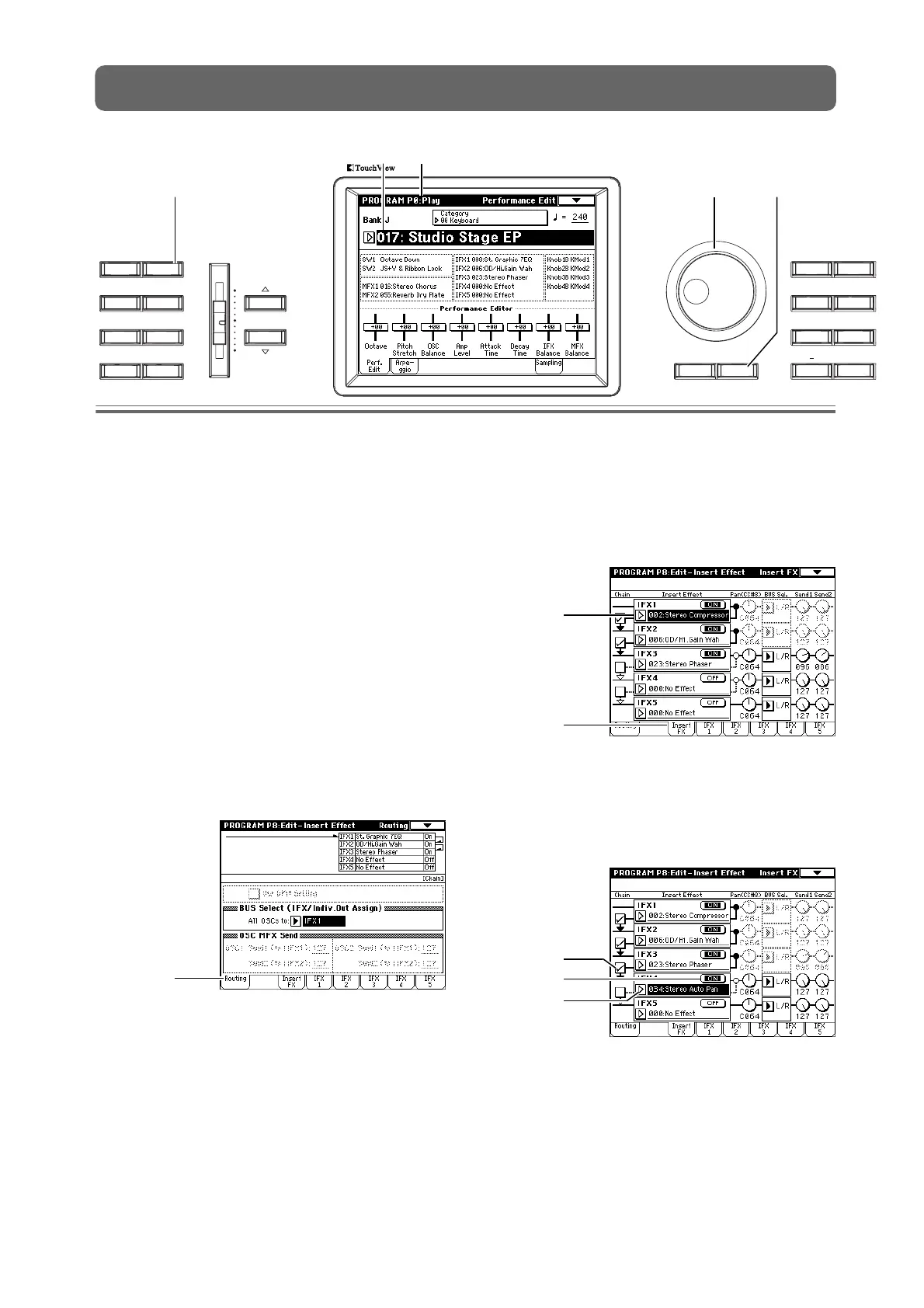

Select a program.
Press the [PROG] key to enter Program mode, and
select the bank J program 017: Studio Stage EP.
(☞p.4)
2
Access the P8: Edit-Insert Effect, Routing page.
Press the [MENU] key to access the page jump
menu, and then press the P8: Edit-Insert Effect but-
ton. Then press the Routing tab.
“BUS Select (IFX/Indiv. Out Assign)” specifies the
destination to which the output of the oscillator will
be sent. IFX1 is selected for this program, meaning
that the output of the oscillator will be sent to insert
effect 1. The output is shown as an arrow in the LCD
screen, indicating that the signal is being sent to
IFX1. This page also shows the type of effects used
by IFX1–IFX3. Notice that the arrow extending from
IFX1 points into IFX2, and that the arrow extending
from IFX2 points into IFX3. This shows that the
oscillator output is connected in series to these three
effects.
3
Access the P8: Edit-Insert Effect, Insert FX page.
Press the Insert FX tab. In this page you can select an
effect and specify how it is connected.
Let’s change the effect assigned to insert effect 1.
Press the popup button to choose an effect type by
category. For this example, select 002: Stereo Com-
pressor.
Now let’s add an additional effect. Check the
“Chain” check box located at the left of IFX3. This
connects IFX4 to our chain of effects. Press the IFX4
OFF button to turn it ON. Then select an effect.
How about 034: Stereo Auto Pan? Try selecting vari-
ous effects to find the best one for your purpose.
To adjust the effect depth and other effect settings,
use the IFX1–IFX5 tabs to select the appropriate
page, and adjust the various parameters. For details
on each effect, refer to PG p.217.
With the settings you’ve made here, the post-IFX4
“Pan (CC#8)” will adjust the panning to Output L/
R, and “Send1” and “Send2” will adjust the amount
of the oscillator output signal that is sent to master
effect 1 and 2.
VALUE
PROGCOMBI
SAMPLINGSEQ
GLOBALS.PLAY
COMPAREMEDIA MENUEXIT 0
21
54
87
1
3
2
1
1
2
1
1
1
4
22
31
32
33
34
35
