KRAL OMG Series User Manual

12 Servicing

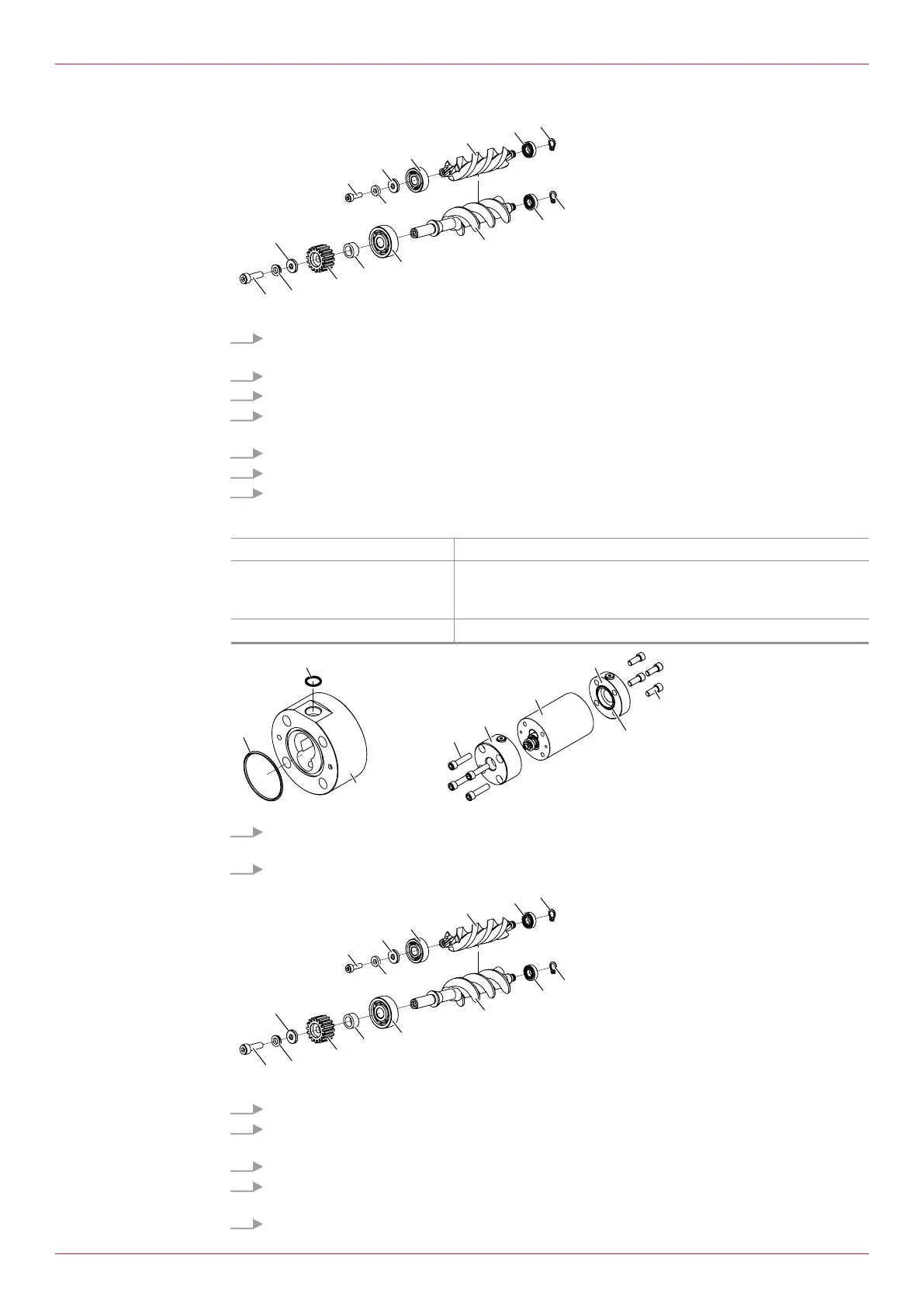

12.2 Replacing seals and ball bearings
11
12
14
13
15
16
17
18
19
20
21
22
23
24
25
26
4. Remove the circlip19 from the measuring screw large17 and remove the circlip20 from the
measuring screw small22.
5. Unscrew the socket screw26, remove the wedge lock washers25 and supporting ring24.
6. Unscrew the socket screw11, remove the wedge lock washers12 and supporting ring13.
7. Screw the socket screw11 completely back in, in order to pull the pole wheel14 from the meas-
uring screw large17 by using an extractor.
8. Remove the distance ring15 and remove the socket screw11 again.
9. Use the extractor to pull off the ball bearings16 and18 from measuring screw large17.
10. Use the extractor to pull the ball bearings23 and21 from the measuring screw small22.
12.2.4 Installing seals and ball bearings OMG-020/OMG-032
Personnel qualification: o Fitter
Personal protective equipment: o Work clothing
o Protective gloves
o Safety boots
Aids: o Torque wrench
1
2
3
4
5
6
7
8
2
1. Insert the O-ring7 into the end cover2 and insert the O-ring8 into the pick up hole in the end
cover.
2. Insert the O-ring6 into the end cover4.
11
12
14
13
15
16
17
18
19
20
21
22
23
24
25
26
3. Press on the ball bearings16 and18 over the inner rings on the measuring screw large17.
4. Press on the ball bearings23 and21 over the inner ring of the ball bearing on the measuring
screw small22.
5. Slide the distance ring15 on the measuring screw large17 and press on the pole wheel14.
6. Pull the wedge lock washers12 and supporting ring13 onto the socket screw11. Ensure the cor-
rect positioning of the wedge lock washers (wedge on wedge).
7. Apply Loctite 242 to the socket screw11 and install on the measuring screw large17.
34
OIO 14en-GB Edition 2020-01
