2. In the Navigation pane, click CEC. The CEC Configuration page appears.

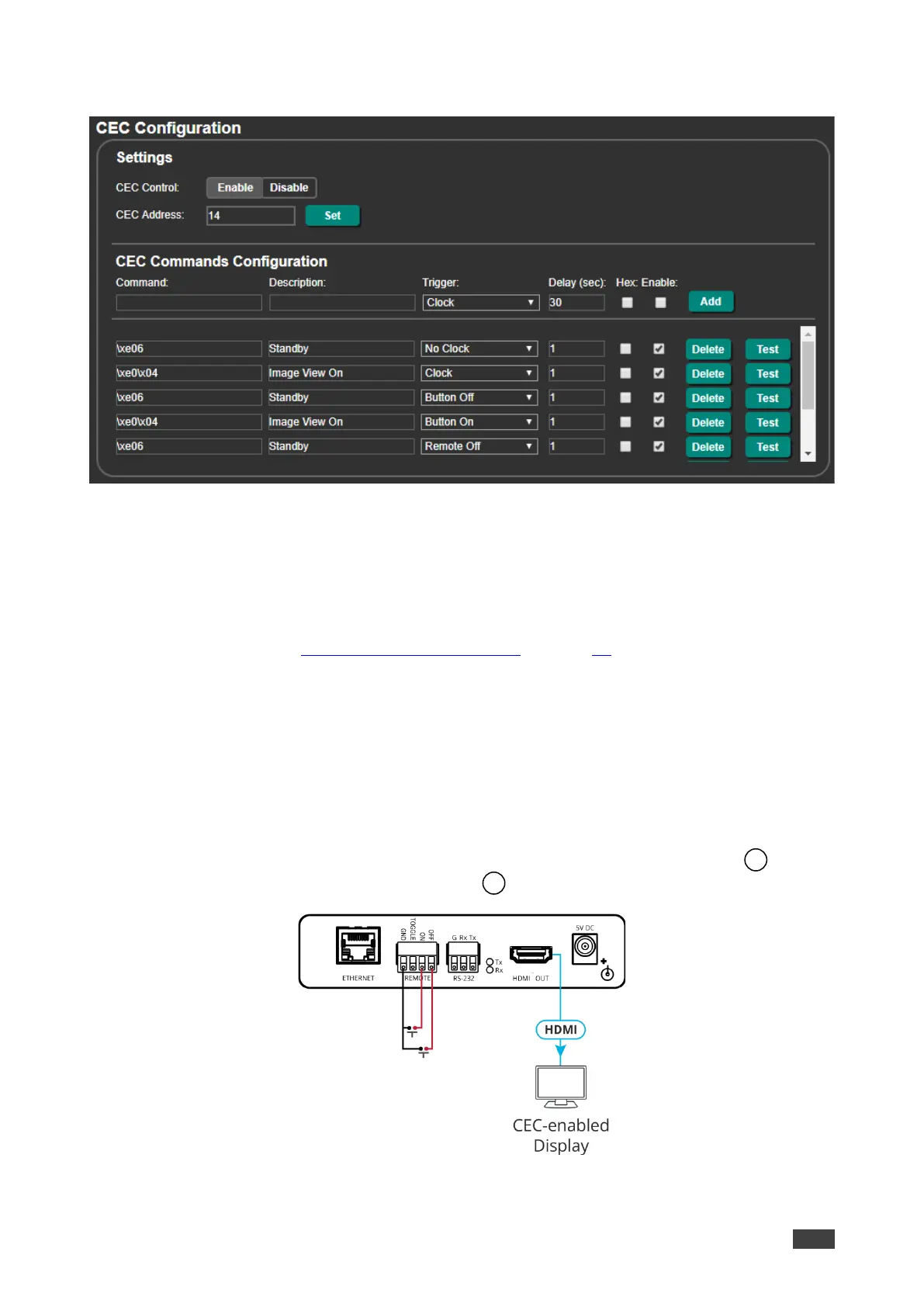

Figure 14: CEC Configuration Page – Button On and Button Off Command Configuration
3. Check that the Button On and Button Off commands are defined correctly and enabled.
4. Press ON/OFF on the front panel to turn the display on or off.
The display is controlled via ON and OFF buttons on the front panel.
For further details, see Configuring CEC Commands on page 50.
Controlling Via REMOTE ON/OFF Pins (FC-18 Sends CEC to
HDMI OUT)
You can turn the display on or off via the contact closure REMOTE ON and OFF pins or
TOGGLE pin.
To control the display using the REMOTE ON/OFF pins via HDMI:
1. Connect the REMOTE ON, OFF and GND pins (or TOGGLE and GND pins) to
remote control buttons and the HDMI port to the CEC-enabled display.
Figure 15: Sending REMOTE ON/OFF Commands via HDMI Connector
