FC-18 – Controlling the Display via FC-18
19
2. In the Navigation page, click RS-232 & Remote. The RS-232 & Remote page appears.
3. Select the behavior of the TOGGLE pin from the drop-down list.
For example, for an occupancy sensor, select a Switch closed/Switch open setting.

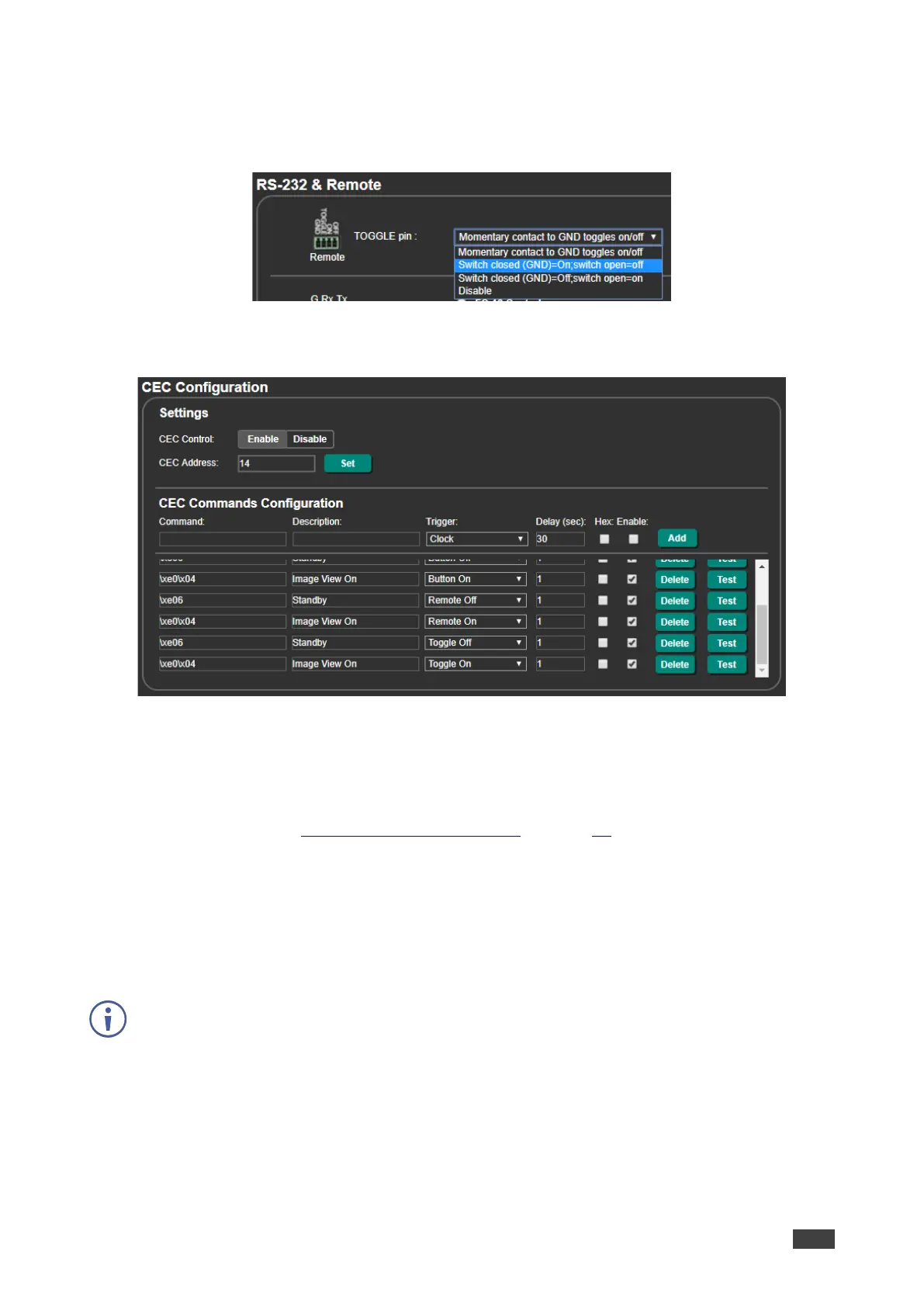

Figure 18: RS-232 & Remote Page – Setting the TOGGLE Pin
4. In the Navigation pane, click CEC. The CEC Configuration page appears.
Figure 19: CEC Configuration Page – Toggle On and Toggle Off Command Configuration
5. Check that the Toggle On and Toggle Off commands are defined correctly and enabled.
The occupancy sensor, connected to the TOGGLE pin, controls the display.
For further details, see Configuring CEC Commands on page 50.
Controlling the Display Automatically (Sending CEC to HDMI
OUT)
You can turn the display on or off automatically when an HDMI signal is present or lost via the
presence of 5V and/or clock signal on or off.
In the example shown below, when the unit detects no signal (no clock) on the HDMI input, it
turns the display off by sending the CEC OFF command (\xe06).
When the unit detects that the HDMI signal (clock) returns, it turns the display on by sending
the CEC ON command (\xe0\x04).
