TP-590Rxr - Defining the TP-590Rxr HDMI Line Receiver
4 Defining the TP-590Rxr HDMI Line Receiver

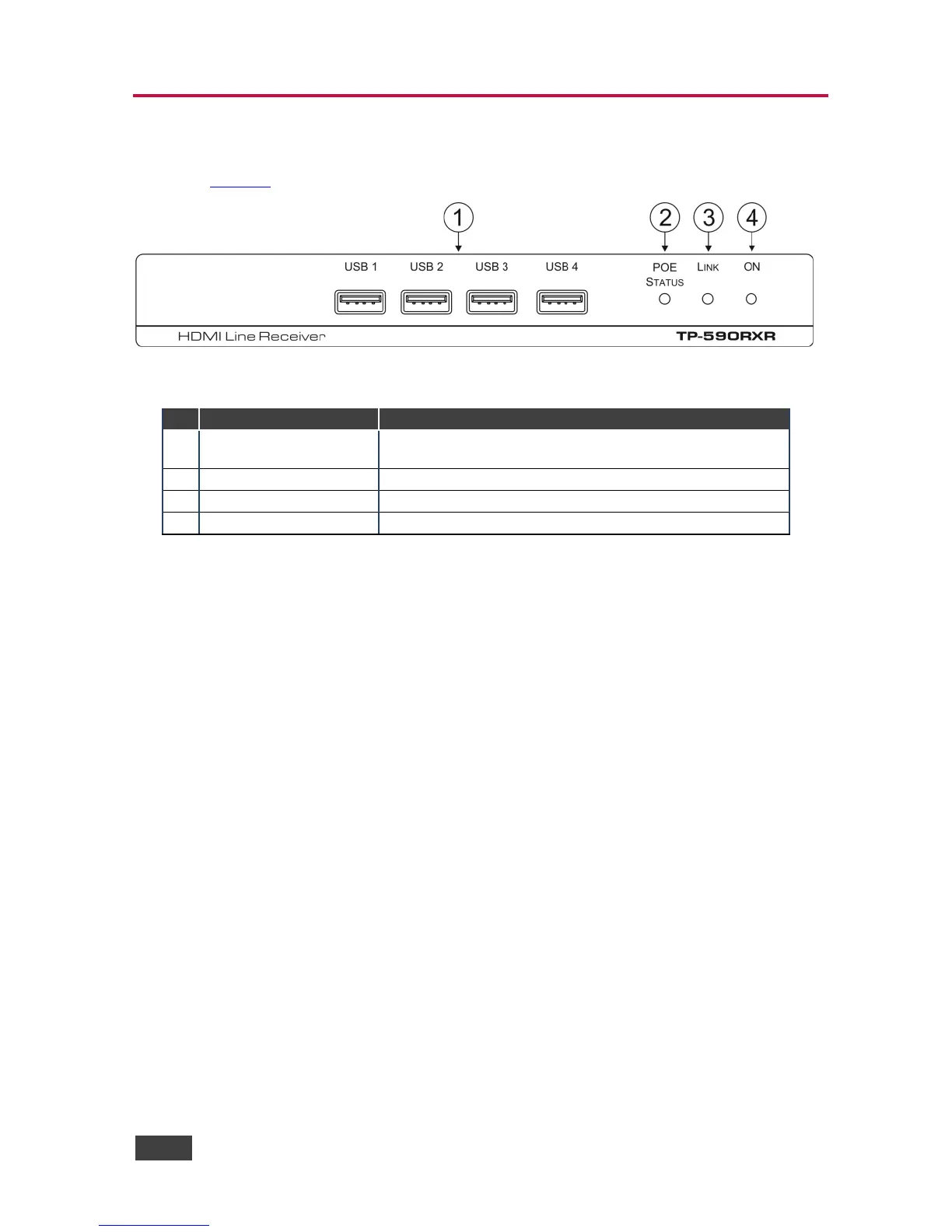

Figure 1 defines the front panel of the TP-590Rxr.
Figure 1: TP-590Rxr Front Panel
#
Feature
Function
1
USB 1~4 Connectors
Connect to the USB peripheral devices, (for example, USB
camera, computer mouse, or keyboard)
2
POE STATUS LED
Lights green when power is received over the TP connection
3
LINK LED
Lights green when the HDBT link is valid
4
ON LED
Lights green when the device receives power
