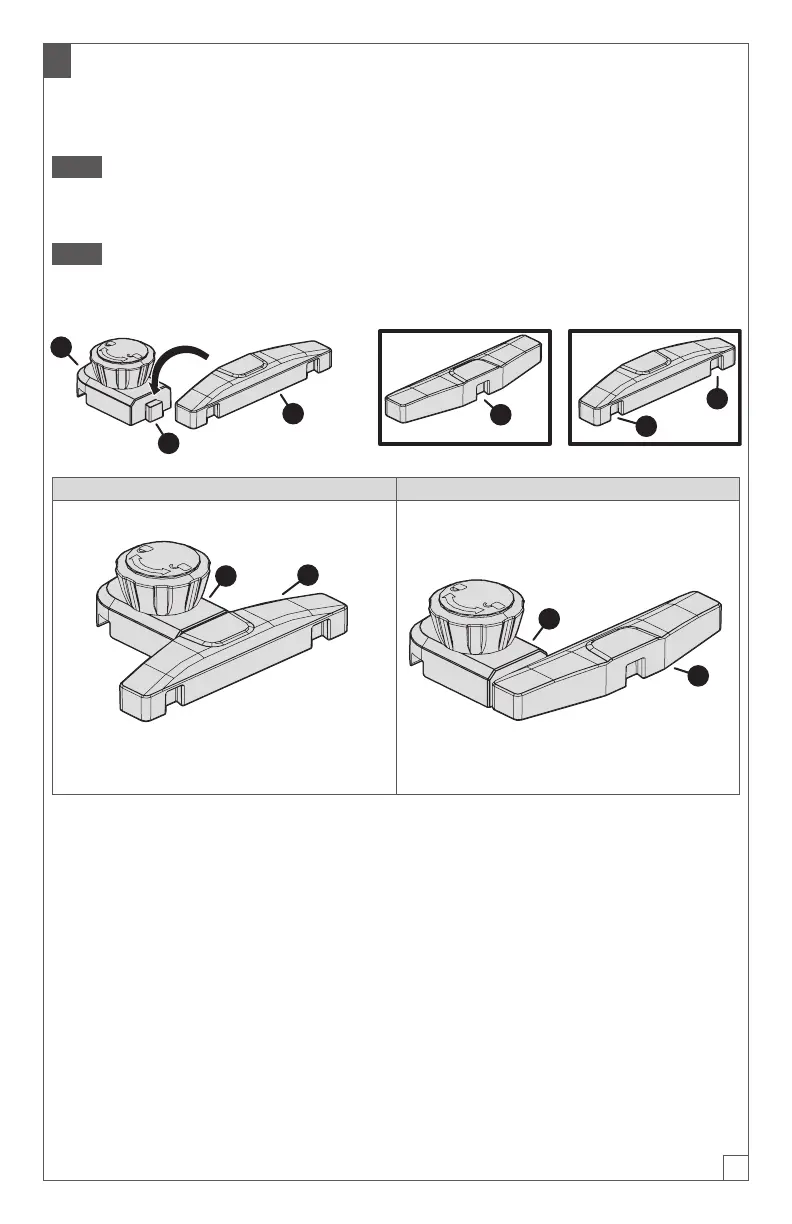

Attach the Adjustable Stop Arm to the Adjustable Stop Base
Slide a notch in the adjustable stop arm (J) down over the tab (1) on the adjustable
stop base (L) until the adjustable stop arm (J) is fully seated on the tab(1).
Note The adjustable stop arm (J) has three notches: a center notch (2) on one
side and two outer notches (3, 4) on the opposite side. Use the appropriate notch
depending on how you want to congure the adjustable stop.
Note To change the conguration of the adjustable stop, lift the adjustable stop arm
(J) off the adjustable stop base (L). Then slide a different notch of the adjustable stop
arm (J) over the tab (1) on the adjustable stop base (L).
1
J
L
2
3
4
Centered Conguration Side Conguration
Use the arm’s center notch(2)
J
L
J
L
Use either of the arm’s outer notches (3,4),
so that the arm (J) extends to one side of the
base (L)
J
L
J
L
