Drill Pocket Holes
WARNING When drilling, always ensure that the workpiece is clamped securely and
that the jig handle is pressed down to its travel limit.

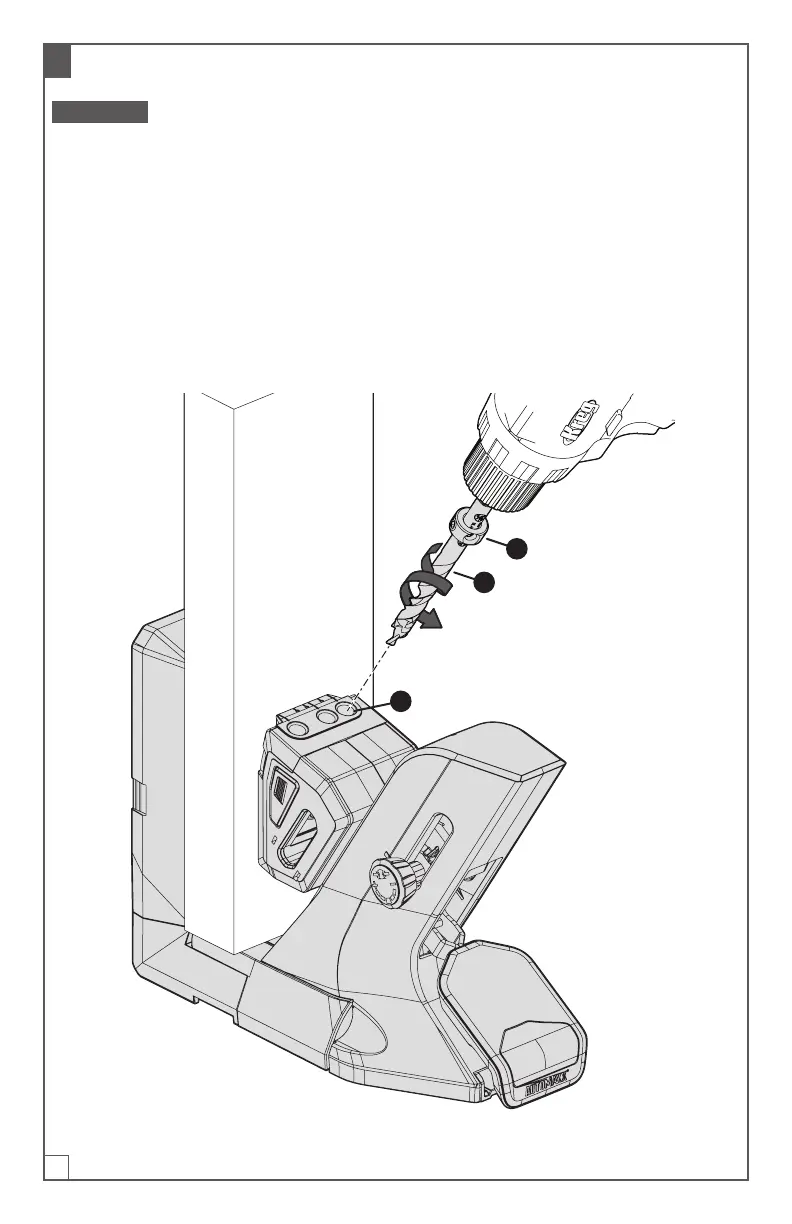

a. Place your prepared drill bit (E) with stop collar (F) into your drill.
b. Insert your drill bit (E) into the drill guide (1) and bring your drill up to speed
before contacting the workpiece to ensure correct rotation of the drill bit.
c. Drill until the stop collar (F) stops going any deeper due to contact between the
stop collar (F) and drill guide (1). Remove the drill bit (E) from the drill guide (1)
while the drill bit is still rotating.
d. When you are nished drilling pocket hole(s), lift the jig handle to release the
clamping pressure; then remove your workpiece.
E
F
1
